Value moves the world

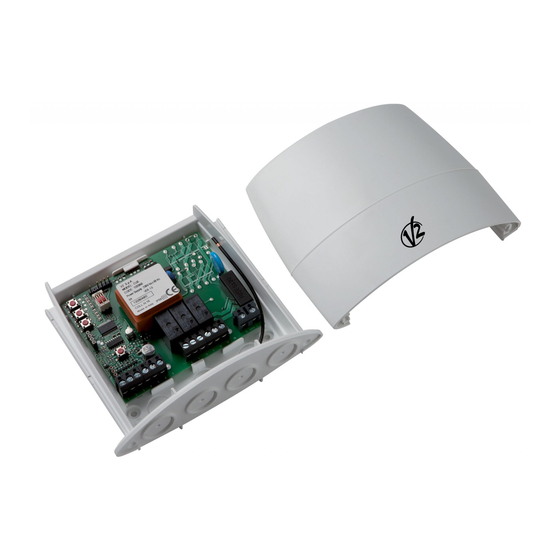

CU3
I
CENTRALE DI COMANDO DA
ESTERNO PER AUTOMAZIONI DI
TENDE O TAPPARELLE
GB
EXTERNAL CONTROL UNIT FOR
THE AUTOMATION OF AWNINGS
OR ROLLING SHUTTERS
F
ARMOIRE DE COMMANDE
D'EXTÉRIEUR POUR
L'AUTOMATISATION DE STORES
ET VOLETS ROULANTS
E
CUADRO DE MANIOBRAS
PARA TOLDOS Y PERSIANAS
DOMESTICAS CON MOTOR
TUBULAR
D
AUSSENSTEUERUNG ZUR
AUTOMATION VON MARKISEN
UND ROLLLÄDEN
NL
EXTERNE BESTURINGSEENHEID
VOOR DE AUTOMATISERING VAN
ZONWERINGEN OF ROLLUIKEN
IL 238
EDIZ. 06/04/2017
Advertisement
Related Manuals for V2 CU3
Summary of Contents for V2 CU3
- Page 1 Value moves the world IL 238 EDIZ. 06/04/2017 CENTRALE DI COMANDO DA CUADRO DE MANIOBRAS ESTERNO PER AUTOMAZIONI DI PARA TOLDOS Y PERSIANAS TENDE O TAPPARELLE DOMESTICAS CON MOTOR TUBULAR EXTERNAL CONTROL UNIT FOR THE AUTOMATION OF AWNINGS AUSSENSTEUERUNG ZUR OR ROLLING SHUTTERS AUTOMATION VON MARKISEN UND ROLLLÄDEN...
- Page 2 - 16 -...
- Page 3 EU DECLARATION OF CONFORMITY Max. motor power: 500 W Fuse rating: 5 A Protection level: IP55 V2 S.p.A. hereby declare that CU3 products conform to the Working temperature: 20 ÷ +60 °C essential requirements established in the following directives: • 2014/30/UE (EMC Directive) •...
-
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS WIND RAIN SENS TEMP WARNING: insert the (optional) receiver as F = 5A shown in the figure. Incorrect insertion can seriously damage the receiver. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 8 9 10 11 12 13 14 8 9 10 11... - Page 5 SETTING THE OPERATIONAL LOGIC SENSOR LEVELS The sensors may be set to different levels depending on the By simply altering the dip-switches located on the card. it is specific needs of each installation. The sensor level may be possible for the control unit to use several different operational examined by means of the 5 dedicated LEDs located on the card.
- Page 6 TRANSMITTERS OF THE RANGE STORAGE OF THE TRANSMITTERS PROTEO / DUO PROTEO / DUO Transmitters may be memorised in two different ways: Using a transmitter of the range PROTEO / DUO it is possible changing the functions of the control unit controlling the tubular 1.
- Page 7 DELETING ALL TRANSMITTERS STORING OF THE LEVEL OF MEMORISED INTERVENTION OF THE WIND SENSOR (SWITCH 7) Transmitters may be deleted in two different ways: 1. By means of the MOT push-button WARNING: to make the awning close, the wind sensor has 2.
- Page 8 PROGRAMMING OF THE LEVEL OF PROGRAMMING OF THE LEVEL OF INTERVENTION OF THE SUN SENSOR TEMPERATURE (SWITCH 10) (SWITCH 8) The temperature can be set on 5 levels, under which the sun sensor must not open the awning, even if the light intensity has WARNING: to make the awning open the sun sensor has exceeded the level set by switch 8.
- Page 9 ARTEMIS SERIES TRANSMITTERS FAST PROGRAMMING Using a transmitter of the ARTEMIS series you can change the RAPID TRANSMITTER DATA STORAGE functions of the control unit that drives the tubular motor. CAUTION: The data storage of the first transmitter determines the direction of motion of the motor. CAUTION: If the awning has a casing carry out the data storage of the first remote control by following the procedure “TRANSMITTER DATA STORAGE”...
-
Page 10: Advanced Programming
ADVANCED PROGRAMMING TRANSMITTER DATA STORAGE To perform ADVANCED programming it is necessary to activate CAUTION: The data storage of the first transmitter the programming by following one of the following procedures. determines the direction of motion of the motor. To store a transmitter on a virgin control untit proceed as ACTIVATION OF PROGRAMMING follows: 1. - Page 11 PROGRAMMING THE WIND SENSOR 4. Press the UP+DOWN keys until the motor moves in jerks which confirms it is entering the programming phase. INTERVENTION THRESHOLD The number of jerks made by the motor corresponds to the level currently set: CAUTION: to trigger the closing of the sunshade, the wind 1 jerk = level 1 = 2 klux sensor must detect a value greater than the set threshold for at 2 jerks = level 2 = 5 klux...
- Page 12 TRANSMITTERS OF THE RANGE STORAGE OF THE TRANSMITTERS ADLER ADLER Transmitters may be memorised in two different ways: Using a transmitter of the range ADLER it is possible changing the functions of the control unit controlling the tubular motor. 1. By means of the MOT push-button 2.
- Page 13 DELETING ALL TRANSMITTERS STORING OF THE LEVEL OF INTERVENTION OF THE WIND SENSOR MEMORISED WARNING: to make the awning close, the wind sensor has Transmitters may be deleted in two different ways: to detect a value higher then the set threshold value for at least 1.
- Page 14 PROGRAMMING OF THE LEVEL OF PROGRAMMING OF THE LEVEL OF INTERVENTION OF THE SUN SENSOR TEMPERATURE The temperature can be set on 5 levels, under which the sun WARNING: to make the awning open the sun sensor has sensor must not open the awning, even if the light intensity has to detect a value higher then the set threshold value for at least 8 exceeded the level set.
- Page 15 TRANSMITTERS OF THE RANGE STORAGE OF THE TRANSMITTERS DEV-T1 DEV-T1 Transmitters may be memorised in two different ways: Using a DEV-T1 series transmitter it is possible to activate the transmitter storage. 1. By means of the MOT push-button 2. By means of the transmitter (P4 push-button) WARNING: The first transmitter has to be memorized following the procedure (storage by push-button MOT) STORAGE BY MEANS OF THE...
