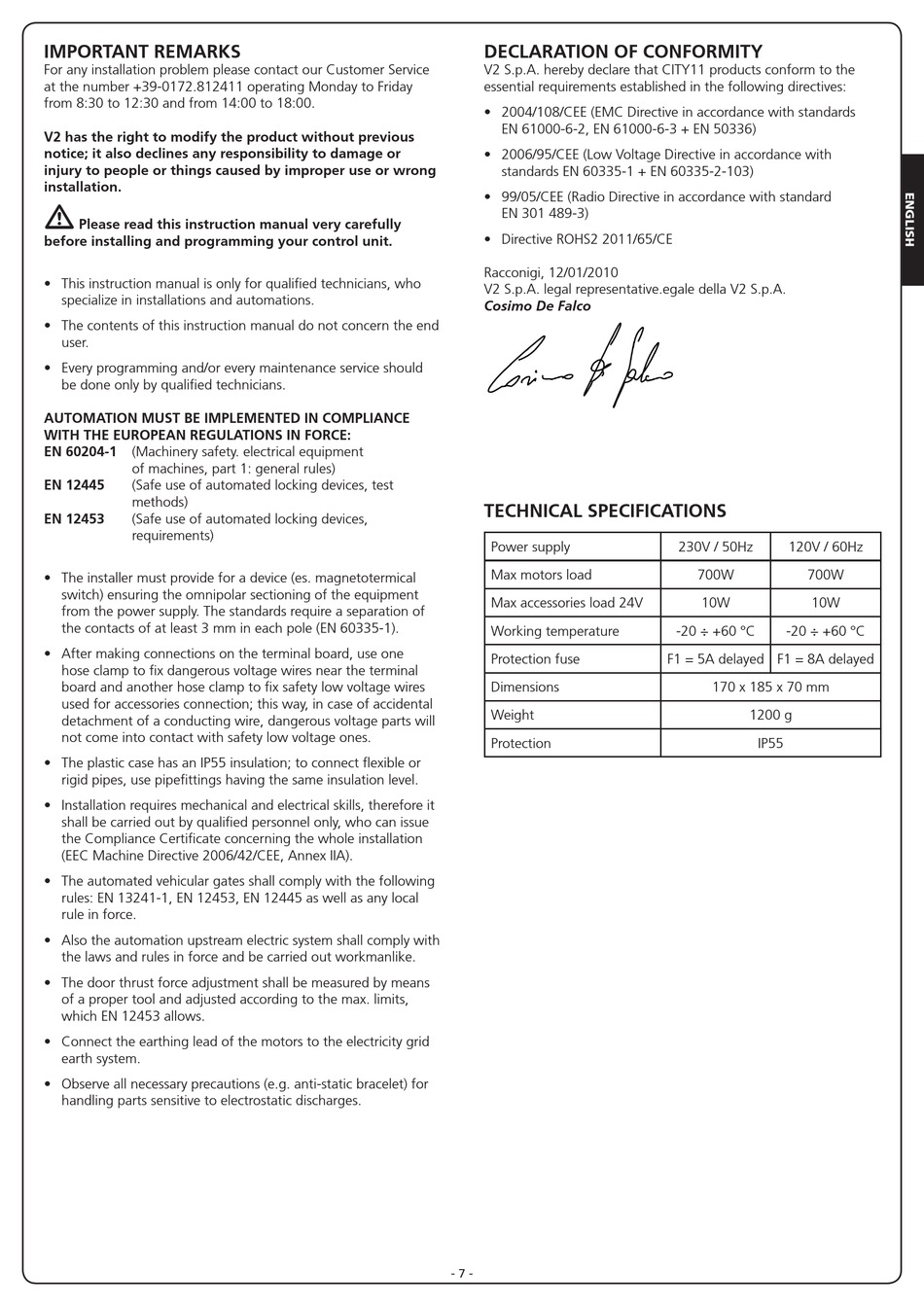

IMPORTANT REMARKS
For any installation problem please contact our Customer Service
at the number +39-0172.812411 operating Monday to Friday
from 8:30 to 12:30 and from 14:00 to 18:00.
V2 has the right to modify the product without previous
notice; it also declines any responsibility to damage or
injury to people or things caused by improper use or wrong
installation.
m
Please read this instruction manual very carefully
before installing and programming your control unit.
• This instruction manual is only for qualified technicians, who
specialize in installations and automations.
• The contents of this instruction manual do not concern the end
user.
• Every programming and/or every maintenance service should
be done only by qualified technicians.
AUTOMATION MUST BE IMPLEMENTED IN COMPLIANCE
WITH THE EUROPEAN REGULATIONS IN FORCE:
EN 60204-1 (Machinery safety. electrical equipment
of machines, part 1: general rules)
EN 12445 (Safe use of automated locking devices, test
methods)
EN 12453 (Safe use of automated locking devices,
requirements)
• The installer must provide for a device (es. magnetotermical
switch) ensuring the omnipolar sectioning of the equipment
from the power supply. The standards require a separation of
the contacts of at least 3 mm in each pole (EN 60335-1).
• After making connections on the terminal board, use one
hose clamp to fix dangerous voltage wires near the terminal
board and another hose clamp to fix safety low voltage wires
used for accessories connection; this way, in case of accidental
detachment of a conducting wire, dangerous voltage parts will
not come into contact with safety low voltage ones.
• The plastic case has an IP55 insulation; to connect flexible or
rigid pipes, use pipefittings having the same insulation level.
• Installation requires mechanical and electrical skills, therefore it
shall be carried out by qualified personnel only, who can issue
the Compliance Certificate concerning the whole installation
(EEC Machine Directive 2006/42/CEE, Annex IIA).
• The automated vehicular gates shall comply with the following
rules: EN 13241-1, EN 12453, EN 12445 as well as any local
rule in force.
• Also the automation upstream electric system shall comply with
the laws and rules in force and be carried out workmanlike.
• The door thrust force adjustment shall be measured by means
of a proper tool and adjusted according to the max. limits,
which EN 12453 allows.
• Connect the earthing lead of the motors to the electricity grid
earth system.
• Observe all necessary precautions (e.g. anti-static bracelet) for
handling parts sensitive to electrostatic discharges.
DECLARATION OF CONFORMITY
V2 S.p.A. hereby declare that CITY11 products conform to the
essential requirements established in the following directives:
• 2004/108/CEE (EMC Directive in accordance with standards
EN 61000-6-2, EN 61000-6-3 + EN 50336)
• 2006/95/CEE (Low Voltage Directive in accordance with
standards EN 60335-1 + EN 60335-2-103)
• 99/05/CEE (Radio Directive in accordance with standard
EN 301 489-3)
• Directive ROHS2 2011/65/CE
Racconigi, 12/01/2010
V2 S.p.A. legal representative.egale della V2 S.p.A.
Cosimo De Falco
TECHNICAL SPECIFICATIONS
Power supply
Max motors load
Max accessories load 24V
Working temperature
Protection fuse
Dimensions
Weight
Protection
- 7 -
230V / 50Hz
120V / 60Hz
700W
700W
10W
10W
-20 ÷ +60 °C
-20 ÷ +60 °C
F1 = 5A delayed F1 = 8A delayed
170 x 185 x 70 mm
1200 g
IP55

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CITY11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for V2 CITY11

  • Page 1 • 2004/108/CEE (EMC Directive in accordance with standards EN 61000-6-2, EN 61000-6-3 + EN 50336) V2 has the right to modify the product without previous notice; it also declines any responsibility to damage or • 2006/95/CEE (Low Voltage Directive in accordance with injury to people or things caused by improper use or wrong standards EN 60335-1 + EN 60335-2-103) installation.
  • Page 2: Installation

    DESCRIPTION OF THE CONTROL UNIT PHOTOCELLS The CITY11 control unit is an innovative V2 product guaranteeing The control unit has a 24VAC power supply for photocells with safety and reliability for swing gate automation. switch normally closed, and can perform an operational test The CITY11 design has been aimed at creating a product which before to starting the gate opening procedure. adapts to suit all needs, thus obtaining an extremely versatile control unit satisfying all the necessary requirements for a The photocell can be used with two settings: functional and efficient installation. 1. Photocell always active: • 230V - 50Hz or 120V - 60Hz power supplies, depending on the Intervention of the photocell during opening or closing causes model, for 2 single phase motors (700W global). the gate to stop. When the photocell restores, the gate re- opens completely. • Output for 12V electric lock. 2. Photocell NOT active during opening: • Input for keyswitch or push-button. Intervention of the photocell during opening is ignored. Intervention of the photocell during closing causes the gate to • Input for safety photocell.
  • Page 3: Courtesy Light

    COURTESY LIGHT PEDESTRIAN START This output has a normally-open clean contact relay which closes With the gate closed, the pedestrian start command causes partial for approx. 1 second at the start of an opening phase. opening (approx. half way) of the gate leaf connected to motor 1. This switch may be used to activate a courtesy light timer (max. Subsequent pedestrian start commands will function according to load: 230V - 4 A). step logic. PLEASE NOTE: If there is no timer, the courtesy light can be During a pedestrian cycle, the start command results in the controlled using channel 4 of receiver MR: bistable or timer complete opening of both gate leaves. programmable channel (read the instructions for the receiver MR thoroughly). Connect the pedestrian start input control device cables between terminals L2 and L6 on the control unit. The switch is on terminals K1 and K2. STOP BLINKER The STOP input is intended for devices with the switch normally The control unit provides for the use of a 230V - 40W or closed. 120V - 40W blinker with built-in intermittence. The STOP command causes the immediate stop of the gate. A subsequent START command activates the gate in the opposite Connect the cables to terminals K9 and K10. direction of movement.
  • Page 4: Electrical Connection

    ELECTRICAL CONNECTION POWER WORK PAUSE DELAY 1 2 3 4 5 6 7 8 9 10 11 12 mains overload START STOP EDGE START P. PHOTO L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 N mains L Antenna K1 - K2...
  • Page 5: Adjustment Of The Power And Operational Times

    ADJUSTMENT OF THE POWER AND CABLE GLAND ASSEMBLY The casing can accept 4 cable glands in the special easy-break OPERATIONAL TIMES housings. The type of cable gland is indicated in the figure. The power and operating times may be adjusted by means of 4 PLEASE NOTE: trimmers located on the control unit: • Remove the electronic circuit board before drill the casing. PLEASE NOTE: it is recommended that operating times • Drill the container using a suitably sized cutter, according to the be set with the slow down function disabled (DIP 5 OFF). dimensions of the cable gland.
  • Page 6: Programming The Operational Logic

    PROGRAMMING THE OPERATIONAL LOGIC It is possible for the control unit to use several different operational logic states, by simply moving the dip-switches located on the card. The functions associated with each individual dip-switch are listed below. FUNCTION SETTING DESCRIPTION Enabled The flashing light lights up for 3 sec. before the motors are started in opening. Pre-flashing, functions After 1 second of pre-flash, the backlash is activated for 2 seconds. backlash, After 0.5 seconds of backlash the electric lock is activated electric lock Preflashing disabled. Water hammer disabled. advance 0.3 seconds of electric lock advance Enabled The gate is closed automatically after the period of time set by the PAUSE trimmer Automatic closure Disabled On completion of the opening step, the gate remains open. It is necessary to instruct closure with another START command Not accepted Any START command issued during opening is ignored Start during opening Accepted Any START command issued during opening is accepted Inversion Start during opening causes closure. Start during closure causes opening. Operational logic Step Commands subsequent to starting cause, in order: open...
  • Page 7: Conseils Importants

    8:30 à 12:30 et de 14:00 heures à 18:00 heures. au • 2004/108/CEE (Directive EMC suivant les normes numéro +39-0172.812411 EN 61000-6-2, EN 61000-6-3 + EN 50336) V2 S.p.A. se réserve le droit d’apporter d’éventuelles • 2006/95/CEE (Directive Basse tension suivant les normes modifications au produit sans préavis; elle décline en outre EN 60335-1 + EN 60335-2-103) toute responsabilité pour tous types de dommages aux • 99/05/CEE (Directive Radio suivant les normes EN 301 489-3)
