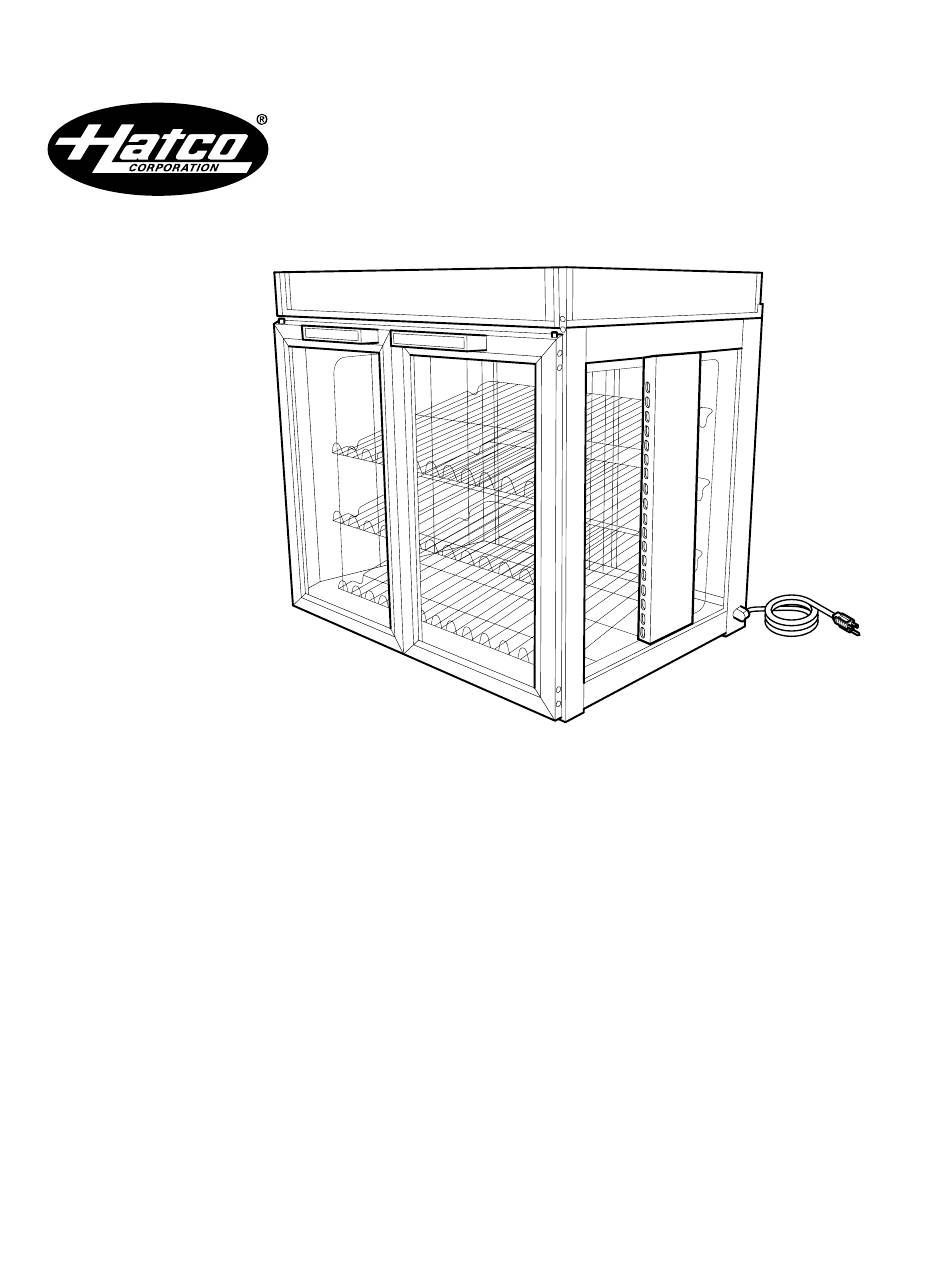

- Page 1 REPLACEMENT PARTS LIST UPDATE AFST SERIES UNITS WITH SLIDING DOORS Model No. AFST-2X I&W # 07.05.085.00 H ATCO CORPORATION MILW AUKEE, WI 53234 U.S.A. (800) 558-0607 (414) 671-6350...
- Page 2 NOTE: Instructions on how to replace door cable listed on back page.
- Page 3 ITEM DESCRIPTION PART NO. QTY. Bracket Assembly-Pulley 04.17.464.00 Cable Connector Assembly R04.17.472.00 Idler Pulley 04.17.477.00 Door Cable w/Fitting 04.17.480.00 Counter Balance Assembly R04.17.473.00 Inner Door Assembly R00.01.0041.00 Outer Door Assembly R00.01.0042.00 Thumb Screws 05.04.445.00 NOTE: Instructions on how to replace door cable listed on back page.
- Page 4 CAUTION: Do not remove set screw. Remove cable from unit. Reinstall new cable in reverse order. Make sure cable is in “notch” when replacing corner posts. HATCO CORPORATION P.O. Box 340500, Milwaukee, WI 53234-0500 U.S.A. (800) 558-0607 (414) 671-6350 Parts & Service Fax (800) 690-2966 Int’l.
