9: Replacing GSN Parts
Slide the bundled wires out of the
4
strain relief retainer. Remove the
electrical tape and clear plastic
tubing from around the wires so that
the wires all hang loose individually
(Figure 9-6). Save the tubing with
the other parts. If you are working
with an infant Net, work carefully
around the soldered wires.
Remove the flat black end that is
5
opposite the strain relief by
loosening the screw from the
bottom. This will allow you more
room to work in the connector
(Figure 9-7).
U se the pinout scheme in
6
Appendix C, "GSN Pinouts,"
to locate the correct contact
(Figure 9-8).
92

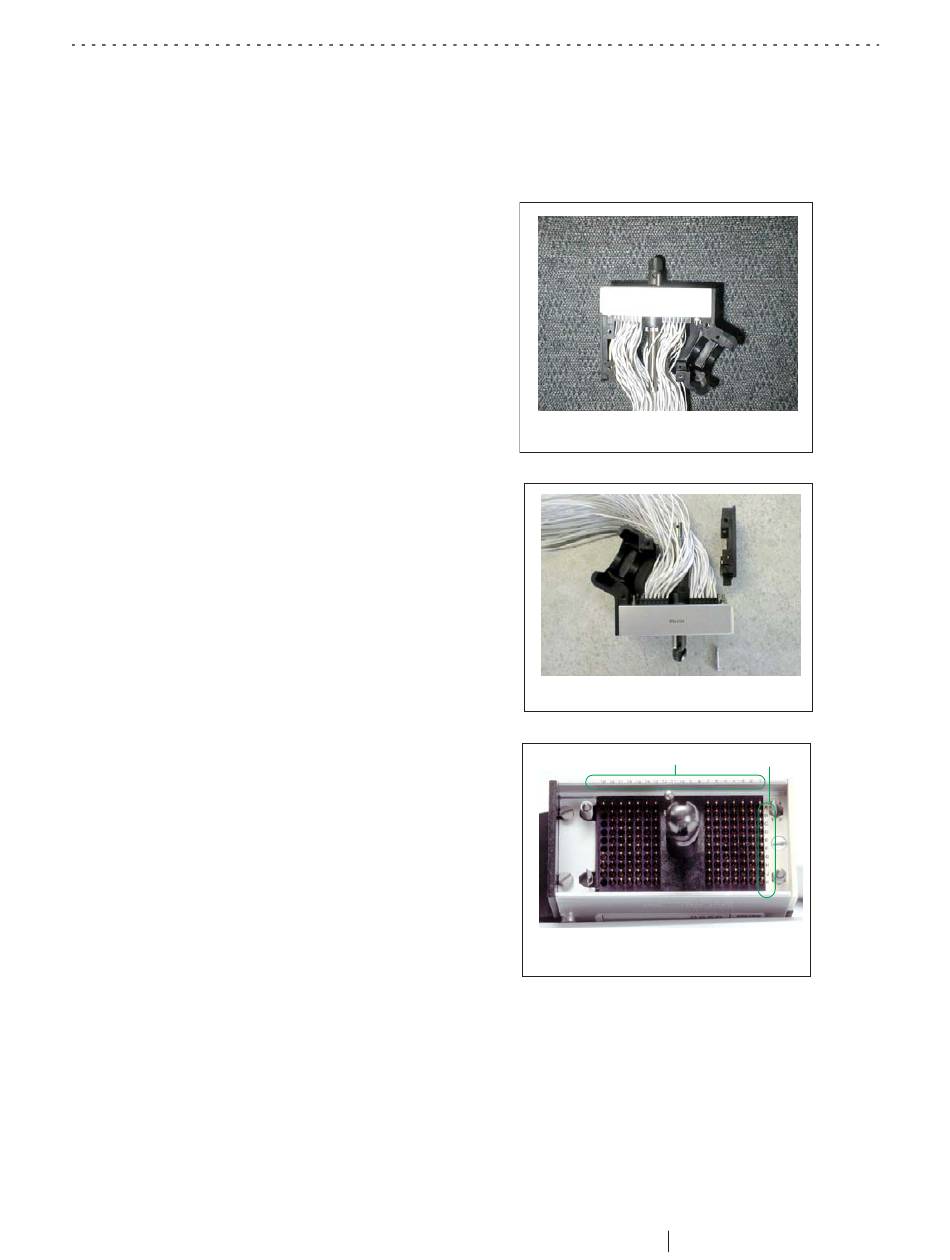

Figure 9-6. Let the wires hang loose
Figure 9-7. Remove the flat black end
Figure 9-8. Note the numbers
and letters marked on the connector
Geodesic Sensor Net Technical Manual
Letters
Numbers
S-MAN-200-GSNR-001 • January 31, 2007
