Each electrode pellet is set into the bore of the HydroCel Hydrating Skin Interface
Chamber, a soft, plastic pedestal (Figure 2-6).
If the HCGSN has sponge inserts, then each electrode is surrounded by a sponge that
is wetted with liquid electrolyte during operation. With this Net, the wetted sponge
protrudes slightly from the one end of the pedestal and the lead wire emerges from
the base of the electrode pellet.
By definition, a sensor (Figure 2-7) consists of a pedestal and an electrode.
Sponge, pedestal, and electrode pellet
Cutting the pedestal assembly of the sensor down the middle makes its construction
easier to see (Figure 2-8).
Geodesic Sensor Net Technical Manual
Electrode
pellet

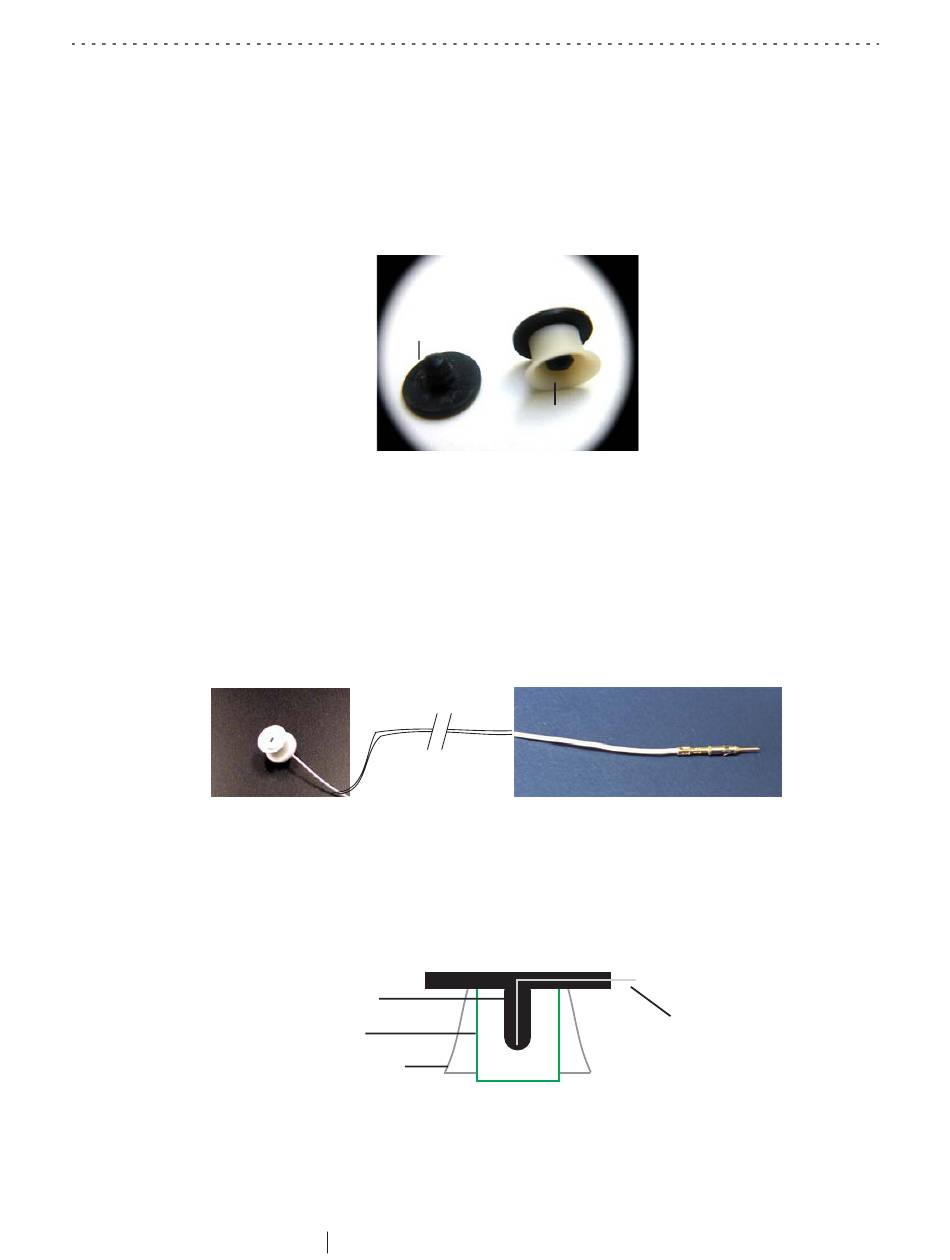

Figure 2-6. Pedestal and electrode
Figure 2-7. Sensor connected by wire to pin
Electrode
pellet
Sponge
Pedestal wall
Figure 2-8. Sensor cut-away view
S-MAN-200-GSNR-001 • January 31, 2007
Pedestal
Hypertronics pin
Lead wire
2: HCGSN
35
