Remove The Handle On The Hypertronics Plug; Remove The Hood; Remove The Screws And Slide The Clamp Out - Geodesic Sensor Net Technical Manual

Remove Electrode from Plug
Remove the handle on the
1
Hypertronics plug using a 1.5 mm.
Allen wrench (Figure 9-3).
Remove the six screws that secure
2
the hood. Gently remove the hood
(Figure 9-4) and place in a small
plastic bag along with the screws
and the handle.
Remove the two long screws that
3
hold the strain relief clamp in place
and slide the clamp out of the
retainer (Figure 9-5). Save the screws
and the clamp in the bag with the
other parts.
Geodesic Sensor Net Technical Manual
S-MAN-200-GSNR-001 • January 31, 2007
9: Replacing GSN Parts

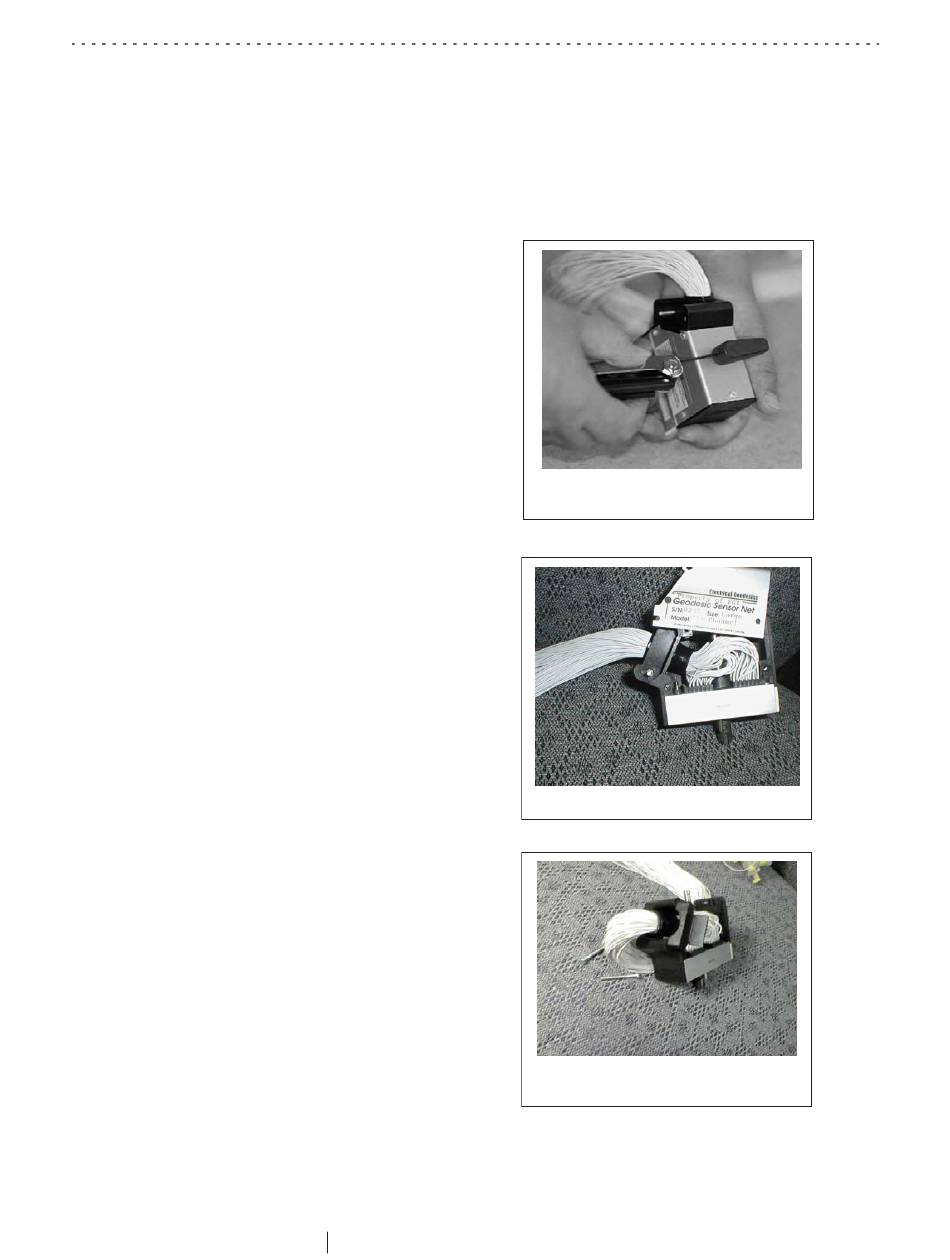

Figure 9-3. Remove the handle
on the Hypertronics plug
Figure 9-4. Remove the hood
Figure 9-5. Remove the screws
and slide the clamp out
