Pinout Tables

Listed in Table C-1 are the pinout schemes contained in this appendix.
Table
Table C-2
Table C-3
Note: In the following table, sensors 65–128 and their corresponding pin numbers
apply only to the 128-channel Net. These sensors/pins are absent in the case of the
64-channel Net. For the 32-channel Net, sensors 33–128 and their corresponding pin
numbers are absent.
Sensors
1–10
1
2
3
4
5
6
7
8
9
10
Geodesic Sensor Net Technical Manual
Table C-1. Pinout tables
Pinout

Sensor to 32-, 64-, and 128-pin plug

Sensor to 256-pin plug

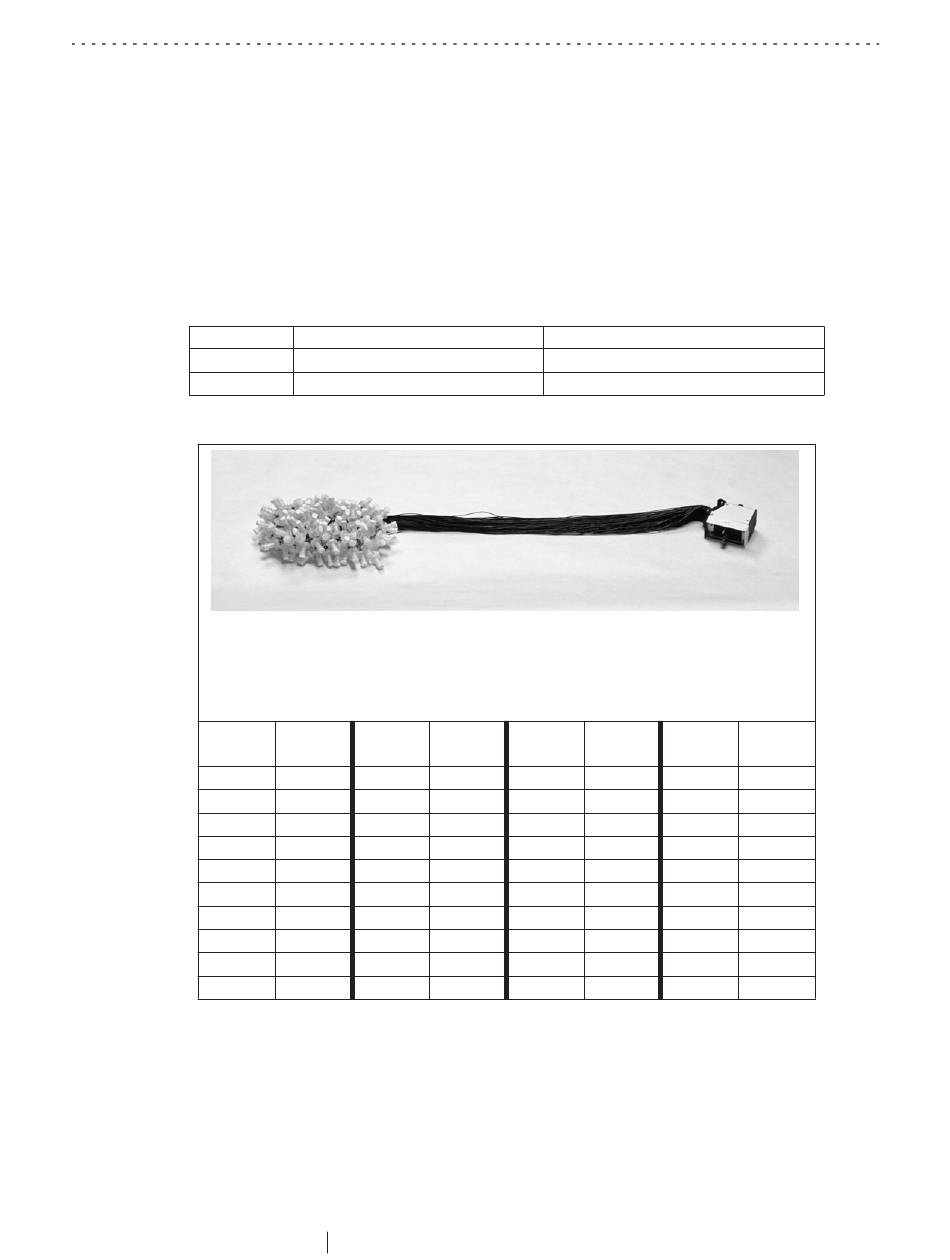

Table C-2. Sensor to 32-, 64-, and 128-pin plug
128-channel GSN
Sensors
Pin 11–20 Pin
1A 11 2A
1B 12 2B
1C 13 2C
1D 14 2D
1E 15 2E
1F 16 2F
1G 17 2G
1H 18 2H
1I 19 2J
1J 20 2K
S-MAN-200-GSNR-001 • January 31, 2007
Comment
Sensor number to Hypertronics pin number
Sensor number to Hypertronics pin number
Sensors Sensors
21–30 Pin 31–40
21 3A 31
22 3B 32
23 3C 33
24 3D 34
25 3E 35
26 3F 36
27 3G 37
28 3H 38
29 3J 39
30 3K 40
C: GSN Pinouts
Pin
4A
4B
4C
4D
4E
4F
4G
4H
4J
4K
133
