THANK YOU

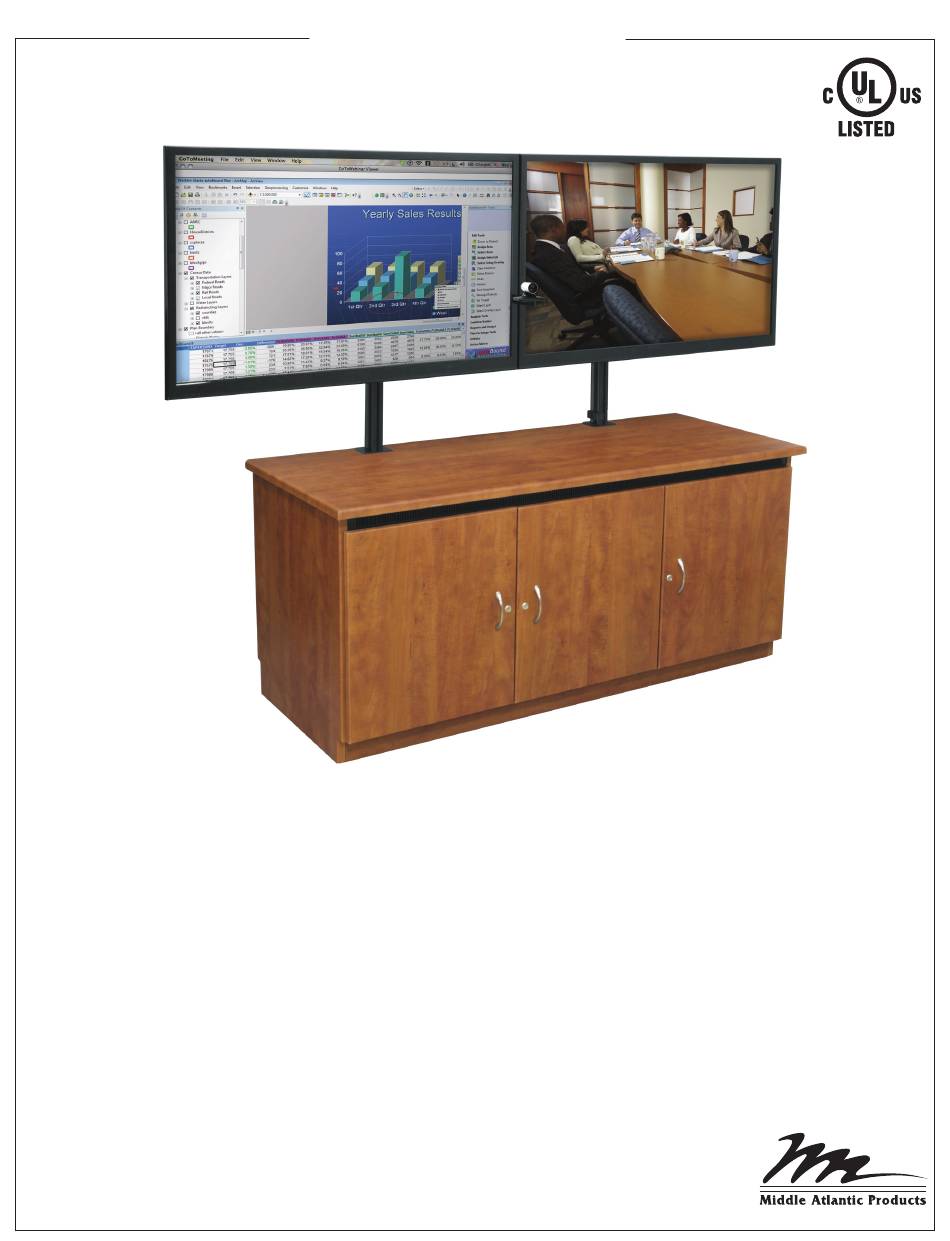

Thank you for purchasing the C5MM1 Series Universal Mount. Please read these instructions
thoroughly before installing this product.
PRODUCT FEATURES

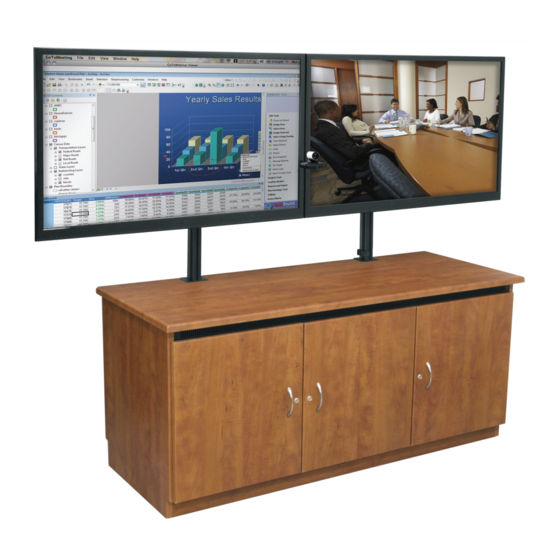

- Safely and easily mounts large format monitors to C5 / C5-D Credenza
- Proprietary extruded uprights for a sleek appearance
- Structural members made from heavy-duty 11 gauge steel
- Fully adjustable in height, with laser cut increments for precise adjustment
- Cable management clips included
installation instructions
C5MM1 Series
UNIVERSAL MONITOR MOUNT
I-00559
Rev C
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Middle Atlantic Products C5MM1 Series
Summary of Contents for Middle Atlantic Products C5MM1 Series
- Page 1 C5MM1 Series UNIVERSAL MONITOR MOUNT THANK YOU Thank you for purchasing the C5MM1 Series Universal Mount. Please read these instructions thoroughly before installing this product. PRODUCT FEATURES - Safely and easily mounts large format monitors to C5 / C5-D Credenza...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS WARNING! ANTI-TIP FEET MUST BE INSTALLED - FAILURE TO DO SO COULD RESULT IN PROPERTY DAMAGE, SERIOUS PERSONAL INJURY, OR DEATH. WARNING: A WARNING ALERTS YOU TO A SITUATION THAT COULD RESULT IN SERIOUS PERSONAL INJURY CAUTION! SAFETY MEASURES MUST BE PRACTICED OR DEATH.
- Page 3 HARDWARE/ITEMS SUPPLIED (Continued) M4 x 16 (Qty 8) (Qty 4) M4 x 25 Thread Depth Indicator M5 x 12 (Qty 8) (Qty 1) M5 x 16 (Qty 6) M5 x 20 (Qty 6) Upper Mounting Plates (Qty 2) (Qty 4) Horizontal Mounting Bracket M5 x 25 (For C5MM1-4270S -or-...
- Page 4 C5 3-BAY Center Bar C5 INSTALLATION Machine Screws (2) Supports (2) 1/4”-20 1) 3-BAY C5 CREDENZA ONLY: Install (2) C5 3-BAY center bar supports using (2) 1/4”-20 machine screws and (2) 1/4”-20 flange nuts as shown. (FIGURE A) 2) Remove machine screws at rear of C5 credenza as shown using provided 1/8”...
- Page 5 C5-D INSTALLATION 1) Install anti-tip feet using (4) 10-32 x 3/8” thread forming screws as shown (5/16” wrench required). Adjust feet so they touch floor. (FIGURE F, FIGURE G) 2) Place (2) C5-D center bar supports on C5-D credenza, with threaded mounting holes facing rear of credenza.
- Page 6 C5 / C5-D INSTALLATION Columns (2) 1) Position upper mounting plates over 1/2”-13 machine screws on C5 / C5-D Top Surface and secure threaded Threaded pins onto machine screws. (FIGURE K) Pins (2) Tighten machine screws and threaded pins to 40 ft-lbs. Use adjustable wrench on flats of threaded pins.
- Page 7 C5 / C5-D INSTALLATION (Continued) 8) Tighten set screws (4 places) using 1/8” allen wrench. (FIGURE L) 9) Secure horizontal mounting bracket to columns using (4) 5/16”-18 machine bolts. Tighten bolts to 15 ft-lbs. DO NOT OVERTIGHTEN. (FIGURE O) Horizontal Mounting Bracket Machine Bolts (4) 5/16”-18 TIGHTEN TO 15 FT-LBS FIGURE O...
- Page 8 C5 / C5-D INSTALLATION (Continued) Dimples (Face Up) Mounting Screw Universal Washer Mounting Bracket Flat Panel Nylon Spacer Mount Point Attaching Vertical Mounting Brackets to Flat Panel NOTE: Be sure to observe the “up” arrow on each vertical mounting bracket to maintain the proper orientation of the flat panel.
- Page 9 C5 / C5-D INSTALLATION (Continued) Vertical Mounting Bracket Hanging the Flat Panel NOTE: This section requires two people. Do not release your flat panel until you Hook are certain that the top hook of each vertical mounting bracket is securely seated on the upper rail of the horizontal mounting bracket.
- Page 10 WARRANTY Middle Atlantic Products (the "Company") warrants the C5MM1 Series Universal Monitor Mount to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product. The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and...
