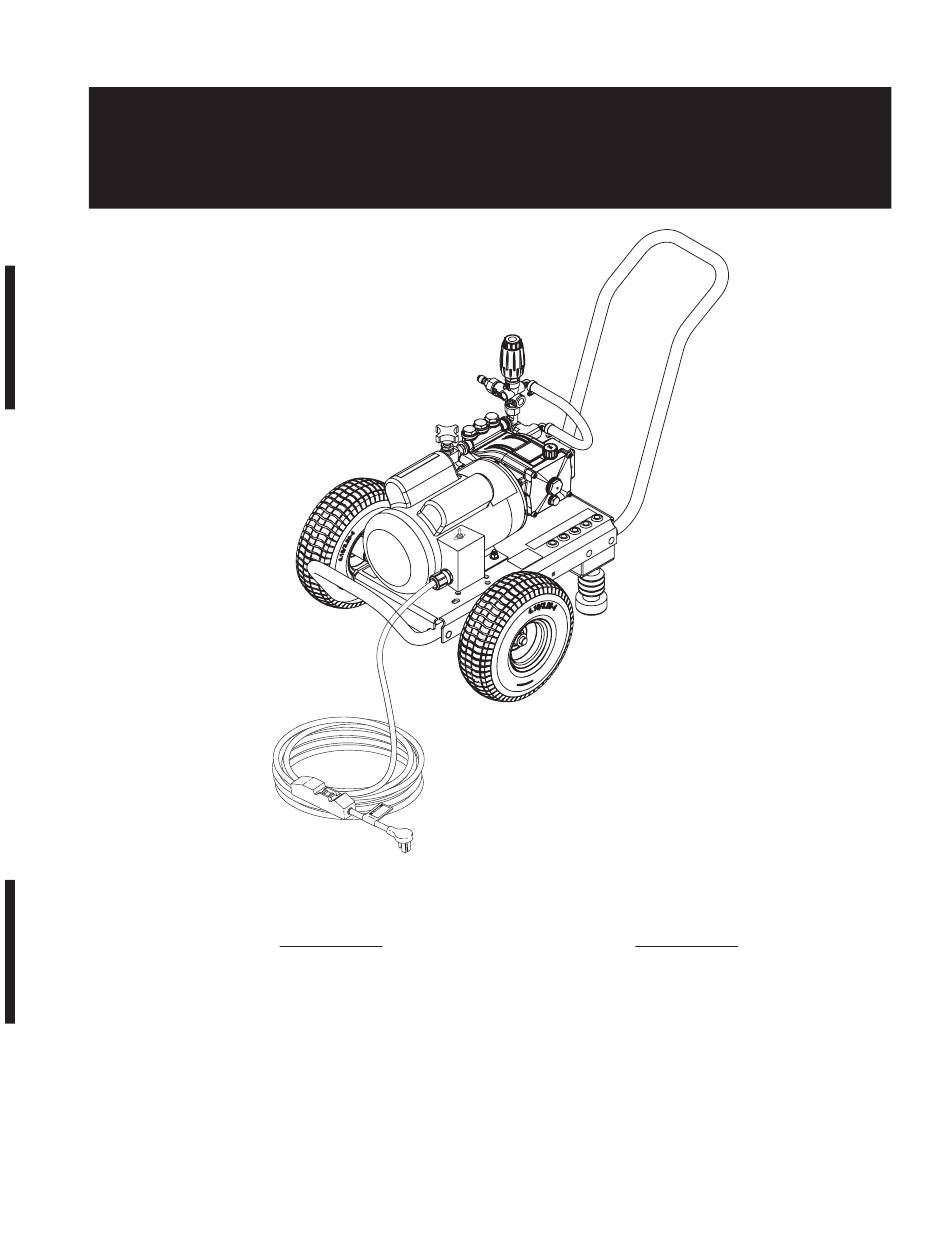

- Page 1 SERVICE MANUAL MODEL # ORDER # HD 2.0/1000 Dual Mister 1.106-160.0 9.808-246.0-A 04/07/20...
-
Page 3: Table Of Contents
CONTENTS Important Safety Information ..............4-5 Operating instructions for misting mode ..........6 Operating instructions for high pressure mode ........7 Exploded View ..................8 Exploded View Parts List ..............9-10 Pump Assembly, Exploded view ............11 Filter Exploded view ................12 Cleaning The Water Inlet Filter .............. -
Page 4: Important Safety Information
INTRODUCTION & IMPORTANT SAFETY INFORMATION Thank you for purchasing this Pressure Washer. DANGER: Improper connection of the equipment- We reserve the right to make changes at any time grounding conductor can result in a risk of elec- without incurring any obligation. trocution. - Page 5 IMPORTANT SAFETY INFORMATION WARNING: Be extremely careful WARNING: Grip cleaning wand WARNING WARNING when using a ladder, scaffolding securely with both hands before or any other relatively unstable starting. Failure to do this could location. The cleaning area result in injury from a whipping should have adequate slopes wand.
-
Page 6: Operating Instructions For Misting Mode
OPERATING INSTRUCTIONS FOR MISTING MODE Discharge Nipple >19” High Pressure Pump Hose Water Inlet Garden Hose Coupler Collar STEP 1: Attach ½” hose to a disin- STEP 2: Connect ½: hose to pump STEP 3: Connect ¼” high pressure fectant bucket. Avoid excesive water hose to the discharge nipple. -
Page 7: Operating Instructions For High Pressure Mode
OPERATING INSTRUCTIONS FOR HIGH PRESSURE MODE Discharge Nipple Cold Water Source High Pressure Pump Hose Water Inlet Garden Garden Hose Hose Coupler Collar STEP 1: Connect ½” hose to cold STEP 2: Check inlets filters, remove STEP 3: Connect ¼” high pressure debris, then connect the garden water inlet. -
Page 8: Exploded View
EXPLODED VIEW Detail See Pump Assy 9.808-246.0-A • Dual Mister Service Manual... -
Page 9: Exploded View Parts List
EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 8.924-115.0 Al Base Direct Drive 8.924-394.0 Al Handle 8.924-393. Al Bumper 9.803-097.0 Axle, 5/8 X 20.125 Long 8.924-179.0 AL Spacer Tube DD Frame 8.756-365.0 QH Wheel Assy 10", Gray STL RIM, Flat 9.802-782.0 Collar, 5/8"... - Page 10 EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 8.756-697.0 Fuel Nozzle, 2.50 X 80 BZ 9.800-049.0 Label, Manufacturer's cleaning solution 8.900-305.0 Label, Landa, Home Depot, ZE Warning 9.800-037.0 Label, French Inst./Warn 9.808-246.0-A • Dual Mister Service Manual...
-
Page 11: Pump Assembly Exploded View
PUMP ASSEMBLY EXPLODED VIEW PUMP ASSY EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.750-299.0 Unloader, Vrt3, 8 Gpm @4500 Psi 1 8.707-317.0 Valve, Flow Control 8.757-193.0 Adapter, 1/2" F-Nptf X 1/2" 8.706-297.0 Bushing, 3/8" X 1/4" M-Nptf, Brass Steel Yellow Chrom 8.707-152.0... -
Page 12: Filter Exploded View
FILTER EXPLODED VIEW FILTER PARTS LIST ITEM DESCRIPTION Housing, Nozzle Filter, 1/4 NPT-F Retainer, Filter Screen, 100 Mesh, T304SS O-Ring, 70 Duro, Buna-N, .426 ID x .070 CS Outlet Fitting, Nozzle Filter, 1/4 NTP-M Retainer, External, SS 9.808-246.0-A • Dual Mister Service Manual... -
Page 13: Cleaning The Water Inlet Filter
CLEANING THE WATER INLET FILTER Filter STEP 3: Pull out water inlet filter. STEP 1: Disconnect Spray nozzle STEP 4: Rinse out water Use the necessary tools. From the machine inlet filter in warm water. Filter STEP 5: Assemble the water inlet filter. -
Page 14: Lf2030S Series Pump Exploded View And Part's List
LF 2030S SERIES PUMP EXPLODED VIEW 8.924-736.0 LF 2030S TORQUE SPECS Item # Ft.-lbs HF 2030S SERIES PUMP PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.754-841.0 Crankcase 8.754-850.0 Washer, Lock 8.754-846.0 O-ring Ø1.78 X 72.75 9.803-198.0 Washer, Copper G3/8 See Kits Below Plunger Oil Seal 8.707-262.0 Plug, Brass G3/8... - Page 15 LF 2030S SERIES PUMP PARTS LIST ITEM PART NO. DESCRIPTION 39* 8.754-855.0 Bolt, Plunger 40* 8.754-092.0 Spacer, Copper 8.754-848.0 Plunger, 16mm 9.803-962.0 Spacer, Copper 8.754-827.0 Plunger Rod 9.803-965.0 Connecting Rod Pin 9.803-966.0 Connecting Rod 8.933-020.0 Screw, Connecting Rod 8.754-847.0 O-ring Ø2.62 X 111.62 8.754-842.0 Cover, Crankcase 9.803-906.0...
-
Page 16: Vrt3 Unloader Exploded View And Part's List
VRT3 UNLOADER EXPLODED VIEW AND PART S LIST 8.750-299.0, 8 GPM, 4500 PSI ITEM PART NO. DESCRIPTION 8.750-712.0 Outlet Fitting 8.750-713.0 Knob, Unloader 8.750-709.0 Repair Kit, VRT3, 2320/3630 8.750-710.0 Repair Kit, VRT3, 4500 PSI (Kit Items: 1, 4, 8-12, 16, 21-22) Unloader Adjustment Procedures Remove lock nut (Item 19). -
Page 17: Wiring Diagram
WIRING DIAGRAM 1.106-160.0 HD 2.0/1000 Dual Mister 9.808-246.0-A • Dual Mister Service Manual... -
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION PUMP RUNNING Pump sucking air Check water supply and possibility of air seepage. NORMALLY BUT Check valves sticking Check and clean or replace if necessary. PRESSURE LOW ON Unloader valve seat faulty Check and replace if necessary. INSTALLATION Nozzle incorrectly sized Check and replace if necessary. -
Page 19: Preventative Maintenance
PREVENTATIVE MAINTENANCE PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventa- tive maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. - Page 20 KNA, Inc.4555 Airport Way Denver, CO 80239 Form #9.808-246.0-A • Rev. 04/20 Printed in U.S.A. or Mexico...
