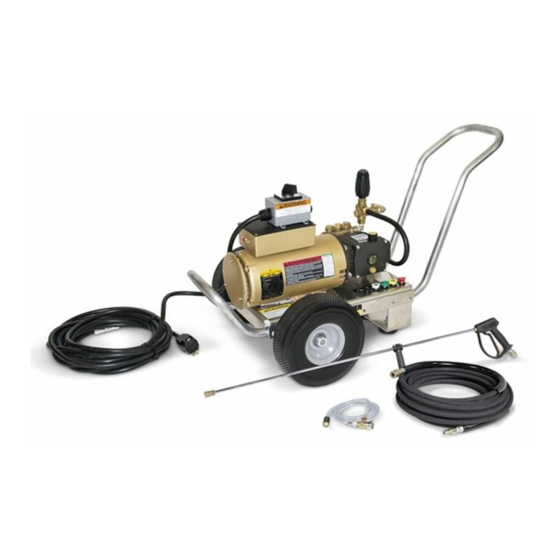

SERVICE MANUAL
MODEL #
HD 2.0/1000 Ed
HD 1.9/1300 Ed
HD 3.0/1000 Ed
HD 3.5/2000 Ea
HD 1.8/1300 Ed
ORDER #
1.106-124.0
1.106-125.0
1.106-126.0
1.106-127.0
1.106-128.0
9.801-811.0 - K
(07/18/22)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD 2.0/1000 Ed and is the answer not in the manual?

Questions and answers

Related Manuals for Kärcher HD 2.0/1000 Ed

Summary of Contents for Kärcher HD 2.0/1000 Ed

  • Page 1 SERVICE MANUAL MODEL # ORDER # HD 2.0/1000 Ed 1.106-124.0 HD 1.9/1300 Ed 1.106-125.0 HD 3.0/1000 Ed 1.106-126.0 HD 3.5/2000 Ea 1.106-127.0 HD 1.8/1300 Ed 1.106-128.0 9.801-811.0 - K (07/18/22)

  • Page 3: Table Of Contents

    CONTENTS Important Safety Information ..............4-5 Exploded View ..................6 Exploded View Parts List ..............7-8 Pump Assembly, Exploded view ............9-10 LF2030S Series Pump Exploded view and part's list ....... 11-12 LFP3530F Series Pump Exploded view and part's list ..... 13-14 LFP2830S Series Pump Exploded view and part's list .....

  • Page 4: Important Safety Information

    INTRODUCTION & IMPORTANT SAFETY INFORMATION Thank you for purchasing this Pressure Washer. DANGER: Improper connection of the equipment- We reserve the right to make changes at any time grounding conductor can result in a risk of elec- without incurring any obligation. trocution.
  • Page 5 IMPORTANT SAFETY INFORMATION WARNING: Be extremely careful WARNING: Grip cleaning wand WARNING WARNING when using a ladder, scaffolding securely with both hands before or any other relatively unstable starting. Failure to do this could location. The cleaning area result in injury from a whipping should have adequate slopes wand.

  • Page 6: Exploded View

    EXPLODED VIEW Models: HD 1.9/1300 Ed HD 3.0/1000 Ed Model: HD 3.5/2000 Ea HD 1.8/1300 Ea Detail See Pump Assy Model: HD 2.0/1000 Ed Service Manual Catch Up Electric 9.801-811.0 - K...

  • Page 7: Exploded View Parts List

    HD 3.0/1000 Ed, HD 3.5/2000 Ea) 9.802-362.0 Unloader, PA 8@3650, VB8 W/SWITCH (HD 1.8/1300 Ed) 8.758-069.0 Pump Leuco LFP2030S, 2.1@3000, 1725RPM (HD 2.0/1000 Ed, HD 1.9/1300 Ed, HD 1.8/1300 Ed) 8.758-077.0 Pump Leuco LFP2830S, 2.8@3000, 1725RPM (HD 3.0/1000 Ed) 8.754-764.0 Pump, Leuco LF3530F, 3.5@3000, 3450RPM (HD 3.5/2000 Ea)
  • Page 8 9.802-073.0 Weatherstrip, 1/8" x 1/2" 12'' 9.802-432.0 GFCI, 120V 15A, W/ 36' 12-3 CORD (HD 2.0/1000 ED) 9.802-431.0 GFCI, 125V 20A, 36' 12-3 CORD (HD 1.9/1300 ED, HD 3.0/1000 Ed AND HD 1.8/1300 Ea) 9.802-430.0 GFCI, 240V 1PH 30A, 36' 10-3 CORD (HD 3.5/2000 Ea, ) 8.932-969.0...

  • Page 9: Pump Assembly Exploded View

    PART NO. DESCRIPTION 8.758-069.0 Pump LEUCO LFP2030S, 8.705-120.0 Hosebarb, Elbow, 3/8" 2.1@3000, 1725RPM Barbx1/2" MPT/ 90Deg (HD 2.0/1000 Ed, HD 1.9/1300 Ed) 8.709-117.0 Clamp, Hose, UNI .62-.75 ST 8.758-077.0 Pump LEUCO LFP2830S, 9.804-016.0 Filter Screen Washer, 2.8@3000, 1725RPM Garden Hose/30Mesh (HD 3.0/1000 Ed)
  • Page 10 PUMP ASSEMBLY EXPLODED VIEW 3,13 PUMP ASSY EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 8.758-069.0 Pump LEUCO LFP2030S, 2.1@3000, 1725RPM (HD 1.8/1300 Ed) 8.757-549.0 Pump protector 1/2 140° 8.757-340.0 Elbow 3/8", Street 90 DEG, Steel, W/SLNT 8.712-720.0 Unloader MG4000 3000PSI W/MICR 8.707-152.0 Nipple, 3/8", Male, Ssteel...

  • Page 11: Lf2030S Series Pump Exploded View And Part's List

    LFP SERIES PUMP EXPLODED VIEW 8.929-275.0 LFP2030S LFP SERIES PUMP PARTS LIST ITEM PART NO. DESCRIPTION 8.754-841.0 Crankcase See Kits Below Plunger Oil Seal 8.758-216.0 Spacer See Kits Below "O" Ring Ø1.78X26.7 See Kits Below U Seal See Kits Below Pressure Ring See Kits Below U-Seal 9.803-199.0 Washer, Copper G1/2...
  • Page 12 LFP SERIES PUMP PARTS LIST ITEM PART NO. DESCRIPTION 8.707-262.0 Plug, Brass G3/8 21* See Kits Below Valve Seat 22* See Kits Below Valve Plate 23* See Kits Below Valve Spring 24* See Kits Below Valve Cage 9.802-939.0 Screw, Hex M6M 16mm 8.717-137.0 Bearing Cover 9.803-954.0...

  • Page 13: Lfp3530F Series Pump Exploded View And Part's List

    LFP3530F SERIES PUMP EXPLODED VIEW 8.929-279.0 LFP3530F TORQUE SPECS Item # Ft.-lbs LFP3530F SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.754-841.0 Crankcase 21* See Kits Below Valve Seat 9.850-005.0 Plunger Oil Seal 22* See Kits Below Valve Plate 9.853-555.0 Spacer 23* See Kits Below Valve Spring...
  • Page 14 LFP3530F SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 39* 8.754-092.0 Spacer, Copper 40* 8.754-848.0 Plunger, 16mm (2030S, 2830S) 8.754-849.0 Plunger, 14mm (2030F, 2830F, 3530F) 41* 9.803-962.0 Spacer, Copper 8.759-032.0 Plunger Rod 9.803-965.0 Connecting Rod Pin 9.803-966.0 Connecting Rod 8.933-020.0 Screw, Connecting Rod 8.754-847.0...

  • Page 15: Lfp2830S Series Pump Exploded View And Part's List

    LFP2830S SERIES PUMP EXPLODED VIEW TORQUE SPECS Item # Ft.-lbs LFP2830S SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.754-841.0 Crankcase 9.803-202.0 Sight Glass, G3/4 9.850-005.0 Plunger Oil Seal 9.803-906.0 O-ring Ø1.78 X 14 9.853-555.0 Spacer 21* See Kits Below Valve Seat...
  • Page 16 LFP2830S SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 8.754-844.0 Flange, Motor 9.803-210.0 Washer 8.752-824.0 Screw, 6 mm 38* 8.754-855.0 Bolt, Plunger 39* 8.754-092.0 Spacer, Copper 40* 8.754-848.0 Plunger, 16mm (2030S, 2830S) 8.754-849.0 Plunger, 14mm (2030F, 2830F, 3530F) 41* 9.803-962.0 Spacer, Copper 8.759-032.0...

  • Page 17: Vrt3 Unloader Exploded View And Part's List

    VRT3 UNLOADER EXPLODED VIEW AND PART S LIST 8.750-299.0, 8 GPM, 4500 PSI ITEM PART NO. DESCRIPTION 8.750-712.0 Outlet Fitting 8.750-713.0 Knob, Unloader 8.750-709.0 Repair Kit, VRT3, 2320/3630 8.750-710.0 Repair Kit, VRT3, 4500 PSI (Kit Items: 1, 4, 8-12, 16, 21-22) Unloader Adjustment Procedures Remove lock nut (Item 19).

  • Page 18: Wiring Diagram

    WIRING DIAGRAM 1.106-124.0 HD 2.0/1000 Ed Service Manual Catch Up Electric 9.801-811.0 - K...
  • Page 19 WIRING DIAGRAM FOR 1.106-125.0 HD 1.9/1300 Ed FOR 1.106-126.0 HD 3.0/1000 Ed Service Manual Catch Up Electric 9.801-811.0 - K...
  • Page 20 WIRING DIAGRAM FOR 1.106-127.0 HD 3.5/2000 Ea Service Manual Catch Up Electric 9.801-811.0 - K...
  • Page 21 WIRING DIAGRAM FOR 1.106-128.0 HD 1.8/1300 Ed Service Manual Catch Up Electric 9.801-811.0 - K...

  • Page 22: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION PUMP RUNNING Pump sucking air Check water supply and possibility of air seepage. NORMALLY BUT Check valves sticking Check and clean or replace if necessary. PRESSURE LOW ON Unloader valve seat faulty Check and replace if necessary. INSTALLATION Nozzle incorrectly sized Check and replace if necessary.

  • Page 23: Preventative Maintenance

    PREVENTATIVE MAINTENANCE PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular pre- ventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance.
  • Page 24 KNA, Inc.4555 Airport Way Denver, CO 80239 Form #9.801-811.0 • Rev. 05/22 Printed in U.S.A. or Mexico...

This manual is also suitable for:

Hd 1.9/1300 edHd 3.0/1000 edHd 3.5/2000 eaHd 1.8/1300 ed1.106-124.01.106-125.0 ... Show all

Table of Contents
