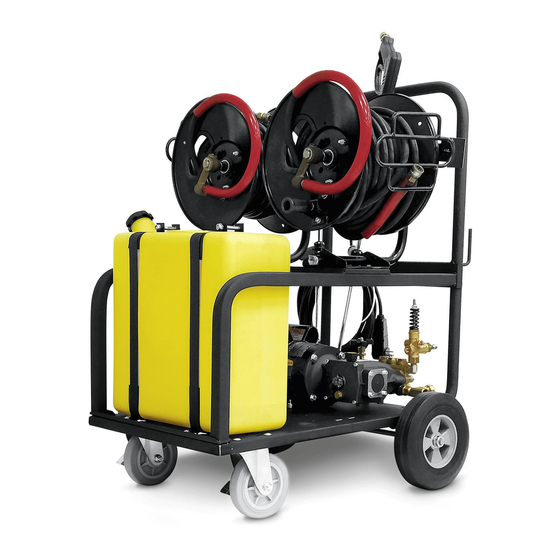

HD 2.0/1000 Dual Mister Cart
9.808-257.0-A (08/25/20)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD 2.0/1000 Dual Mister Cart and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kärcher HD 2.0/1000 Dual Mister Cart

  • Page 1 High pressure cleaner English..3 Electric motor - Cold water MODEL: 1.106-161.0 HD 2.0/1000 Dual Mister Cart Register 9.808-257.0-A (08/25/20) your product www.kaercher.com/welcome...
  • Page 3: Table Of Contents

    CONTENTS Important Safety Information ..............4-5 Operating Instructions for Misting Mode ..........6 Operating Instructions for High Pressure Mode ........7 Exploded View & Parts List ..............8-9 Pump Assembly, Exploded View ............10 Chemical Tank Assy Exploded view ............ 11 Filter Exploded View ................12 Cleaning The Water Inlet Filter ..............
  • Page 4: Important Safety Information

    INTRODUCTION & IMPORTANT SAFETY INFORMATION Thank you for purchasing this Pressure Washer. single phase this product should only be connected to a power supply receptacle protected by a GFCI. We reserve the right to make changes at any time DANGER: Improper connection of the equipment- without incurring any obligation.
  • Page 5 IMPORTANT SAFETY INFORMATION 7. Never run pump dry or leave spray gun closed 12. Be certain all quick coupler fittings are secured longer than 1-2 minutes. before using pressure washer. 8. Keep operating area clear of all persons. WARNING: Protect machine from WARNING freezing.
  • Page 6: Operating Instructions For Misting Mode

    OPERATING INSTRUCTIONS FOR MISTING MODE Spray Safety Latch High Pressure Hose STEP 3: Attach the high pressure STEP 1: Open lid and fill solution STEP 2: Be sure 3 way valve is in hose to the spray gun. tank with disinfectant. the correct position CAUTION: Do not run the pump without water or pump damage...
  • Page 7: Operating Instructions For High Pressure Mode

    OPERATING INSTRUCTIONS FOR HIGH PRESSURE MODE Cold Water Source Garden Hose STEP 1: Connect ½” hose to cold STEP 2: Check inlets filters, remove STEP 3: Be sure 3 way valve is in debris, then connect the garden water inlet. the correct position.
  • Page 8 EXPLODED VIEW Detail See Pump Assy detail See Tank Assembly Service Manual Dual Mister Cart 9.808-257.0 - A...
  • Page 9: Exploded View Parts List

    EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.929-589.0 Base Wheel Kit 9.802-776.0 Nut, 5/16-18, ESNA 8.623-262.0 Wheel & Tire Hard Rubber 9.802-710.0 Screw 5/16" x 1" NC 10X2 3/4 8.752-969.0 Strain Relief,LT,STR,1/2NPT 9.802-274.0 Castor 6" DIAx 4.63 0.39-0.75ID 8.929-595.0 Handle Welded Mister Cart...
  • Page 10: Pump Assembly Exploded View

    PUMP ASSEMBLY EXPLODED VIEW PUMP ASSY EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.750-299.0 Unloader, Vrt3, 8 Gpm 9.802-166.0 Coupler, 3/8"Socket, @4500 Psi Female, Brass 8.757-511.0 Elbow, 3/8", Steel 8.707-152.0 Nipple, 3/8", Male, Ssteel 8.754-761.0 Pump, Leuco Lf2030s, 2.1 8.706-880.0 Nipple, 1/2"...
  • Page 11: Chemical Tank Assy Exploded View

    CHEMICAL TANK ASSY EXPLODED VIEW CHEMICAL TANK ASSY PARTS LIST ITEM PART NO. DESCRIPTION 8.759-035.0 Disinfectant Tank 9 Gallons 8.633-447.0 Cover Plate Complete 8.627-435.0 Screw, 10-24 X .5 PHPNHTC 8.750-743.0 Bulkhead, 1/2"""" Polypro 8.757-391.0 Elbow Brass 1/2 Sae (M) X 1/2 Nptf (M) 9.802-151.0 Swivel, 1/2"...
  • Page 12: Filter Exploded View

    FILTER EXPLODED VIEW FILTER PARTS LIST ITEM DESCRIPTION Housing, Nozzle Filter, 1/4 NPT-F Retainer, Filter Screen, 100 Mesh, T304SS O-Ring, 70 Duro, Buna-N, .426 ID x .070 CS Outlet Fitting, Nozzle Filter, 1/4 NTP-M Retainer, External, SS Service Manual Dual Mister Cart 9.808-257.0 - A...
  • Page 13: Cleaning The Water Inlet Filter

    CLEANING THE WATER INLET FILTER Filter STEP 2: Pull out water inlet filter. STEP 1: Disconnect Spray nozzle STEP 3: Rinse out water Use the necessary tools. From the machine inlet filter in warm water. Filter STEP 4: Assemble the water inlet filter.
  • Page 14: Lf2030S Series Pump Exploded View And Parts List

    LFP 2030S SERIES PUMP EXPLODED VIEW 8.758-069.0 LFP2030S TORQUE SPECS Item # Ft.-lbs LFP 2030S SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.754-841.0 Crankcase 9.803-198.0 Washer, Copper G3/8 8.754-846.0 O-ring Ø1.78 X 72.75 8.707-262.0 Plug, Brass G3/8 See Kit Below Plunger Oil Seal...
  • Page 15 LFP 2030S SERIES PUMP PARTS LIST ITEM PART NO. DESCRIPTION 8.754-844.0 Flange, Motor 9.803-210.0 Washer 8.752-824.0 Screw, 6 mm 39* 8.754-855.0 Bolt, Plunger 40* 8.754-092.0 Spacer, Copper 8.754-848.0 Plunger, 16mm (2030S, 2830S) 8.754-849.0 Plunger, 14mm (2030F, 2830F, 3530F) 9.803-962.0 Spacer, Copper 8.754-827.0 Plunger Rod 9.803-965.0...
  • Page 16: Vrt3 Unloader Exploded View And Parts List

    VRT3 UNLOADER EXPLODED VIEW AND PART S LIST 8.750-299.0, 8 GPM, 4500 PSI ITEM PART NO. DESCRIPTION 8.750-712.0 Outlet Fitting 8.750-709.0 Repair Kit, VRT3, 2320/3630 8.750-710.0 Repair Kit, VRT3, 4500 PSI (Kit Items: 1, 4, 8-12, 16, 21-22) Unloader Adjustment Procedures Remove lock nut (Item 19).
  • Page 17: Wiring Diagram

    WIRING DIAGRAM 1.106-161.0 HD 2.0/1000 Dual Mister Cart Service Manual Dual Mister Cart 9.808-257.0 - A...
  • Page 18: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION PUMP RUNNING Pump sucking air Check water supply and possibility of air seepage. NORMALLY BUT Check valves sticking Check and clean or replace if necessary. PRESSURE LOW ON Unloader valve seat faulty Check and replace if necessary. INSTALLATION Nozzle incorrectly sized Check and replace if necessary.
  • Page 19: Preventative Maintenance

    PREVENTATIVE MAINTENANCE PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventa- tive maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance.
