Summary of Contents for Kärcher HD 2.0/10 Ed

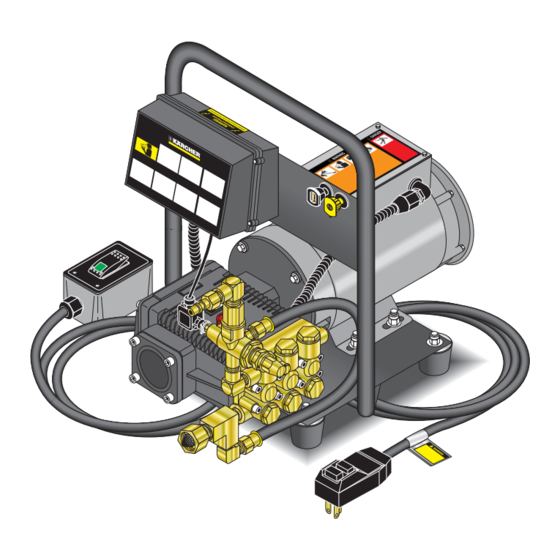

- Page 1 ® OPERATOR’S MAN U AL MODEL ORDER # HD 2.0/10 Ed 1.575-400.0 HD 1.8/14 Ed 1.575-401.0 HD 2.0/14Ed + 1.107-088.0 To locate your local Kärcher Commercial Pressure Washer Dealer nearest you, visit www.karchercommercial.com 9.800-088.0...
-
Page 2: Table Of Contents
CONTENTS Important Safety Information ..............5-6 Component Identifi cation ................. 7 Assembly Instructions ................8 Operating Instructions................9 Shutdown and Cleanup ................. 10 Storage ....................10 Troubleshooting ..................11 Preventative Maintenance ..............12 Oil Change Record ................12 Optional Wall Mount ................13 Hose &... -
Page 3: Important Safety Information
INTRODUCTION & IMPORTANT SAFETY INFORMATION Thank you for purchasing this Pressure Washer. DANGER: Improper connection of the equip- ment-grounding conductor can result in a risk We reserve the right to make changes at any time of electrocution. Check with a qualifi ed electri- without incurring any obligation. - Page 4 IMPORTANT SAFETY INFORMATION 14. Inlet water must be clean fresh water and no hotter WARNING: Grip cleaning wand WARNING then 90°F. securely with both hands before starting. Failure to do this could 15. Manufacturer will not be liable for any changes result in injury from a whipping made to our standard machines or any components wand.
-
Page 5: Component Identification
COMPONENT IDENTIFICATION Electric Power Motor Supply Oil Dip Water Stick Faucet Plug Discharge Nipple Nozzle Quick Water Supply Coupler Hose (not included) Pump Inlet Connector Quick Coupler Wand Spray Pressure Nozzle Trigger Flex Wand High Pressure Hose High Pressure Hose - Connect one end to water pump Spray Gun - Controls the application of water and discharge nipple and the other end to spray gun. -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Spray Wand Coupler Safety Nozzle Latch Extension Pressure Spray Gun/ Nozzle Wand High Pressure Hose STEP 1: Attach the high pressure STEP 2: Attach nozzle extension STEP 3: Pull the spring-loaded col- hose to the spray gun with quick to spray gun/wand. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Cold Water Source Garden Hose STEP 1: Connect garden hose STEP 2: Trigger the spray gun to STEP 3: Connect to appropriate to the cold water source and turn eliminate trapped air then wait for a power supply. water on completely. -
Page 8: Shutdown And Cleanup
SHUTTING DOWN AND CLEAN-UP STEP 1: Remove deter- STEP 2: Turn off machine STEP 3: Turn off water STEP 4: Press trigger to gent suction tube from by fl ipping switch on rear supply. release water pressure. container and insert into of motor or by pressing the one gallon of fresh water. -
Page 9: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION PUMP RUNNING Check water supply and possibility of air seep- Pump sucking air NORMALLY BUT age. PRESSURE LOW ON Check valves sticking Check and clean or replace if necessary. INSTALLATION Unloader valve seat faulty Check and replace if necessary. Nozzle incorrectly sized Check and replace if necessary. -
Page 10: Preventative Maintenance
PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. -
Page 11: Optional Wall Mount
OPTIONAL WALL MOUNT - 8.903-613.0 Instruction label should be placed next to the machine and within easy view of all users. ZE/ZEF-ET-HD-HE • 8.914-001.0 • 8.941-457.0 • 9.800-088.0 • 8.919-017.0 • Rev. 11/15... -
Page 12: Hose & Spray Gun Assembly & Parts List
HOSE & SPRAY GUN ASSEMBLY HOSE & SPRAY GUN ASSEMBLY PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.802-166.0 Coupler, 3/8" Female 9.802-164.0 Coupler, 1/4” Female ▲ Quick Coupler O-Ring ▲ Quick Coupler O-Ring 9.802-100.0 9.802-096.0 8.739-133.0 Hose, 3/8" x 25', LA 9.802-296.0 Nozzle, 4.0 15°... - Page 13 ® www.karchercommercial.com Form # 9.800-088.0 • Revised 11/15 • Printed in U.S.A. or Mexico...
