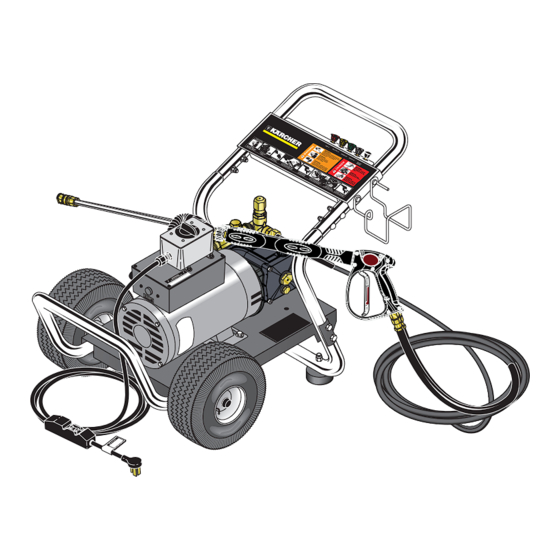

- Page 1 OPERATOR’S MANUAL MODEL ORDER # HD 2.0/10 Ed 1.575-250.0 HD 1.9/15 Ed 1.575-251.0 HD 2.8/10 Ed 1.575-252.0 HD 3.5/20 Ea 1.575-253.0 To locate your local Kärcher Commercial Pressure Washer Dealer nearest you, visit www.karchercommercial.com 9.807-625.0...
-
Page 2: Table Of Contents
CONTENTS Important Safety Information ..............3-4 Component Identification ................. 5 Assembly Instructions ................6 Operating Instructions................7 Applying Detergents & General Cleaning Techniques ......8 Shut Down and Clean-Up ................ 9 Storage ....................9 Troubleshooting ..................10 Preventative Maintenance ..............11 Oil Change Record ................ -
Page 3: Important Safety Information
INTRODUCTION & IMPORTANT SAFETY INFORMATION Thank you for purchasing this Pressure Washer. single phase this product should only be connected We reserve the right to make changes at any time to a power supply receptacle protected by a GFCI. without incurring any obligation. DANGER: Improper connection of the equip- Owner/User Responsibility: ment-grounding conductor can result in a risk... - Page 4 IMPORTANT SAFETY INFORMATION 14. Inlet water must be clean fresh water and no hotter WARNING: Grip cleaning wand WARNING then 90°F. securely with both hands before starting. Failure to do this could 15. Manufacturer will not be liable for any changes result in injury from a whipping made to our standard machines or any components wand.
-
Page 5: Component Identification
COMPONENT IDENTIFICATION Detergent Injector Pump Protector Water Supply Pressure (not included) Nozzle Unloader Soap Nozzle Quick On/Off Coupler Switch Wand Hanger Pump Detergent Safety Bucket (not Latch included) Garden Hose (not included) High Pressure GFCI Hose Spray Gun and Wand Pump —... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Carriage Bolts Hose/Gun Handle Bolt Storage Bracket Alignment Holes Frame Assy. Studs STEP 1: Attach handle to the frame STEP 2: Insert the carriage bolt STEP 3: Attach the spray gun/ of the pressure washer. Note: It through the holes from the outside hose storage handle, and bracket may be necessary to move the of the unit and attach a nut from the... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Cold Water Source Garden Hose STEP 1: Connect garden hose STEP 2: Trigger the spray gun to STEP 3: Connect to appropriate eliminate trapped air then wait for power supply. Push reset button to the cold water source and turn water on completely. -
Page 8: Applying Detergents & General Cleaning Techniques
DETERGENTS & GENERAL CLEANING TECHNIQUES THERMAL PUMP PROTECTION WARNING: Some detergents WARNING may be harmful if inhaled or If you run the motor on your pressure washer for 3-5 ingested, causing severe nau- minutes without pressing the trigger on the spray gun, sea, fainting or poisoning. -
Page 9: Shut Down And Clean-Up
SHUTTING DOWN AND CLEAN-UP On/Off Switch STEP 1: Remove deter- STEP 2: Turn off machine STEP 3: Turn off water STEP 4: Press trigger to gent suction tube from by turning switch to “OFF” supply. release water pressure. container and insert into switch. -
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION PUMP RUNNING Pump sucking air Check water supply and possibility of air. NORMALLY BUT Check valves sticking Check and clean or replace if necessary. PRESSURE LOW ON Unloader valve seat faulty Check and replace if necessary. INSTALLATION Nozzle incorrectly sized Check and replace if necessary. -
Page 11: Preventative Maintenance
PREVENTATIVE MAINTENANCE PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. -
Page 12: Exploded View
EXPLODED VIEW 15 16 17 6, 7 OSIT OSIC 18, 19 14, 28 Models Models 253.0, 14, 28 251.0, 252.0, 064.0 062.0, 063.0 ITIV ICIO Models 250.0, 061.0 9.807-625.0 • 8.919-015.0 • Rev. 02/17... -
Page 13: Exploded View Parts List
EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.104-016.0 NOZZLE KIT 3.25 (23326) 9.802-430.0 GFCI, 240V1Ph30A, 36' 10-3 Cord (253.0, 064.0) 9.804-624.0 Nozzle, 1504, Yellow (250.0, 061.0) 9.802-431.0 GFCI, 120V 20A, w/36' 12-3 Cord (251.0, 252.0, 9.804-625.0 Nozzle, 2504, Green 062.0, 063.0) - Page 14 EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 9.802-817.0 Washer, 3/8" x 1" 9.802-066.0 Pad, Soft Rubber, 50 Duro 9.802-807.0 Washer, 3/8" SAE, Flat 9.802-779.0 Nut, 3/8" ESNA, NC 9.802-782.0 Axle Hub Black 8.754-186.0 Qh Wheel Assy, 10" Gray Steel Rim W/Tube 9.802-103.0 Bushing, Snap, 5/8"...
-
Page 15: Hose And Spray Gun Assembly
HOSE AND SPRAY GUN ASSEMBLY HOSE AND SPRAY GUN ASSEMBLY PARTS LIST ITEM PART NO. DESCRIPTION 9.802-166.0 Coupler, 3/8" Female 9.802-100.0 Quick Coupler O-Ring 8.739-125.0 Hose, 3/8" x 50', 1 Wire, Tuff-Flex 8.754-769.0 Spray Gun, Shut-Off 9.112-533.0 Lance-AL Quick Connect-Male 3000 PSI 9.802-164.0 Coupler, 1/4"... -
Page 16: Unloader Uu1 Exploded View And Parts List
UU1 UNLOADER EXPLODED VIEW 9.175-018.0 UU1 3500PSI, UNIVERSAL UNLOADER (SPARE) UU1 UNLOADER EXPLODED VIEW PARTS LIST ITEM PART # DESCRIPTION KIT QTY ITEM PART # DESCRIPTION KIT QTY 8.751-394.0 Piston Housing 9.149-006.0 Sliding Connector Guide Piston C, D O-Ring Backup A, D 6 x 1.45 x 1.68 Piston O-Ring Back Up... -
Page 17: Unloader Vbt Exploded View And Parts List
VBT UNLOADER EXPLODED VIEW 8.754-696.0 UNLOADER, VBT BANJO 1/2M 3/8M, 3000PSI (SPARE) VBT UNLOADER EXPLODED VIEW PARTS LIST ITEM PART # DESCRIPTION KIT QTY ITEM PART # DESCRIPTION KIT QTY 8.754-929.0 Stem 9.803-914.0 Seal Washer 1/2) 9.803-912.0 Backup Ring 8.754-937.0 Bypass Manifold 8.754-930.0 O-ring, Ø2.62 x 6.02 9.802-892.0 Outlet Connector 3/8 MPT 8.730-882.0 Stem Connector... -
Page 18: Lf Pump Exploded View And Parts List
LF SERIES PUMP EXPLODED VIEW 8.754-760.0 LF 2030F 8.923-766.0 LF3530F TORQUE SPECS Item # Ft.-lbs LF SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.754-841.0 Crankcase 9.803-198.0 Washer, Copper G3/8 8.754-846.0 O-ring Ø1.78 X 72.75 8.707-262.0 Plug, Brass G3/8 See Kits Below Plunger Oil Seal... - Page 19 LF SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 8.754-855.0 Bolt, Plunger 8.754-092.0 Spacer, Copper 8.754-849.0 Plunger, 14mm 9.803-962.0 Spacer, Copper 8.754-827.0 Plunger Rod 9.803-965.0 Connecting Rod Pin 9.803-966.0 Connecting Rod 8.933-020.0 Screw, Connecting Rod 8.754-847.0 O-ring Ø2.62 X 111.62 8.754-842.0 Cover, Crankcase 9.803-906.0...
-
Page 20: Ke.1 Pump Exploded View And Parts List
KE.1 SERIES PUMP EXPLODED VIEW 9.803-814.0 KE 2020F 9.803-815.0 KE 2020S 9.803-816.0 KE 2825F 9.803-817.0 KE 2825S 9.803-818.0 KE 3525F TORQUE SPECS Item # Ft.-lbs KE.1 SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.803-951.0 Brass Plug G1/4 9.803-938.0... - Page 21 KE.1 SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 9.804-584.0 Flange Screw 9.804-585.0 Crankshaft Seal 38* See Kit Below Plunger Nut 39* See Kit Below Copper Spacer 40* See Kit Below Plunger 15mm (2020F, 2825F, 3525F) See Kit Below Plunger 18mm (2020S, 2825S) 41* See Kit Below...
-
Page 22: Specifications
SPECIFICATIONS HD Models Machine Pessure Nozzle Pump Pump Unloader Motor Motor Model (PSI) Size Hose p/n Part # Model Part # Part # 1.575-250.0 1000 3.75 9.802-233.0 8.923-791.0 KF2030F 8.754-696.0 1-1/2 8.754-091.0 1.575-251.0 1500 9.802-233.0 8.923-791.0 KF2030F 8.754-696.0 9.802-339.0 1.575-252.0 1000 9.802-233.0 9.803-816.0... - Page 23 www.karchercommercial.com Form # 9.807-625.0 • Revised 02/17 • Printed in U.S.A. or México...
