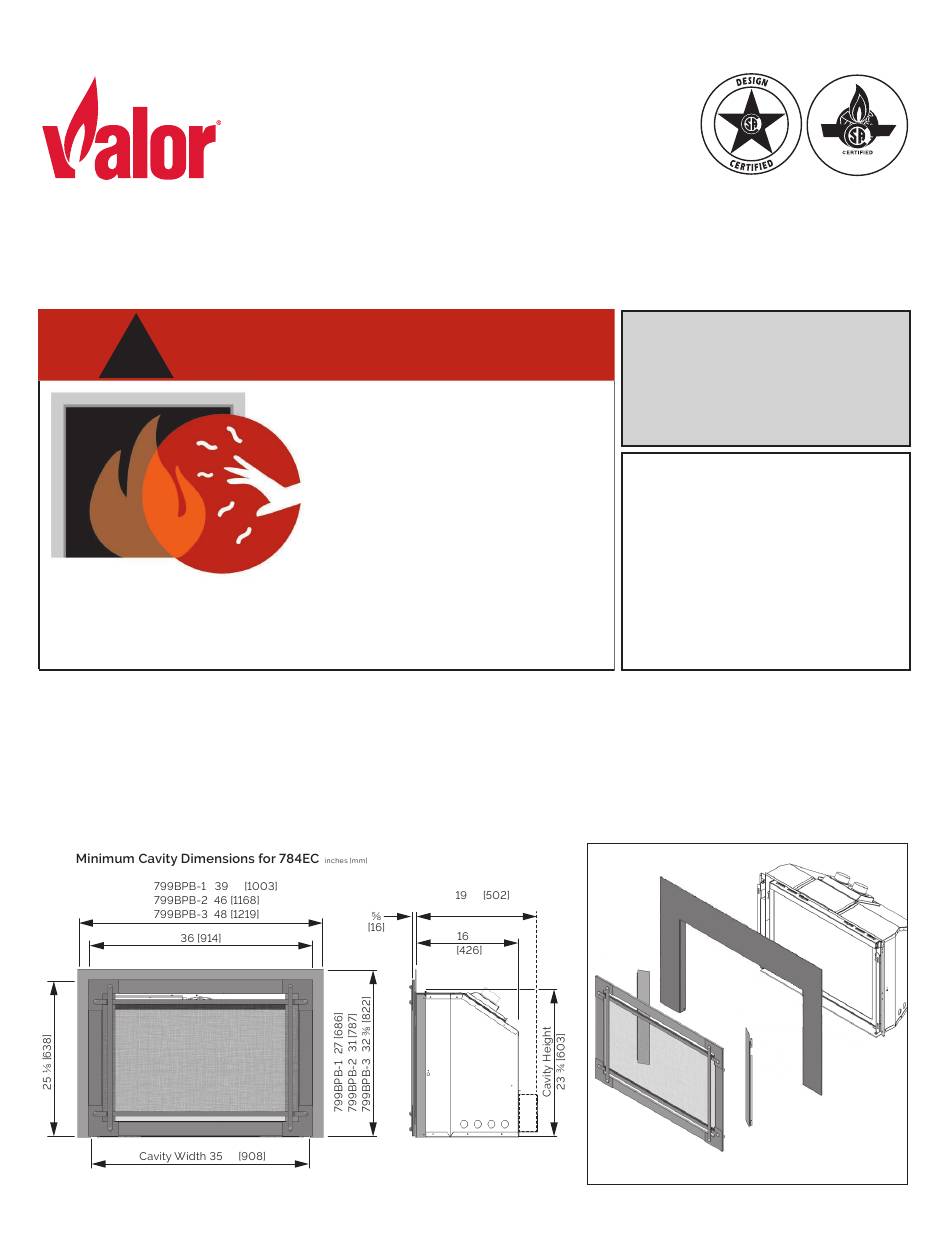

INSTALLATION MANUAL
784EC Edgemont Craftsman Front Kit
with Backing Plates 799BPB-1, 799BPB-2 or 799BPB-3 (sold separately)
Use with Valor G4 780 and 785 models ONLY
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
The 784ECF Edgemont Craftsman Front Kit is intended to be used on Valor
heater model 780 & 785 with a required choice of Backing Plate 799BPB-1,
799BPB-2 or 799BPB-3.
Mounting of the 784 affects cavity dimensions—see below and installation
manual supplied with the heater for more information.
4007858-01
©2019, Miles Industries Ltd.
G4
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
½
¾
INSTALLER: Leave this
manual with the appliance.
CONSUMER: Retain this
manual for future reference.
Note: This kit must be
installed or serviced by a
qualified installer, service
agency or gas supplier. These
instructions are to be used
in conjunction with the main
installation instructions
for the above listed heater
model.
Cavity Depth
¾
with fan
¾
Overview (G4 and 799BPB sold separately)
G4 engine
799BPB
Backing Plate
784EC front
including doors
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Valor 784EC
Summary of Contents for Valor 784EC
- Page 1 The 784ECF Edgemont Craftsman Front Kit is intended to be used on Valor heater model 780 & 785 with a required choice of Backing Plate 799BPB-1, 799BPB-2 or 799BPB-3.
- Page 2 Installation 4. Insert the top pin of the left door panel in the hole at the top of the left shroud already installed on the 1. Secure the backing plate (799BPB-1, 799PBP-2 or appliance. 799BPB-3 sold separately) to the appliance’s outer 5.
- Page 3 RH door panel 4002410AZ 4002410AZ 4002410AZ Front with screen 4007684BR 4007684PW 4007684CB Barrier screen only 4007655AZ 4007655AZ 4007655AZ 784EC kits Description Part Numbers 799BPB-1 799BPB-2 799BPB-3 39-1/2” x 27” 46” x 31” 48” x 32-3/8” Backing plate* 4005420AZ 4004446AZ 4006310AZ *Backing Plates 799BPB-1, 799BPB-2 and 799BPB-3 sold separately.
- Page 4 Valor personnes à risques. indiqué ci-dessus. La Devanture Edgemont Craftsman 784EC est conçue pour les foyers Valor Legend G4 modèles 780 et 785. Elle doit être installée sur une des Plaques de finition 799BPB-1, 799BPB-2 ou 799BPB-3.
- Page 5 Installation 4. Insérez la cheville du haut dans le trou du support de devanture déjà installé sur l’appareil. 1. Fixez la plaque de finition (799BPB-1, 799BPB-2 ou 5. Soulevez le panneau et insérez la cheville du bas 799BPB-3 vendues séparément) aux supports des dans le trou du support.
- Page 6 Porte droite 4002410AZ 4002410AZ 4002410AZ Devanture avec 4007684BR 4007684PW 4007684CB pare-étincelles Pare-étincelles seul. 4007655AZ 4007655AZ 4007655AZ 784EC Description Pièces n 799BPB-1 799BPB-2 799BPB-3 39-1/2” x 27” 46” x 31” 48” x 32-3/8” Plaque de fi nition* 4005420AZ 4004446AZ 4006310AZ *Plaques de finition 799BPB-1, 799BPB-2 ou 799BPB-3 vendues séparément.
