INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS

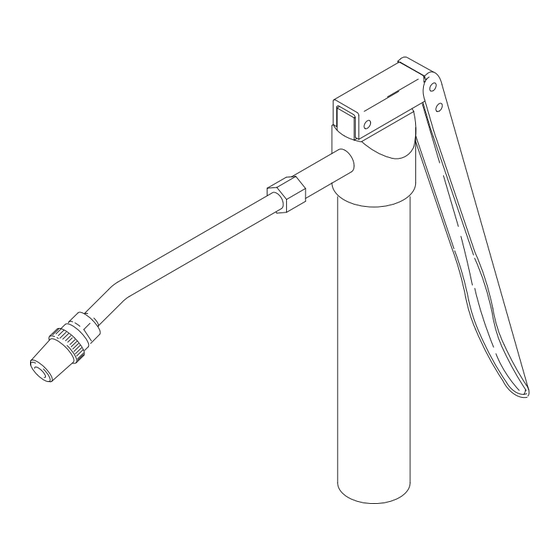

Detachable-type
LUBRICATOR GUN
10,000 psi (700 bar) Maximum Delivery Pressure
Model 203–697, Series E
3.5 oz. (100 gram) reservoir capacity
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
COPYRIGHT 1996, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
306–460
Rev. E
Supercedes D
Advertisement
Table of Contents
Related Manuals for Graco 203-697 E Series
Summary of Contents for Graco 203-697 E Series
- Page 1 LUBRICATOR GUN 10,000 psi (700 bar) Maximum Delivery Pressure Model 203–697, Series E 3.5 oz. (100 gram) reservoir capacity GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 COPYRIGHT 1996, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...
- Page 2 This equipment is for professional use only. Read all instruction manuals, tags, and labels before operating the equipment. Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. Do not alter or modify this equipment.
- Page 3 INJECTION HAZARD Spray from the valve, leaks or ruptured components can inject fluid into your body and cause ex- tremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury. Fluid injected into the skin might look like just a cut, but it is a serious injury.
- Page 4 Operation Operating the Gun WARNING 1. Wipe clean the coupler (A) and the grease fitting The maximum delivery pressure of the lubricator on the part you are lubricating. gun, when charged and disconnected from the dispenser, is 10,000 psi (700 bar). Fluid emitted under such high pressure can cause serious injury.
- Page 5 Notes...
- Page 6 Service Problem: Problem: Lubricant continues to flow with the gun-handle re- The action of the gun-handle is soft or spongy when leased. pumped. Solution: (See Parts Drawing on page 7) Solution: (See Parts Drawing on page 7) CAUTION To avoid damaging the reservoir tube (19) Do not use a wrench to hold it.
- Page 7 Parts É É É É É É É É É É É É É É É É Ref. Ref. Part No. Description Qty. Part No. Description Qty. 160–059 ADAPTER, outlet 200–389 HYDRAULIC ADAPTER ASSY 160–060 SEAT, ball see manual 306–708 for parts 105–290 FITTING, grease;...
- Page 8 Graco distributor to the original purchaser for use. Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defec- tive.
