Summary of Contents for idi ilex

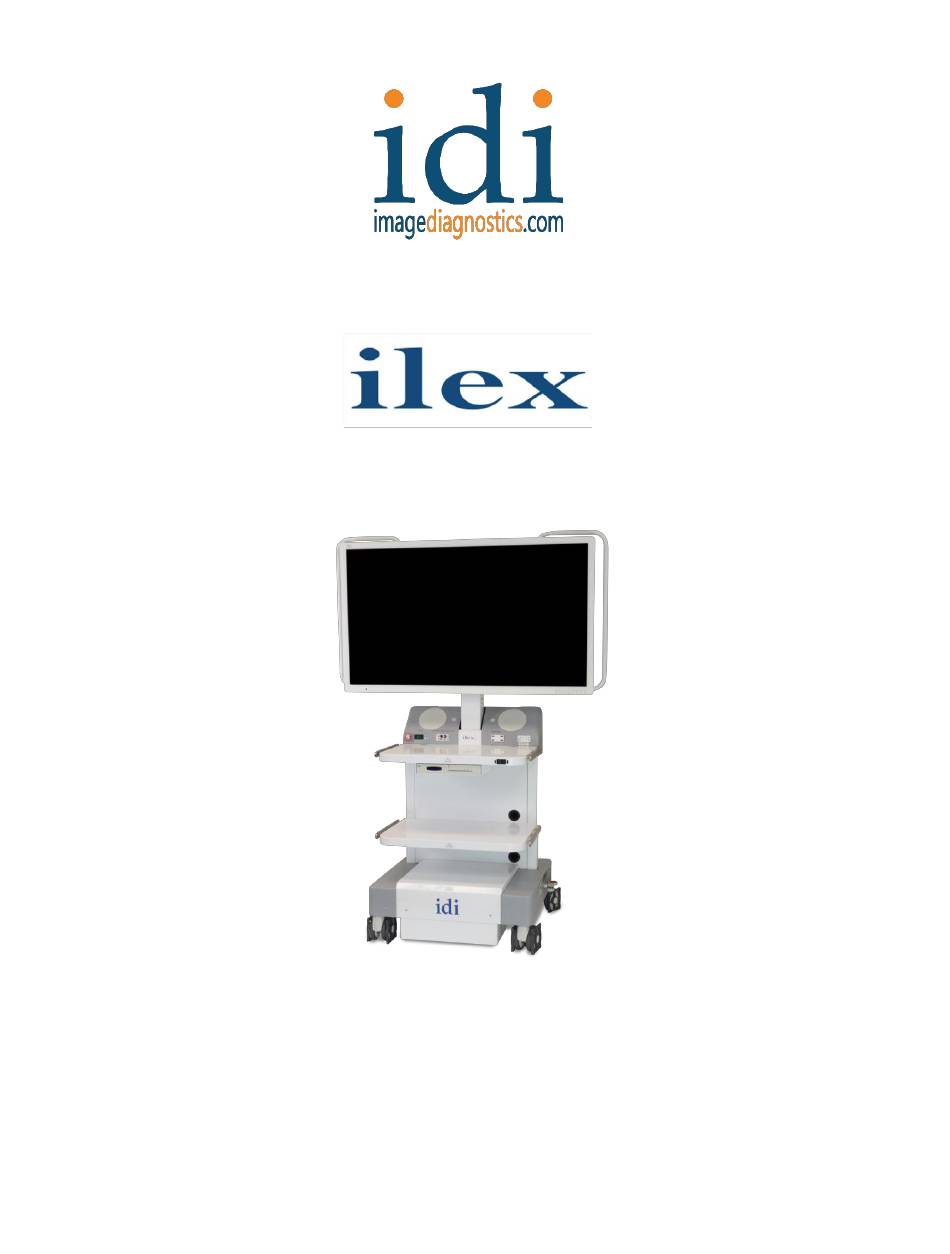

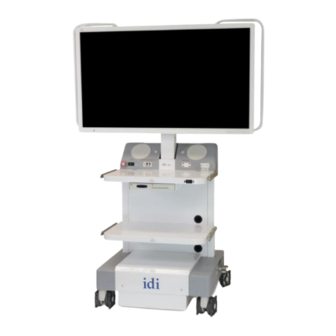

- Page 1 Mobile Video Integration System Operator Manual For units using IPS500A video signal router The text of this manual was originally written, approved and published by the manufacturer in English. Made in the USA L280-0688 REV C...
- Page 2 For technical assistance, call IDI at (978) 829-0009. Be prepared to give the complete model and serial number found on the data plate on the rear of the ilex base at the time of contact. Image Diagnostics, Inc. 310 Authority Drive...
-
Page 3: Table Of Contents
Basic Setup Instructions ......................9 Electronics Installation........................ 9 Moving and Positioning ......................10 Instructions for Operation ....................11 System Components of the ilex ....................11 FSN Monitor Controls ......................11 Power Switches ......................... 13 Speakers ............................ 14 StableCable™ cable management system ................14 Batteries .......................... -
Page 4: Symbol Identification
Operator Manual ilex with IPS500A Symbol Identification Attention! Consult accompanying documents. Failure to follow these instructions could cause serious personal injury or damage to equipment. Read the Manual SGS North America, Inc. Testing Service. The system was tested and found to be in compliance with the requirements of all relevant directives and standards in effect within the European Union at the time of manufacture. - Page 5 Operator Manual ilex with IPS500A Recyclable material, some material can be recycled rather than discarded Emergency Stop Switch - Stops elevation motion. Maximum allowable Weight Limits. Protective Ground. This is the common tie point between the AC cord ground, frame ground, and controller ground.
-
Page 6: Intended Use
• The ilex system is intended to be used in typical clinical or research environments in accordance with national standards. • When transporting the ilex system from room to room, it is imperative that the device be moved in the storage position which is with the monitor all the way down. -
Page 7: Safety Hazards
WARNING! Connecting any electrical equipment to the socket outlets of the ilex system creates a new ME (Medical Electrical) Equipment unit possibly resulting in a reduced level of safety. Once this is done, the responsible organization must refer and comply to the standard IEC 60601-1. -
Page 8: Emc (Electromagnetic Compatibility) Statement
Portable and Mobile RF Communications Equipment can affect Medical Electrical Equipment including the ilex system. Use special precautions regarding EMC when these carts are installed with any external accessories, maintained or operated adjacent or stacked with other equipment. -
Page 9: Basic Setup Instructions
Operator Manual ilex with IPS500A Basic Setup Instructions Electronics Installation All electronic devices are to be installed according to their perspective manufacturer’s user manuals. When installing electronic accessories or placing other items on the top shelf, keep these items at least 2 inches (50mm) away from the vertical edge below the speakers (as shown above to allow room for the monitor when it is in the lowest position and to ensure easy access to controls. -
Page 10: Moving And Positioning
Operator Manual ilex with IPS500A Moving and Positioning Center Lock Pedal Pedal Positions Steer Float Lock Caster Modes: Total Lock: Step down on the right end of the caster brake pedal with the red dot to lock both the swivel and roll. Put the casters in this mode during use to prevent any horizontal movement of the unit. -
Page 11: Instructions For Operation
31" Operator Manual ilex with IPS500A 790mm 55in Instructions for Operation 140cm ACROSS System Components of the ilex HANDLES 92in 72in 233cm 182cm 16in 40cm 19in x 28in Blue Tooth Speaker Pairing [48cm x 71cm] Up/Down Emergency Stop 22cm 20in x 20in... - Page 12 Operator Manual ilex with IPS500A Please refer to FSN’s User Guide accompanying the monitor for additional functionality and settings of the monitor. L280-0688 REV C www.imagediagnostics.com Page 12...
-
Page 13: Power Switches
When the red emergency stop button is pushed in, elevation of the monitor is not allowed. Always push the red emergency stop button when moving the ilex system to reduce the risk of damage to the unit. Reset by rotating the button a quarter turn. -
Page 14: Speakers
The StableCable is located on the back of the ilex just below the external cable ports. Instructions on how to use the system is as follows: Operating Instructions to insert cable: 1. -
Page 15: Batteries
Push up to install cable Batteries The ilex system is designed to be used when powered with a hospital grade AC outlet. Battery backup to elevate the monitor is available for emergency or transportation only. When AC power is applied, the actuator backup battery will begin charging until the battery reaches full capacity at which time, the charging will taper off. -
Page 16: General Cleaning
NEVER use alcohol to clean the monitor. Procedure: 1.1. Unplug the ilex system prior to the cleaning process. 1.2. Wipe clean the surfaces of the system with a diluted mixture of mild detergent (listed above) and water, using a soft cloth. -
Page 17: Large Monitor Cleaning Fsn Monitors Only
Operator Manual ilex with IPS500A Large Monitor Cleaning FSN monitors only Products FM-C5501DV, FM-A5502DC, FM-D5801DV. Precautions • Before cleaning, switch the display in stand-by position to prevent the control touch panel from being activated inadvertently by sweeping over the front filter. In stand-by position the touch panel cannot be activated by just sweeping over them. - Page 18 Operator Manual ilex with IPS500A DO NOT USE: • Alcohol/solvents at higher concentration > 5% • Strong alkalis lye • Strong solvents • Acid • Detergents with fluoride • Detergents with ammonia • Detergents with abrasives • Steel wool • Sponge with abrasives •...
-
Page 19: Service & Repair
Operator Manual ilex with IPS500A 9. Service & Repair Please contact Image Diagnostics for Service and Repair at (978) 829-0009. 10. Maintenance All maintenance procedures should be done by an experienced and qualified technician with demonstrated knowledge and skills (electrical and mechanical) in the service of medical equipment. -
Page 20: Disposal Of Components
Operator Manual ilex with IPS500A 11. Disposal of Components The ilex system is constructed mostly of steel and aluminum which are easily recycled. Some components can be disassembled before recycling. COMPONENT ITEM RECYCLING GROUP Spindle and Motor Metal (Steel and Copper) -
Page 21: Specifications
Operator Manual ilex with IPS500A 12. Specifications Mode of Operation ▪ For continuous use Type of Equipment: ▪ Class I (as defined by IEC 60601-1, 3 Edition ▪ CENELEC EN 60601-1 ▪ ANSI/AAMI ES60601-1 ▪ IEC60601-1 3 Edition Electrical: ▪ Supply Voltage: ▪... - Page 22 Operator Manual ilex with IPS500A Product features included with ilex system: ▪ Thermal protector AC input module ▪ Medical grade outlet strip for Monitor & Ancillary power. ▪ Individual cables for monitor power and video input. ▪ Detachable 20 foot (6m) AC power cord.
-
Page 23: Me Equipment And Systems
Table 1 per 5.2.2.1.c of IEC 60601-1-2: 2007 for CISPR 11 ME Equipment and ME Systems. Guidance and manufacturer’s declaration –electromagnetic emissions The ilex system is intended for use in the electromagnetic environment specified below. The customer or the user of the ilex system should assure that it is used in such an environment. - Page 24 Table 4 per 5.2.2.2 of IEC 60601-1-2: 2007. Guidance and manufacturer’s declaration –electromagnetic immunity The ilex system is intended for use in the electromagnetic environment specified below. The customer or the user of the ilex system should assure that it is used in such an environment.
-
Page 25: Warranty
ILEX system The ilex system is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the ilex system can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the ilex system as recommended below, according to the maximum output power of the communications equipment.
