Specifications - ADC RF Signal Management SignalOn Series Specification Sheet

SignalOn
RF Signal Management
Actives: Power Supply Modules
O r d e r i n g I n f o r m a t i o n
Description
Power Supply Modules
AC to DC
DC to DC

Specifications

PeRFoRMANCe ATTRiBUTe
input voltage
efficiency
output voltage
output power
Amplifiers supported
Redundancy
operating temperature
Dimensions
Power connector
Test points
Fan
Alarm relays
TTL contacts
NeBS
w w w . a d c . c o m
Series
®
90-264 Vac, 50/60 Hz
75% nominal
24 Vdc ± 5%
200W (24 Vdc @ 8.33 Amps)
Up to nine 30 dB amplifiers
Yes, dual load sharing
0 - 50° C
8.55"H x 1.67"W x 12.96"D
gold-on-gold, slide-on contacts
24 Vdc output test points
Field replaceable unit
Fan fail, output power fail
Remote inhibit, input power
fail, output power fail
Meets NEBS Level 3
• + 1 - 9 5 2 - 9 3 8 - 8 0 8 0
AC-DC
• 1 - 8 0 0 - 3 6 6 - 3 8 9 1

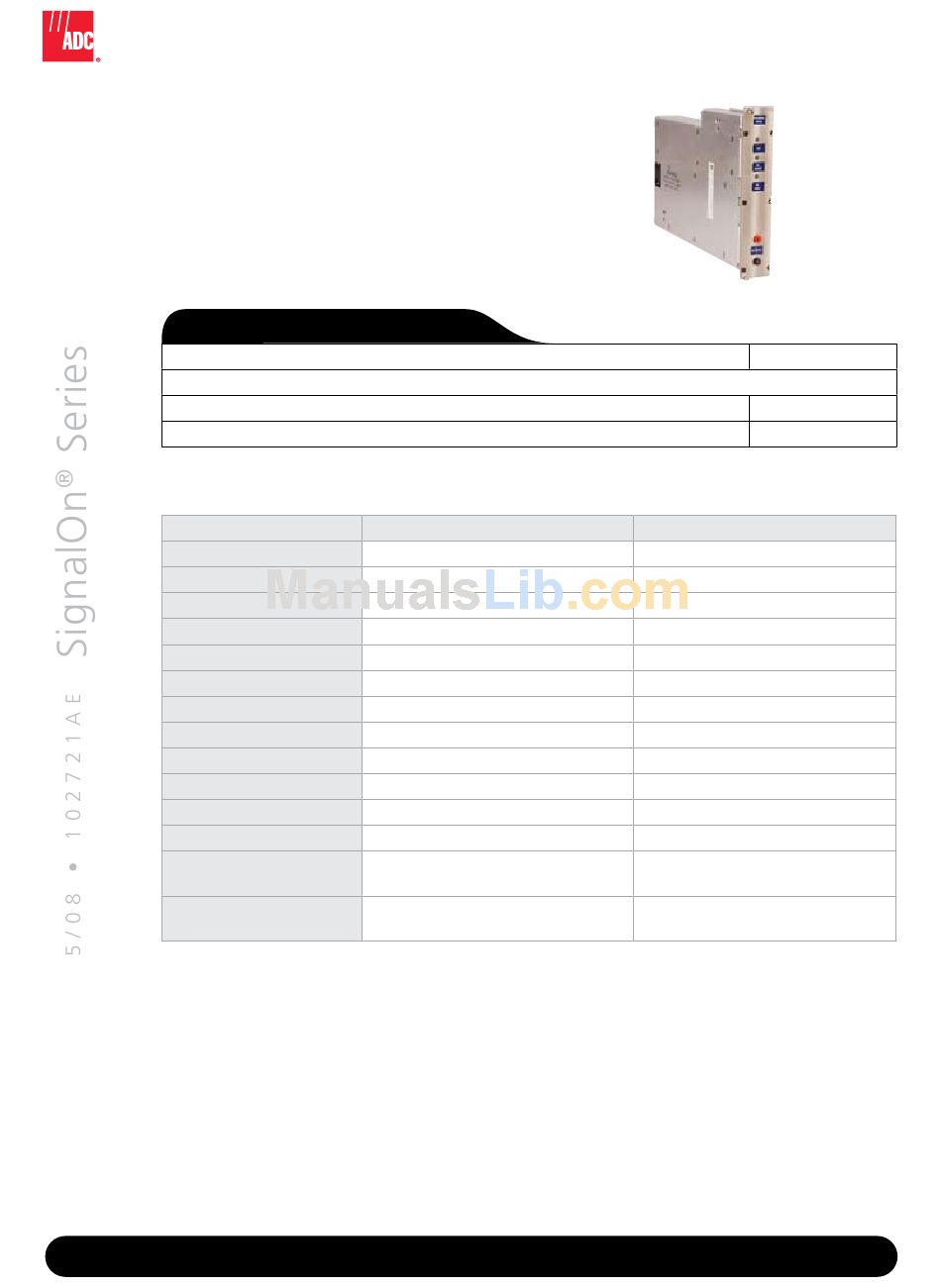

Power Supply
(front view)
Catalog Number
N-MVUVAC
N-MV48DC
DC-DC
36-72 Vdc nominal
80% nominal
24 Vdc ± 5%
192W (24 Vdc @ 8 Amps)
Up to nine 30 dB amplifiers
Yes, dual load sharing
0 - 50° C
8.55"H x 1.67"W x 12.96"D
gold-on-gold, slide-on contacts
24 Vdc output test points
Field replaceable unit
Fan fail, output power fail
Remote inhibit, input power
fail, output power fail
Meets NEBS Level 3
12
