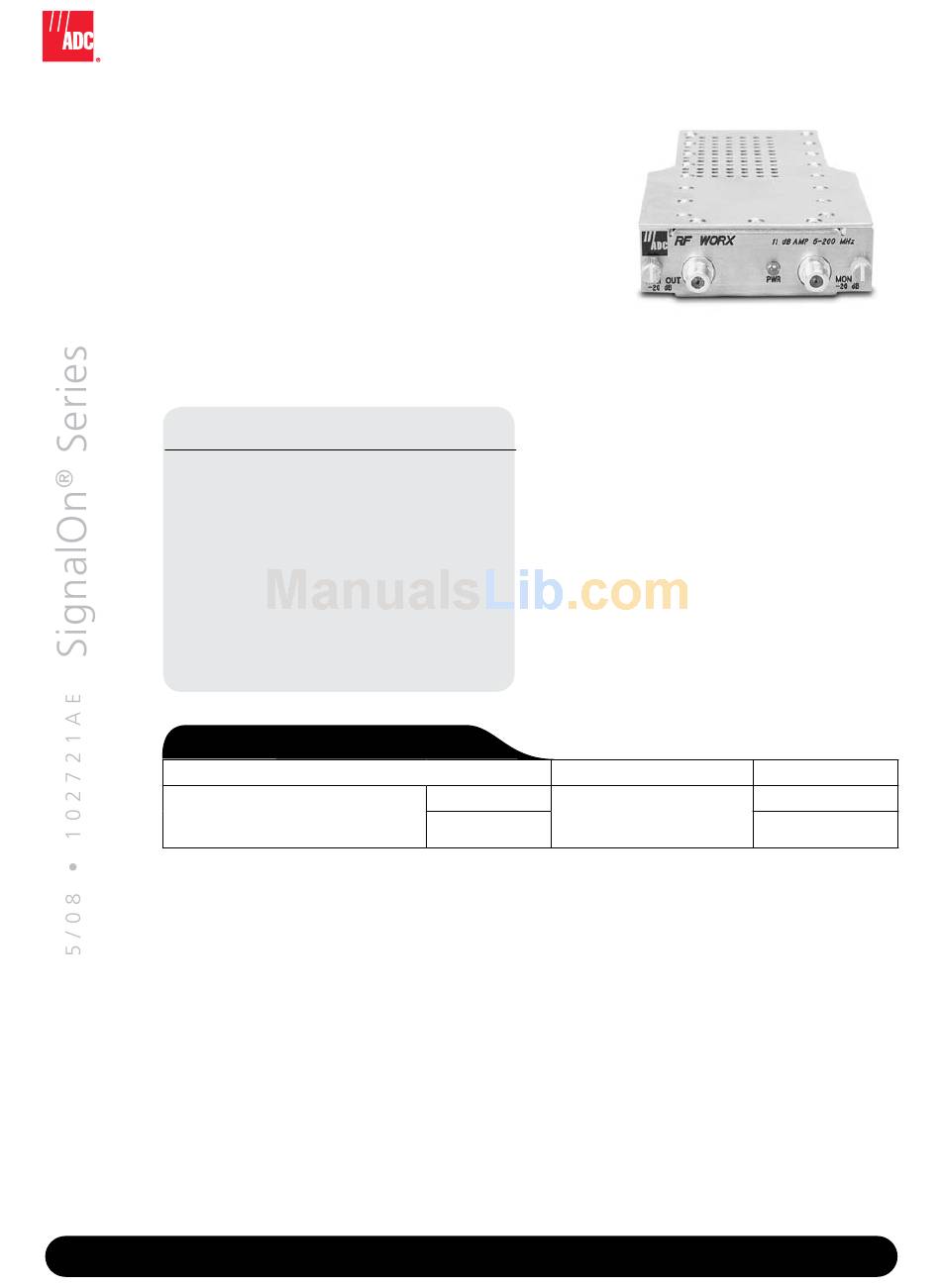

ADC RF Signal Management SignalOn Series Specification Sheet page 14

SignalOn
RF Signal Management
Actives: Reverse Path Amplifier Modules
ADC's Return Path Amplifier was designed
specifically to solve problems particular to your
environment. Providing greater density, unparalleled
cable management, greater functionality and
redundant powering, the return path amplifier
is part of the system approach to integrating all
signal management functions in a common format
and modular system.
To mount modules in SignalOn chassis use these
amplifiers in conjunction with N-ACC-BRKT-RA
(mounts 1 or 2 amps) – see page 16.
Features
• Fixed 22 dB
• Low distortion characteristics
• Low noise figure
• 5-200 MHz bandwidth
• Two 20 dB monitor ports (input and output)
• BNC or F connectors
• AC or DC powering
• Power redundancy (optional)
O r d e r i n g I n f o r m a t i o n
Description
Reverse Path Amplifier Modules
22 dB Fixed Gain
w w w . a d c . c o m
Series
®
BNC connectors
F connectors
• + 1 - 9 5 2 - 9 3 8 - 8 0 8 0
Reverse Path Amplifier
Dimensions (H x W x D)
57 mm x 31 mm x 203 mm
(2.25" x 1.2" x 8.0")
• 1 - 8 0 0 - 3 6 6 - 3 8 9 1
Catalog Number
RFX-AMP-22B
RFX-AMP-22F
14
