SignalOn
RF Signal Management
Passives: Conditioning and Monitor Modules
Features
• Typically placed at the input to the forward
path optical transmitter, this module allows
for conditioning and grooming of the RF
signal gain and slope. It is designed as 1:1
input to output with two MBB circuits in
series for pad and EQ placement.
• -20 dB front facing monitor port
• NEBS Level 3 compliant
O r d e r i n g I n f o r m a t i o n
Description
Conditioning and Monitor Modules; triple circuit, 20 dB, 0 dB default
BNC connector
F connector
w w w . a d c . c o m
Series
®
Attenuation
In

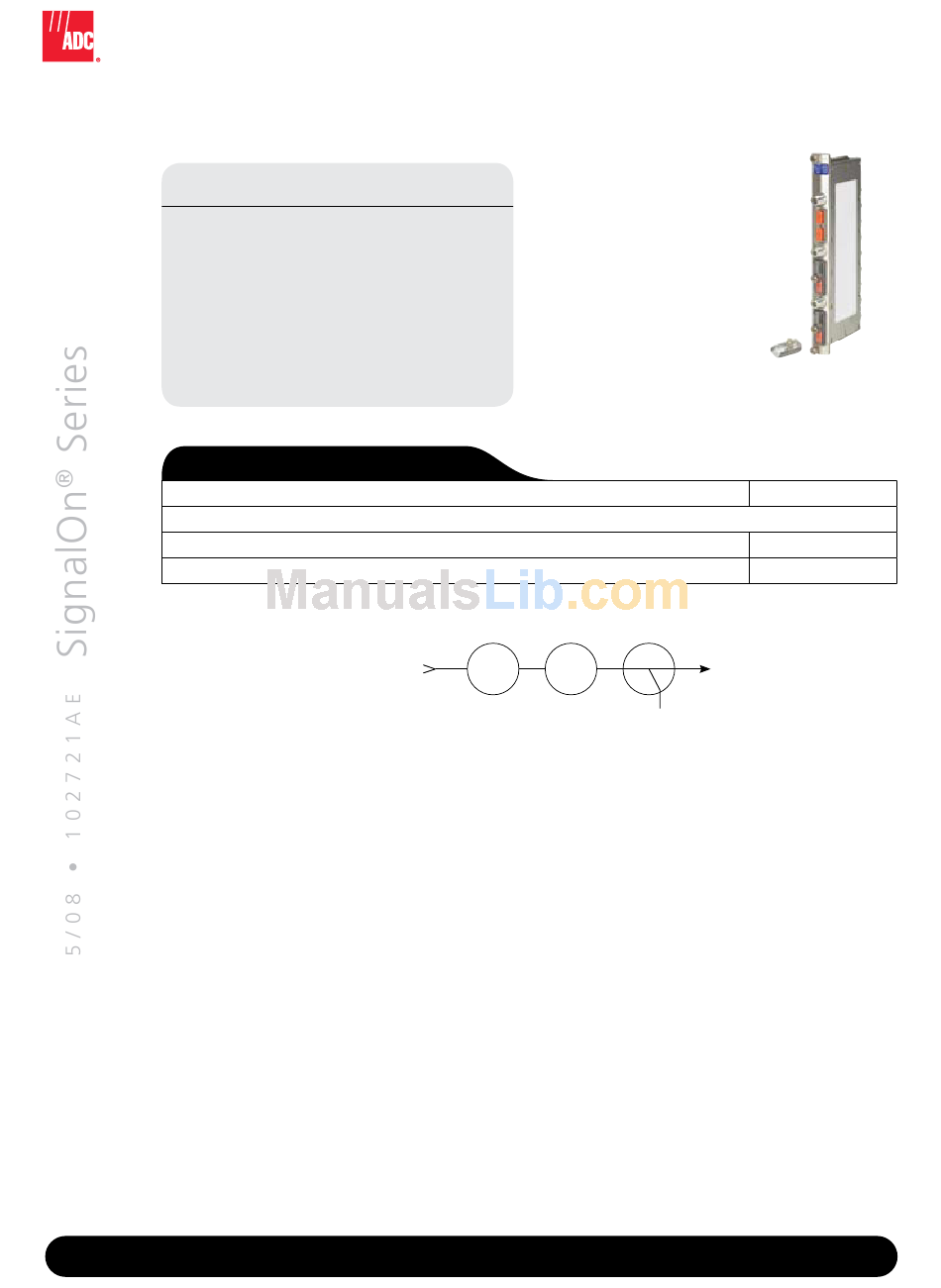

Conditioning and monitor module schematic
• + 1 - 9 5 2 - 9 3 8 - 8 0 8 0
Equalization
Pad (EQ) Pad
-20 dB
(monitor)
• 1 - 8 0 0 - 3 6 6 - 3 8 9 1
Triple C & M
F-Connectors
Catalog Number
N-MMB320FM0
N-MMF320FM0
Out
