Features; Specifications - ADC HiGain H2TU-R-402 List 7A Quick Installation

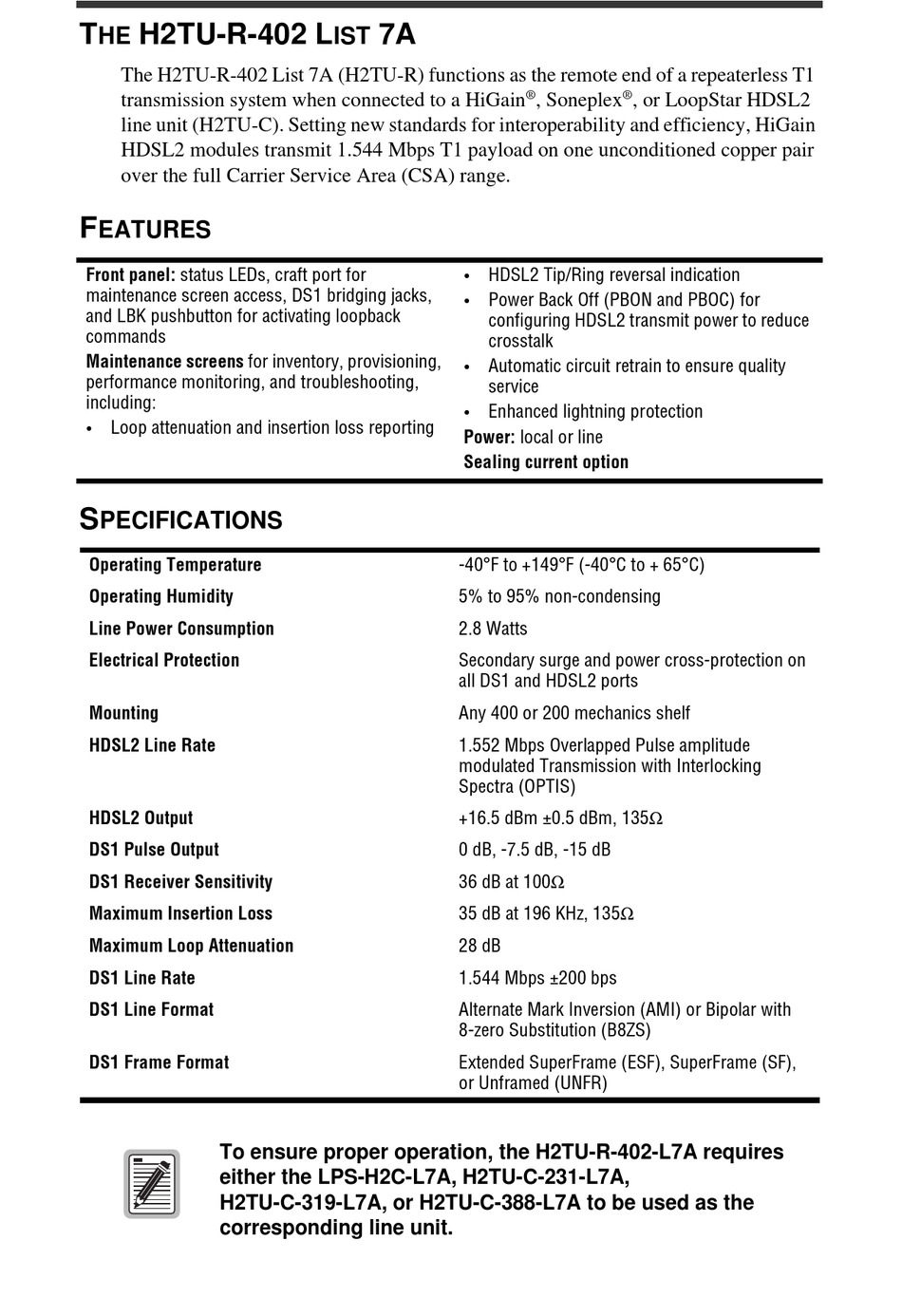

T H2TU-R-402 L
HE
The H2TU-R-402 List 7A (H2TU-R) functions as the remote end of a repeaterless T1
transmission system when connected to a HiGain
line unit (H2TU-C). Setting new standards for interoperability and efficiency, HiGain
HDSL2 modules transmit 1.544 Mbps T1 payload on one unconditioned copper pair
over the full Carrier Service Area (CSA) range.
F
EATURES
Front panel: status LEDs, craft port for
maintenance screen access, DS1 bridging jacks,
and LBK pushbutton for activating loopback
commands
Maintenance screens for inventory, provisioning,
performance monitoring, and troubleshooting,
including:
• Loop attenuation and insertion loss reporting
S
PECIFICATIONS
Operating Temperature
Operating Humidity
Line Power Consumption
Electrical Protection
Mounting
HDSL2 Line Rate
HDSL2 Output
DS1 Pulse Output
DS1 Receiver Sensitivity
Maximum Insertion Loss
Maximum Loop Attenuation
DS1 Line Rate
DS1 Line Format
DS1 Frame Format
To ensure proper operation, the H2TU-R-402-L7A requires
either the LPS-H2C-L7A, H2TU-C-231-L7A,
H2TU-C-319-L7A, or H2TU-C-388-L7A to be used as the
corresponding line unit.
7A
IST
• HDSL2 Tip/Ring reversal indication
• Power Back Off (PBON and PBOC) for
configuring HDSL2 transmit power to reduce
crosstalk
• Automatic circuit retrain to ensure quality
service
• Enhanced lightning protection
Power: local or line
Sealing current option
-40°F to +149°F (-40°C to + 65°C)
5% to 95% non-condensing
2.8 Watts
Secondary surge and power cross-protection on
all DS1 and HDSL2 ports
Any 400 or 200 mechanics shelf
1.552 Mbps Overlapped Pulse amplitude
modulated Transmission with Interlocking
Spectra (OPTIS)
+16.5 dBm ±0.5 dBm, 135Ω
0 dB, -7.5 dB, -15 dB
36 dB at 100Ω
35 dB at 196 KHz, 135Ω
28 dB
1.544 Mbps ±200 bps
Alternate Mark Inversion (AMI) or Bipolar with
8-zero Substitution (B8ZS)
Extended SuperFrame (ESF), SuperFrame (SF),
or Unframed (UNFR)
® ®
, Soneplex , or LoopStar HDSL2
