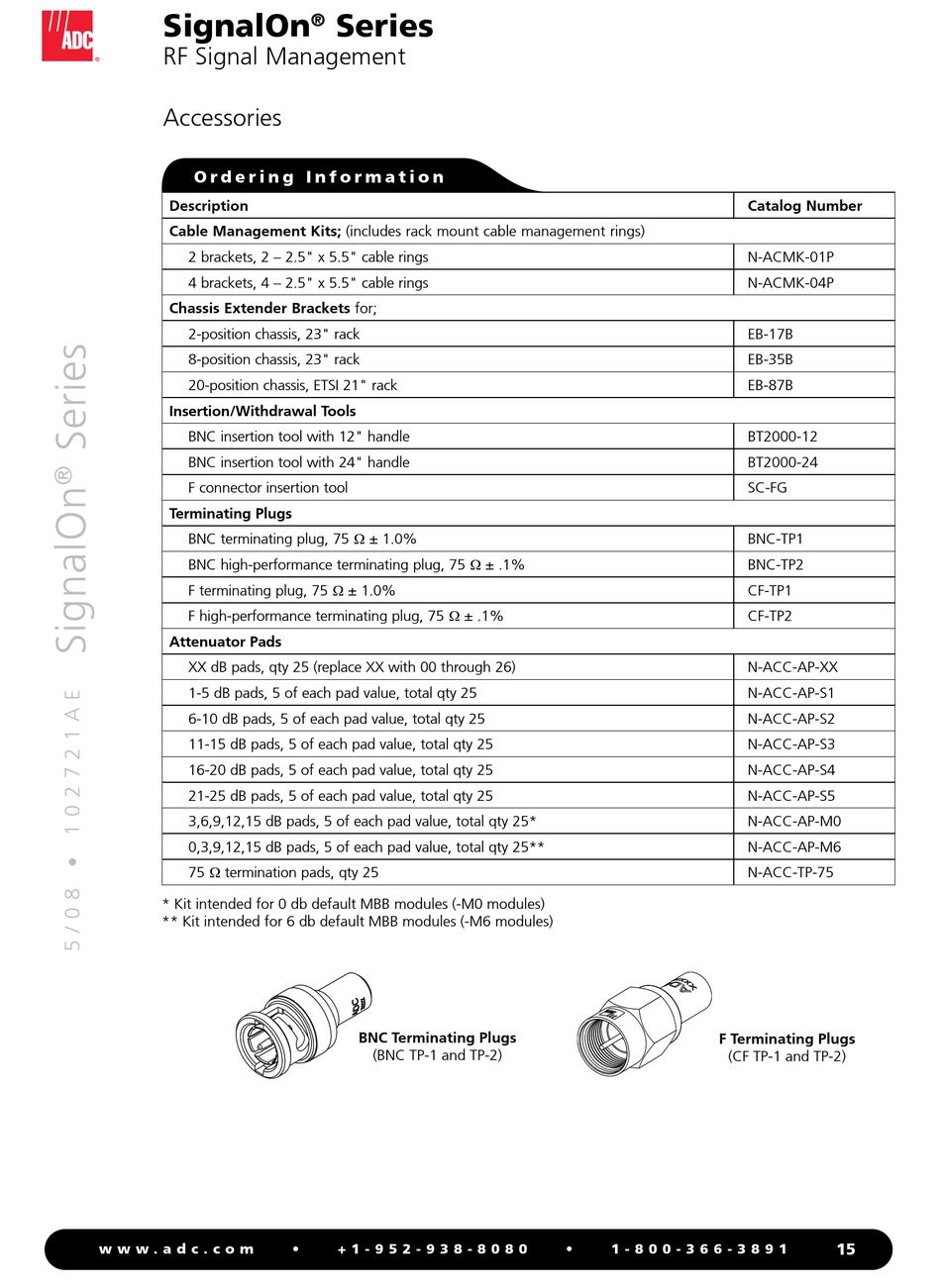

ADC RF Signal Management SignalOn Series Specification Sheet page 15

SignalOn
RF Signal Management
Accessories
O r d e r i n g I n f o r m a t i o n
Description
Cable Management Kits; (includes rack mount cable management rings)
2 brackets, 2 – 2.5" x 5.5" cable rings
4 brackets, 4 – 2.5" x 5.5" cable rings
Chassis extender Brackets for;
2-position chassis, 23" rack
8-position chassis, 23" rack
20-position chassis, ETSI 21" rack
insertion/Withdrawal Tools
BNC insertion tool with 12" handle
BNC insertion tool with 24" handle
F connector insertion tool
Terminating Plugs
BNC terminating plug, 75 W ± 1.0%
BNC high-performance terminating plug, 75 W ± .1%
F terminating plug, 75 W ± 1.0%
F high-performance terminating plug, 75 W ± .1%
Attenuator Pads
XX dB pads, qty 25 (replace XX with 00 through 26)
1-5 dB pads, 5 of each pad value, total qty 25
6-10 dB pads, 5 of each pad value, total qty 25
11-15 dB pads, 5 of each pad value, total qty 25
16-20 dB pads, 5 of each pad value, total qty 25
21-25 dB pads, 5 of each pad value, total qty 25
3,6,9,12,15 dB pads, 5 of each pad value, total qty 25*
0,3,9,12,15 dB pads, 5 of each pad value, total qty 25**
75 W termination pads, qty 25
* Kit intended for 0 db default MBB modules (-M0 modules)
** Kit intended for 6 db default MBB modules (-M6 modules)
w w w . a d c . c o m
Series
®
BNC Terminating Plugs
(BNC TP-1 and TP-2)
• + 1 - 9 5 2 - 9 3 8 - 8 0 8 0
F Terminating Plugs
(CF TP-1 and TP-2)
• 1 - 8 0 0 - 3 6 6 - 3 8 9 1
Catalog Number
N-ACMK-01P
N-ACMK-04P
EB-17B
EB-35B
EB-87B
BT2000-12
BT2000-24
SC-FG
BNC-TP1
BNC-TP2
CF-TP1
CF-TP2
N-ACC-AP-XX
N-ACC-AP-S1
N-ACC-AP-S2
N-ACC-AP-S3
N-ACC-AP-S4
N-ACC-AP-S5
N-ACC-AP-M0
N-ACC-AP-M6
N-ACC-TP-75
