SEW-Eurodrive MOVIDRIVE system Product Manual page 282

Installation
8

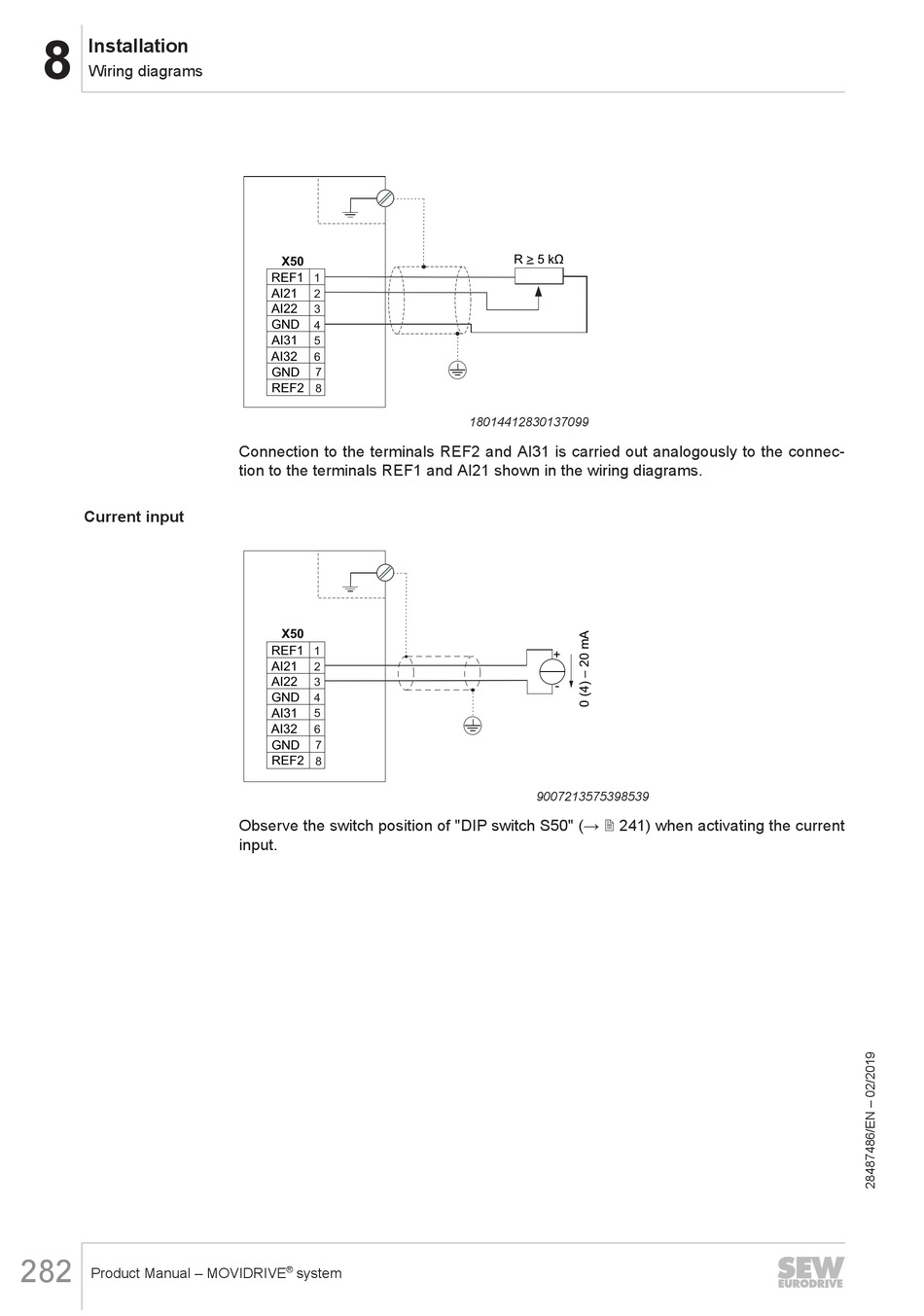

Wiring diagrams
Current input
282
Product Manual – MOVIDRIVE
X50
REF1
1
AI21
2
AI22
3
GND
4
AI31 5
AI32
6
GND 7
REF2
8
Connection to the terminals REF2 and AI31 is carried out analogously to the connec-
tion to the terminals REF1 and AI21 shown in the wiring diagrams.
X50
REF1
1
AI21
2
AI22
3
GND
4
AI31
5
AI32
6
GND
7
REF2
8
Observe the switch position of "DIP switch S50" (→ 2 241) when activating the current
input.
®
system
R > 5 kΩ
18014412830137099
+
-
9007213575398539
