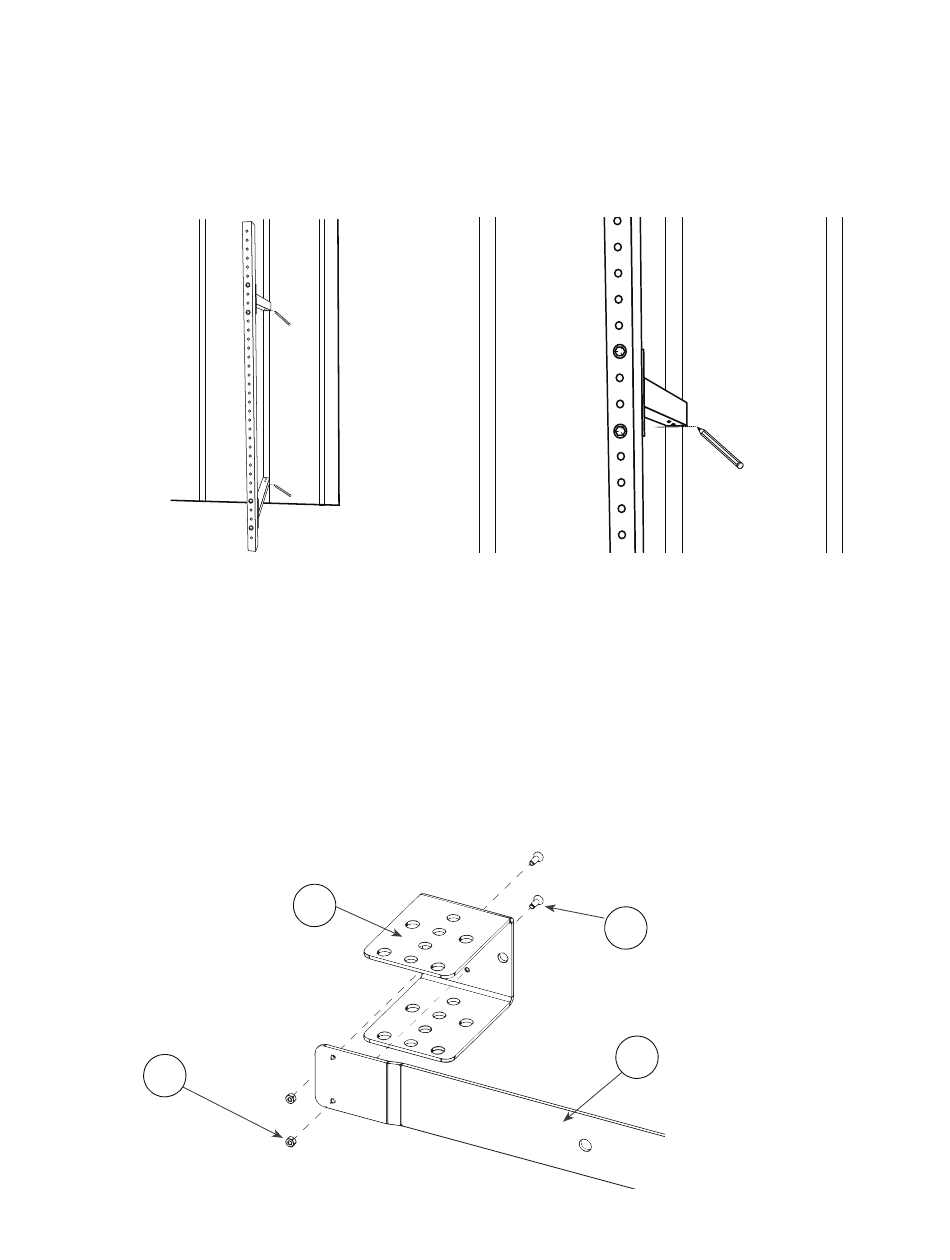

Determine wall bracket heights

1. Once the cross members are attached to the uprights, set one upright against the wall (as it
will be when in use) and align with one of the outermost studs.
2. With both cross members (of the same upright) flush to the wall, take a pencil and mark
where the bottom of each cross member touches the wall
3. Repeat on other side, then lay the uprights down and out of the way once again

Assemble wall brackets

1. Attach two C Brackets (3) using four Tap Screws (6) and four Small Nuts (14) to the Wall
Plate (4)
2. Be sure the C Brackets (3) are placed behind the Wall Plate (4). When secured, the back of
the wall bracket should be flush
3. Repeat with other C Brackets and Wall Plate
4. Once both Wall Plates (4) have the C Brackets (3) attached, they will be referred to as the
upper/lower wall brackets (they are interchangeable)
