PRx Performance Profile PRO Installation Instructions Manual

90” rack with kipping bar
Hide thumbs Also See for Profile PRO:

Advertisement

Quick Links

Download this manual
Tool List
•
15/16" Open End Wrench
•
7/16" Open End Wrench
•
1/2" Open End Wrench
•
15/16" Socket
•
1/2" Socket
•
Ratchet
•
4' Level
•
Plumb Bob
•
7/32" Drill Bit
•
Cordless Drill
•
Impact Driver
•
Stud Finder
•
Tape Measure
•
Pencil

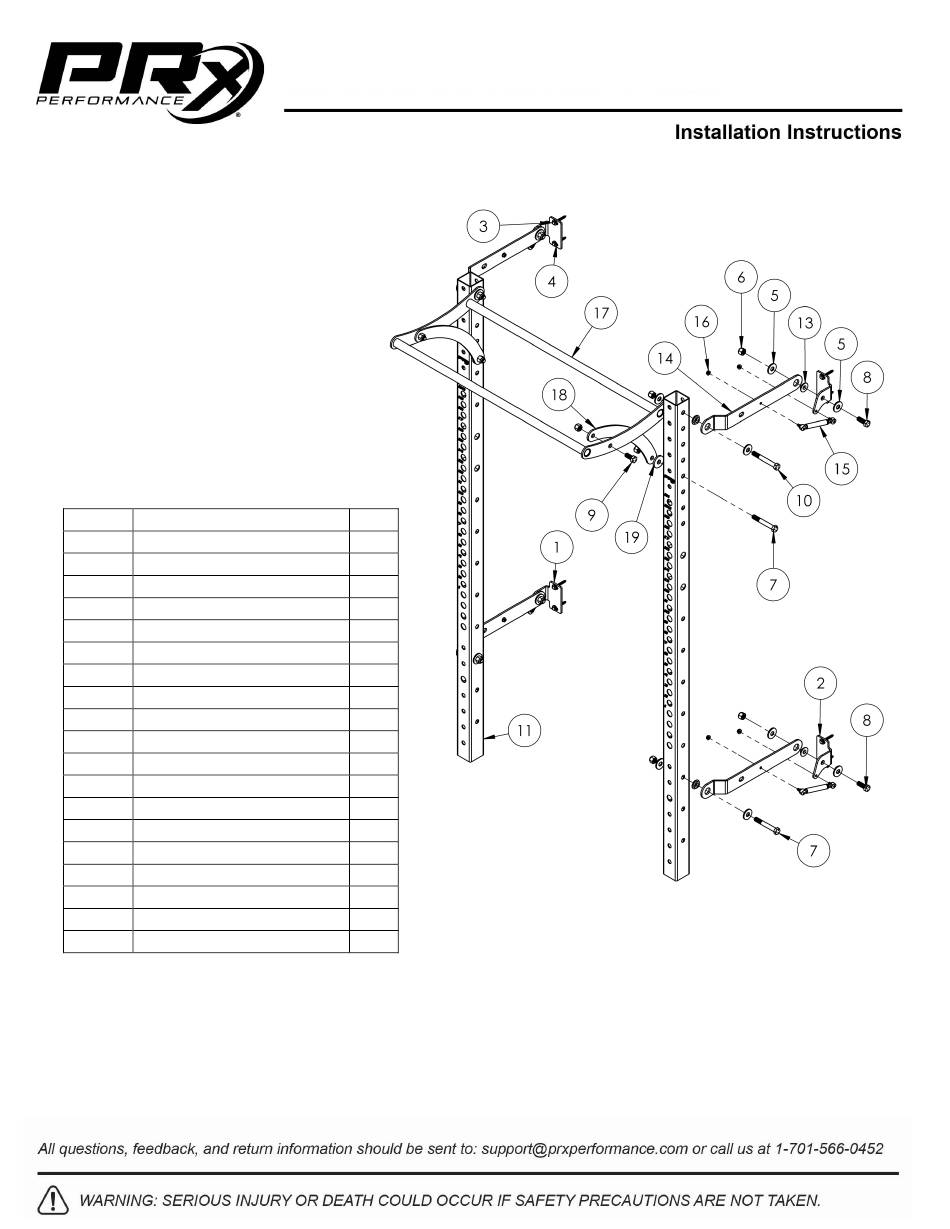

Item # Description
1
Left Wall Bracket
2
Right Wall Bracket
3
5/16" x 2-1/2" Lag Screw 8
4
5/16" Flat Washer
5
5/8" Flat Washer
6
5/8" Lock Nut
7
5/8" x 4-1/2" Hex Bolt
8
5/8" x 1-3/4" Hex Bolt
9
5/8" x 1-1/2" Hex Bolt
10
5/8" x 5" Hex Bolt
11
90" Upright
12
Bent Hitch Pin
13
Plastic Spacer
14
Linkage Arm
15
Gas Shocks
16
Flange Nuts
17
Kipping Bar
18
Kipping Bar Arm
19
Kipping Bar Spacer
• This installation requires two people.
• Standard installation is designed for ceilings 108" or taller. If your ceilings are
shorter than 108" please refer to the table on page 3 and use the bracket height
measurements that correspond to your ceiling height.
90" Profile® PRO Rack with Kipping Bar
Qty.
2
2
8
16
12
4
4
2
2
2
1
(not shown)
8
4
4
8
1
2
2
060223_Rev. 1
