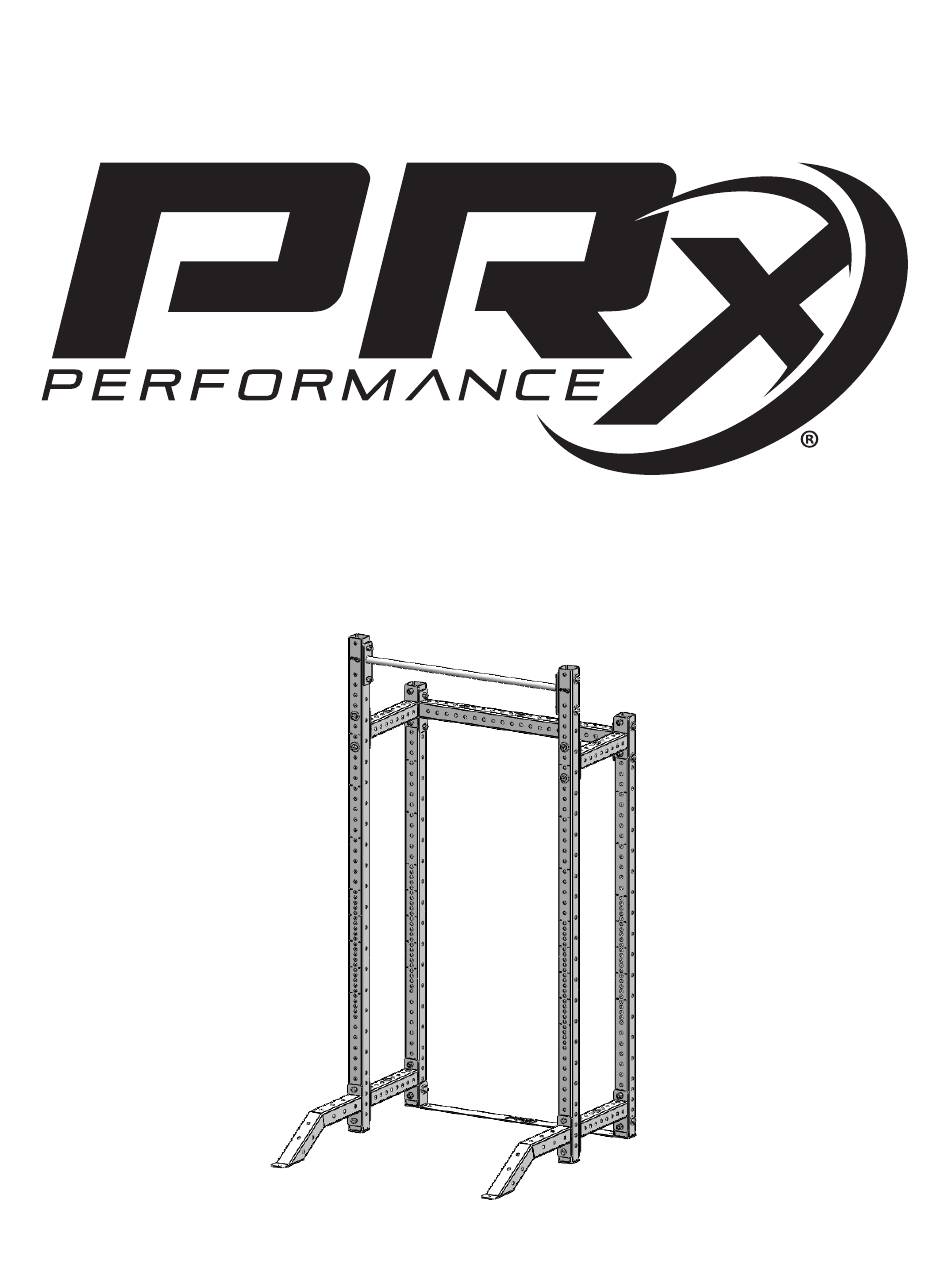

- Page 1 Build Limitless Half-Rack ® Build Limitless Half-Rack support@prxperformance.com support@prxperformance.com 701-566-0452...
- Page 2 Models covered in these instructions Models Covered in These Instructions Half Rack-95/95 Half Rack-81/81 Half Rack-95/81 (701) 566-0452...
- Page 3 1-701-566-0452 LIMITED LIFETIME WARRANTY: This product is warranted by PRx Performance LLC, to the original user-owner only, against defective materials or workmanship for the lifetime of the product. During the warranty period, or “lifetime” of the product, at the discretion of PRx management, if the product is found to be defective, it will be repaired or replaced without charge.
- Page 4 Half-Rack Exploded Assembly View Half-Rack Exploded Assembly View (701) 566-0452...
- Page 5 Half-Rack Assembly Instructions 1. Assemble the sides and attach the feet. Lay the components on the floor, making sure the logos on the uprights will face out once fully assembled (Figures 1 & 2). Start of Half-Rack Assembly 1. First make sure all your components and hardware are accounted for, according to the Parts List on 2.
- Page 6 Half-Rack Assembly Instructions 1. Starting with the pull-up bar, assemble the crossmembers that connect the sides of the rack as shown in figures below. A second person may be needed to hold the already assembled frame up while you attach the pull-up bar to the other side. 1.
- Page 7 Half-Rack Assembly Instructions Half-Rack Final Assembly 1. Attach rear crossmember. As with the side crossmembers, be sure to orient the rear 1. With the pull-up bar attached to both sides of the rack, it should be able to stand on it’s own. Now you crossmember correctly so it’s at the right height and for future accessories to fit properly attach the rear top crossmember and the spreader plate down at the bottom.
