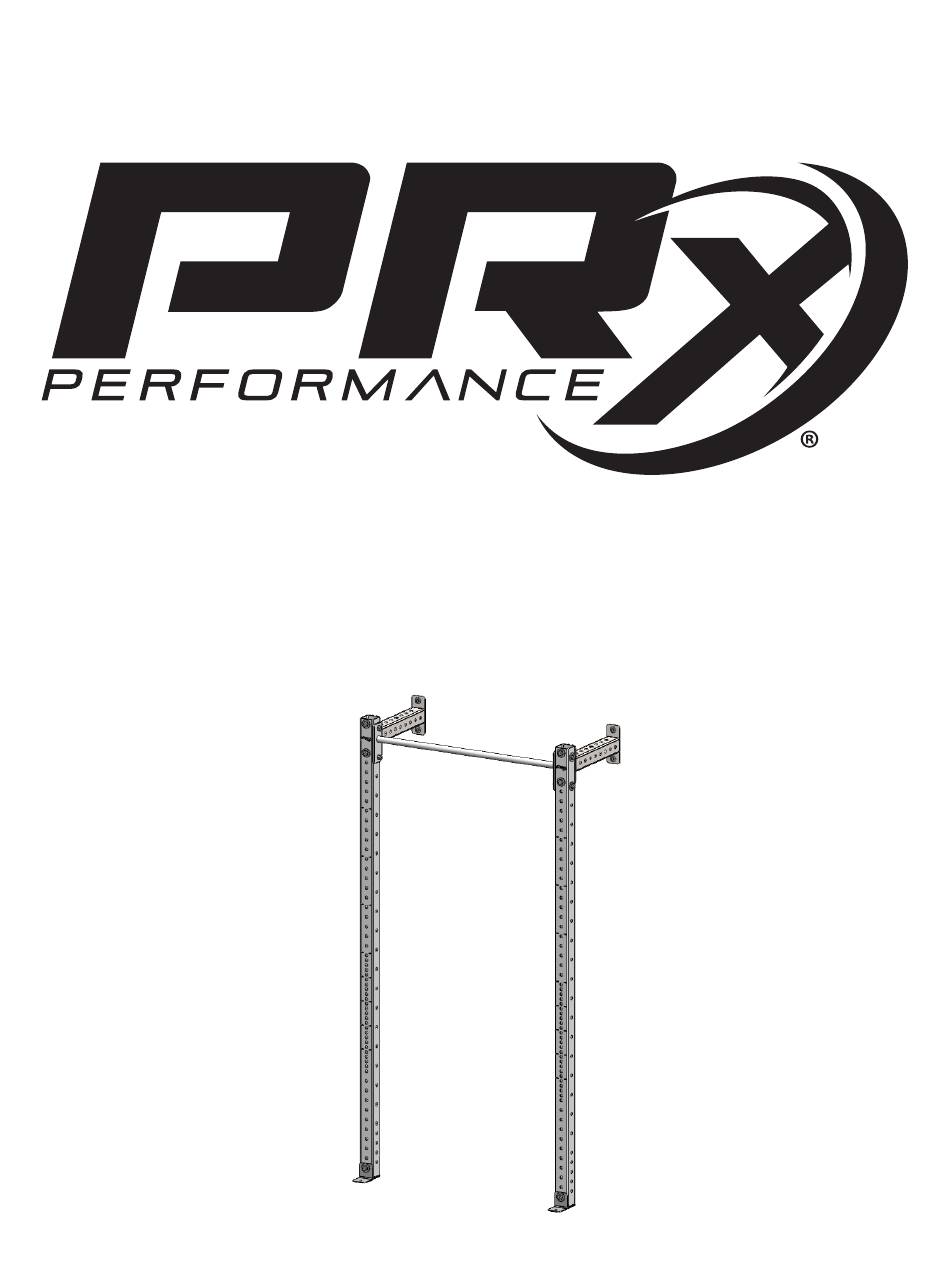

- Page 1 Build Limitless ® Build Limitless Wall-Mount Rack Wall-Mount Rack support@prxperformance.com support@prxperformance.com 701-566-0452...
- Page 2 1-701-566-0452 LIMITED LIFETIME WARRANTY: This product is warranted by PRx Performance LLC, to the original user-owner only, against defective materials or workmanship for the lifetime of the product. During the warranty period, or “lifetime” of the product, at the discretion of PRx management, if the product is found to be defective, it will be repaired or replaced without charge.
- Page 3 Build Limitless Wall-Mount Rack ® Wall Mount Rack Parts and Tools Needed All Parts & Tools Needed 5,6,11 4,8,9 4,8,9 5,6,7 4,8,9 5,6,11 5,6,7 Part List Tools Needed Additional Items Needed Item # Description Tools Needed: 1. 15/16” Open-End (not included): ITEM# DESCRIPTION Upright, 95”...
- Page 4 Wall-Mount Rack Assembly Instructions Wall-Mount Rack Assembly Instructions 1. Lay the uprights and crossmembers on the floor with the logo facing out and attach the crossmembers (Figure 1). 1. Attach the crossmembers to the uprights as shown in Figure 1. It may be easiest to lay the uprights and crossmembers on the floor with the logo side facing out.
- Page 5 Wall-Mount Rack Assembly Instructions Wall-Mount Rack Assembly Instructions 1. Attach the pull-up bar to the uprights (Figure 1). A second person may be needed at this time. 1. Attach the pull-up bar to the uprights as shown in Figure 1. A second person may be needed at this 2.
- Page 6 Ledger Board Installation Ledger board is not included. Your 2x10 ledger board should be a minimum length of 50”, and long enough to attach to at least 3 studs (for safety and security). 1. Locate studs in the area that you want to place your rack. 2.
- Page 7 Attach Rack to Ledger Board 1. Once the ledger board is installed, place your assembled rack against the ledger board as shown below. WARNING: Make sure you have enough ceiling height to rotate the rack up against the Attach Rack to Ledger Board ledger board without hitting the ceiling.
