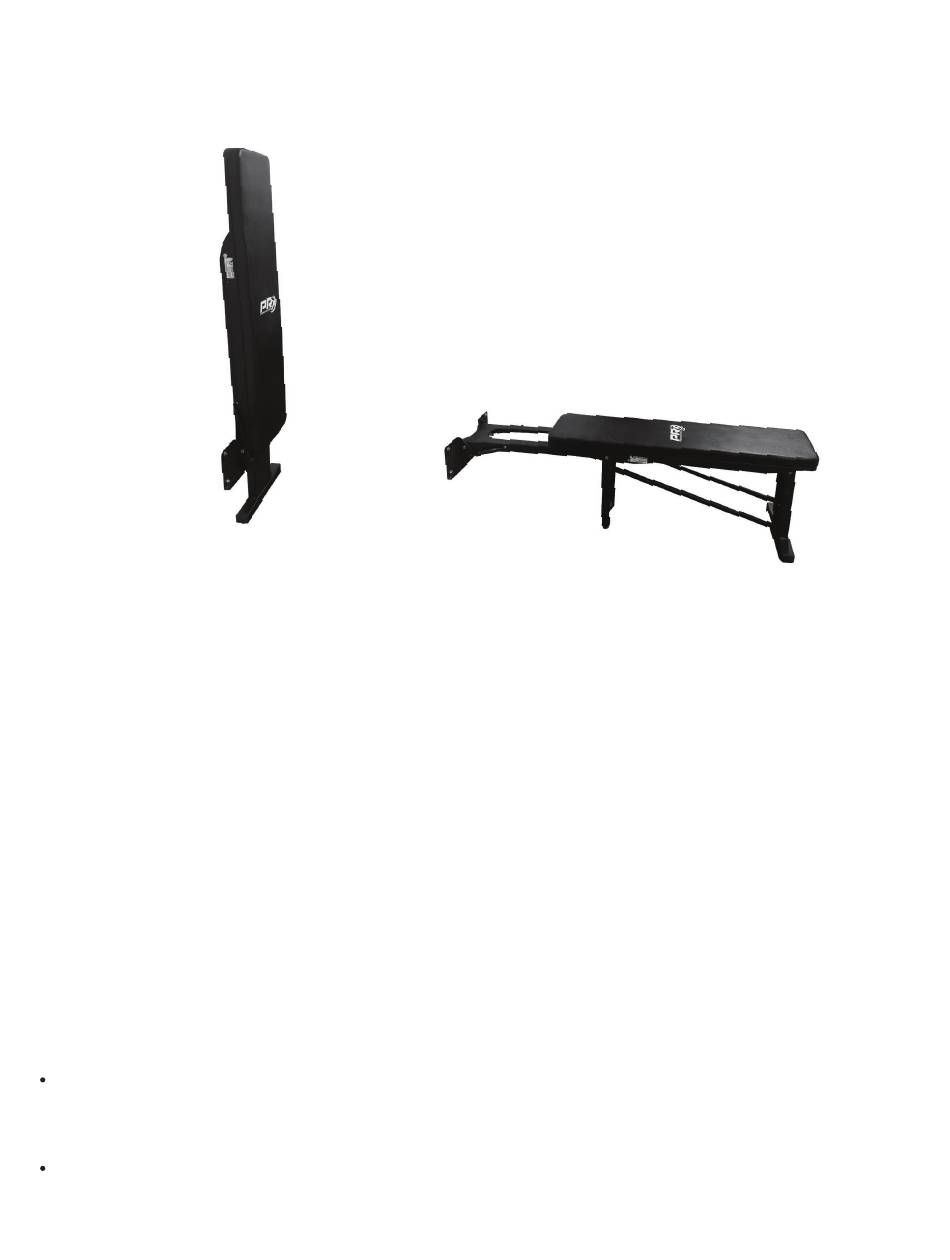

The PRx Performance Folding Bench easily folds out for use, and folds flat to
the wall when stored

Product Description:

1. Bench Length 45"
2. Bench Width 12"
3. Wall Bracket 18" long (mounts at approximately 11" from the ground, up to 17.5")
4. Bench distance from wall: 18" — plenty of room for a spotter!
5. Bench height: 19" standard bench height from floor
6. When down and ready to use, the Bench extends out 63" into the room
7. Stowed height: 61"
8. Stowed depth: 5.5"
In order to install the PRx Folding Bench with your new rack please be sure your rack
installation meets the following requirements:
Center of the lower wall bracket is not mounted between 9.25" and 19.25" from
the ground. Measure from center of bracket/lag bolts holes — see measurement
recommendations on page 4
Cross members are attached to the C Bracket using Set #2 — see page 7
Folding Bench
You can find the PRx Wall-Mounted
Folding Bench at prxperformance.com
