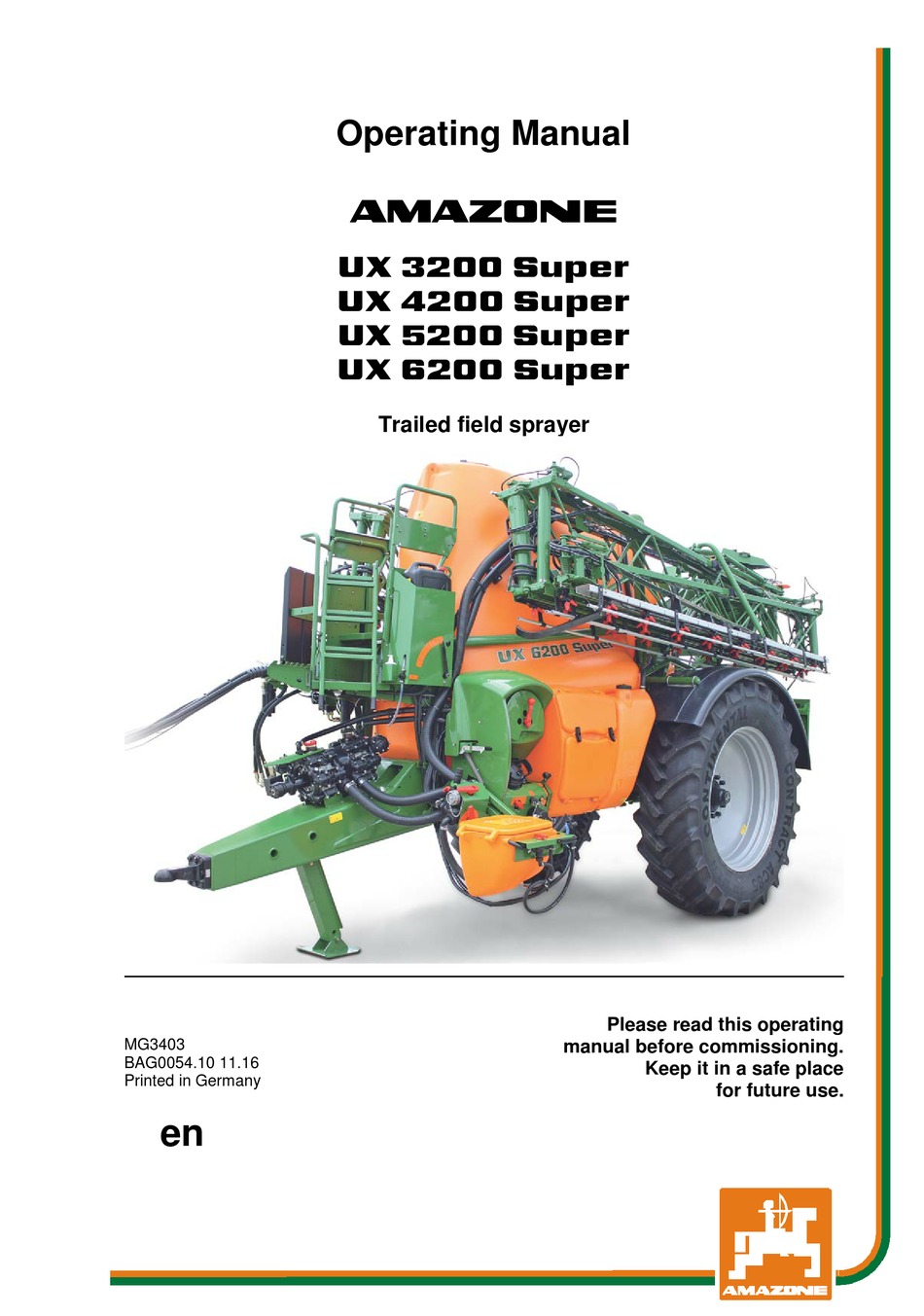

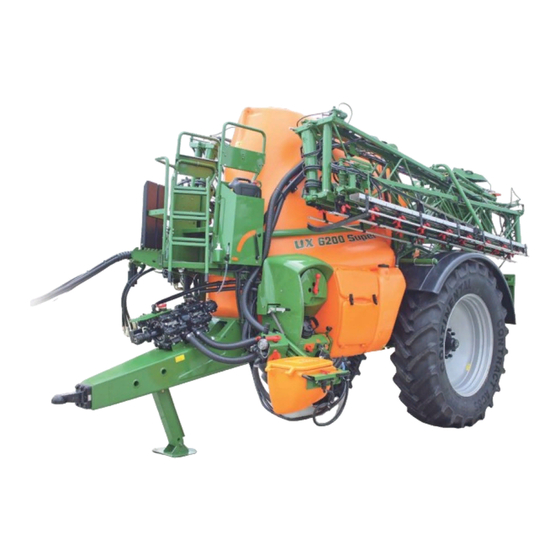

Page 1 Operating Manual UX 3200 Super UX 4200 Super UX 5200 Super UX 6200 Super Trailed field sprayer Please read this operating MG3403 manual before commissioning. BAG0054.10 11.16 Keep it in a safe place Printed in Germany for future use.
Page 2 Reading the instruction Manual and following it should seem to be in- convenient and superfluous as it is not enough to hear from others and to realize that a machine is good, to buy it and to believe that now everything should work by itself.
Page 3 + 49 (0)5405 501-0 E-mail: amazone@amazone.de Spare part orders Spare parts lists are freely accessible in the spare parts portal at www.amazone.de. Please send orders to your AMAZONE dealer. Formalities of the operating manual Document number: MG3403 Compilation date: 09.15 ...
Page 4 We update our operating manuals regularly. Your suggestions for improvement help us to create ever more user-friendly manuals. AMAZONEN-WERKE H. DREYER GmbH & Co. KG Postfach 51 D-49202 Hasbergen, Germany Tel.: + 49 (0)5405 501-0 E-mail: amazone@amazone.de UX Super BAG0054.10 11.16...
Page 5: Table Of Contents
Table of Contents User Information ..................10 Purpose of the document ....................... 10 Locations in the operating manual ..................10 Diagrams ..........................10 General safety instructions ............... 11 Obligations and liability ......................11 Representation of safety symbols ..................13 Organisational measures ....................... 14 Safety and protection equipment ...................
Page 6 Table of Contents 4.14 Noise emissions data ......................56 4.15 Required tractor equipment ....................57 Construction and function of the basic machine ........58 Functionality .......................... 58 Control terminal ........................59 PTO shaft ..........................62 5.3.1 Coupling the PTO shaft ......................64 5.3.2 Uncoupling the PTO shaft .....................
Page 7 Table of Contents AMASPRAY 5.30 ........................ 102 Construction and function of the sprayer boom ........103 Super-S boom ........................ 107 6.1.1 Unlocking and locking the transport safety catch ..............108 Super-S boom, folding via the tractor control unit ............109 6.1.2 Super-L boom .........................
Page 8 Table of Contents 10.2.1 Calculating the filling and refill quantity ................162 10.2.2 Filling table for remaining spray area .................. 163 10.2.3 Fill the spray liquid tank via the suction port and blend in the agent at the same time ..164 10.2.4 Adding the agent using ECO-Fill ..................
Page 9 Table of Contents 12.14 Calibrate the flow meter ....................... 220 12.15 Field sprayer calibration ....................... 221 12.16 Nozzles ..........................223 12.16.1 Fitting the nozzle ........................223 12.16.2 Removing the diaphragm valve if the nozzle is dripping ............. 223 12.17 Line filter ..........................224 12.18 Instructions on testing the field sprayer ................
Page 10: User Information
User Information User Information The User Information section provides information on use of the oper- ating manual. Purpose of the document This operating manual • describes the operation and maintenance of the machine. • provides important information on safe and efficient handling of the machine.
Page 11: General Safety Instructions
General safety instructions General safety instructions This section contains important information on safe operation of the machine. Obligations and liability Comply with the instructions in the operating manual Knowledge of the basic safety information and safety regulations is a basic requirement for safe handling and fault-free machine operation. Obligations of the operator The operator is obliged only to let those people work with/on the ma- chine who...
Page 12 General safety instructions Risks in handling the machine The machine has been constructed to the state-of-the art and the recognised rules of safety. However, operating the machine may cause risks and restrictions to • the health and safety of the user or third parties, •...
Page 13: Representation Of Safety Symbols
General safety instructions Representation of safety symbols Safety instructions are indicated by the triangular safety symbol and the highlighted signal word. The signal word (danger, warning, cau- tion) describes the severity of the risk, and carries the following mean- ing: DANGER Indicates an immediate high risk which will result in death or serious physical injury (loss of body parts or long term damage)
Page 14: Organisational Measures
General safety instructions Organisational measures The operator must provide the necessary personal protective equip- ment as per the information provided by the manufacturer of the crop protection agent to be used, such as: • Chemical-resistant gloves, • Chemical-resistant overalls, • Water-resistant footwear, •...
Page 15: User Training
General safety instructions User training Only those people who have been trained and instructed may work with/on the machine. The operator must clearly specify the responsi- bilities of the people charged with operation and maintenance work. People being trained may only work with/on the machine under the supervision of an experienced person.
Page 16: Danger From Residual Energy
General safety instructions Danger from residual energy Note that there may be residual mechanical, hydraulic, pneumatic and electrical/electronic energy on the machine. Use appropriate measures to inform the operating personnel. You can find detailed information in the relevant sections of this operating manual.
Page 17: Spare And Wear Parts And Aids
Immediately replace any machine parts which are not in a perfect state. Only use genuine AMAZONE spare and wear parts, or those ap- proved by AMAZONEN-WERKE, so that the type approval remains valid according to the national and international regulations. The use...
Page 18: Warning Symbols And Other Signs On The Machine
General safety instructions 2.13 Warning symbols and other signs on the machine Always keep all the warning symbols on the machine clean and in a legible state. Replace illegible warning symbols. You can obtain the warning symbols from your dealer using the order number (e.g. MD 075).
Page 19: Positions Of Warning Symbols And Other Labels
General safety instructions 2.13.1 Positions of warning symbols and other labels Warning symbols The following diagrams show the arrangement of the warning symbols on the machine. Fig. 1 Fig. 2 UX Super BAG0054.10 11.16...
Page 20 General safety instructions Fig. 3 Fig. 4 UX Super BAG0054.10 11.16...
Page 21 General safety instructions Order number and explanation Warning symbols MD 076 Danger of your hand or arm being drawn in or caught by power-driven, unprotected chain or belt drives. This danger causes serious injuries, including loss of body parts such as the hand or arm. Never open or remove protective equipment from chains or belt drives, •...
Page 22 General safety instructions MD 084 Risk of crushing the entire body due to standing in the swivel range when machine parts are being lowered. This danger can cause extremely serious and potentially fatal injuries. • It is forbidden to stand in the swivel range of the machine when machine parts are being lowered.
Page 23 General safety instructions MD 096 Danger from escaping high-pressure hydrau- lic fluid due to leaking hydraulic hose lines. This danger may cause serious injuries, perhaps even resulting in death, if escaping high-pressure hydraulic fluid passes through the skin and into the body.
Page 24 General safety instructions MD 102 Danger from intervention in the machine, e.g. installation, adjusting, troubleshooting, cleaning, maintaining and repairing, due to the tractor and the machine being started unintentionally and rolling. These dangers can cause extremely serious and potentially fatal injuries. •...
Page 25 General safety instructions MD 118 This symbol indicates the maximum drive speed (540 rpm) and direction of rotation of the drive shaft on the machine side. MD 153 This pictogram indicates a hydraulic oil filter. MD 159 Only fill the hand wash tank with clear fresh wa- ter, and never with crop protection agent.
Page 26 General safety instructions MD 174 Danger from unintended continued movement of the machine. Causes serious, potentially fatal injuries any- where on the body. Secure the machine against unintended contin- ued movement before uncoupling the machine from the tractor. To do this, use the parking brake and/or the wheel chock(s).
Page 27 General safety instructions MD 224 Risk of contact with hazardous materials due to improper use of clear fresh water from the hand wash tank. This danger can cause extremely serious and potentially fatal injuries. Never use the clear fresh water from the hand wash tank as drinking water.
Page 28: Potential Risks From Not Observing The Safety Instructions
General safety instructions ME 710 In transport position, unplug the lower hole on the mechanical stand. ME 985 The system pressure is 10 bar. 2.14 Potential risks from not observing the safety instructions Non-compliance with the safety information • can pose both a danger to people and also to the environment and machine.
Page 29: Safety Information For Users
General safety instructions 2.16 Safety information for users WARNING Risk of crushing, cutting, being trapped or drawn in, or impact through inadequate roadworthiness and operational safety. Before starting up the machine and the tractor, always check their roadworthiness and operational safety. 2.16.1 General safety and accident prevention information •...
Page 30 General safety instructions • When coupling and uncoupling machines, move the support equipment (if available) to the appropriate position (stability). • When actuating the support equipment, there is a risk of injury from crushing and cutting points. • Be particularly careful when coupling the machine to the tractor or uncoupling it from the tractor.
Page 31 General safety instructions Machine transportation • When using public highways, national road traffic regulations must be observed. • Before moving off, check: ο the correct connection of the supply lines ο the lighting system for damage, function and cleanliness ο the brake and hydraulic system for visible damage ο...
Page 32: Hydraulic System
• Replace the hydraulic hose lines if they are damaged or worn. Only use original AMAZONE hydraulic hose lines. • The hydraulic hose lines should not be used for longer than six years. This period includes any storage time of a maximum of two years.
Page 33: Electrical System
General safety instructions 2.16.3 Electrical system • When working on the electrical system, always disconnect the battery (negative terminal). • Only use the prescribed fuses. If fuses are used that are too highly rated, the electrical system will be destroyed – risk of fire. •...
Page 34: Universal Joint Shaft Operation
General safety instructions 2.16.4 Universal joint shaft operation • Use only the PTO shafts prescribed by the AMAZONEN-WERKE factories, equipped with the proper safety devices. • Also read and follow the operating manual from the PTO shaft manufacturer. • The protective tube and PTO shaft guard must be undamaged, and the shield of the tractor and machine universal joint shaft must be attached and be in proper working condition.
Page 35: Coupled Machines
General safety instructions • After removing the PTO shaft, attach the protective sleeve to the universal joint shaft stub. • When using the travel-dependent universal joint shaft, note that the universal joint shaft speed depends on the drive speed, and that the direction of rotation reverses when you drive in reverse.
Page 36: Tyres
General safety instructions Pneumatic braking system • Before coupling the machine, clean the sealing rings on the hose couplings of the supply and brake line. • Only move off with the machine connected when the pressure gauge on the tractor shows 5.0 bar. •...
Page 37: Field Sprayer Operation
Observe the information in the German Plant Protection Law. • Never open lines which are under pressure. • Only use genuine AMAZONE replacement hoses which stand up to chemical, mechanical and thermal requirements. Only use hose clamps made from V2A for installation. •...
Page 38: Cleaning, Maintenance And Repairs
• Spare parts must meet at least the specified technical require- ments of AMAZONEN-WERKE. This is ensured through the use of genuine AMAZONE spare parts. • When repairing field sprayers which have been used for liquid fertiliser application with ammonium nitrate / urea solution, ob-...
Page 39: Loading And Unloading
Loading and unloading Loading and unloading Loading and unloading with a tractor WARNING There is a risk of accident if the tractor is unsuitable and the machine brake system is not connected to the tractor or filled. • Couple the machine to the tractor correctly before loading the machine onto a transport vehicle or unloading it from a transport vehicle.
Page 40: Product Description
Product description Product description This section: • provides a comprehensive overview of the machine structure. • provides the names of the individual modules and controls. If possible, read this section when actually at the machine. This helps you to understand the machine better. Overview of the assemblies Fig.
Page 41 Product description Fig. 8 (1) Flushing water tank 2 (5) Pump equipment (2) Flushing water tank 2, filling opening (6) Wheel chocks (3) Hydraulic stand (7) Hydraulic block with system setting screw, job computer (4) Parking brake (8) Oil filter with clogging indicator UX Super BAG0054.10 11.16...
Page 42: Safety And Protection Equipment
Product description Safety and protection equipment • Transport locking mechanism (Fig. 9/1) to prevent the Super-L boom from folding out unintentionally Fig. 9 • Transport locking mechanism (Fig. 10) to prevent the Super-S boom from folding out unintentionally Fig. 10 •...
Page 43: Liquid Circuit
Product description Liquid circuit Fig. 14 1. Spray liquid tank 14. Filling sieve (A) Pressure equipment 4-way switch tap 2. Flushing water tank 15. Inner pre-cleaning nozzles (B) Internal cleaning switch tap 3. Flushing water drain plug 16. Pressure control valve (C) External cleaning switch tap 4.
Page 44: Supply Hoses Between The Tractor And The Machine
Product description Supply hoses between the tractor and the machine Supply hoses in parking position: Fig. 15/... (1) Hydraulic hose lines (depending on equip- ment) (2) Electric cable for lighting (3) Machine cable with machine connector for control terminal (4) Brake line with coupling head for air brake (not shown) Brake line with connection to hydraulic brake...
Page 45: Intended Use
Compliance with all the instructions in this operating manual. • Execution of inspection and maintenance work. • Exclusive use of genuine AMAZONE spare parts. Other uses to those specified above are forbidden and shall be con- sidered as improper. For any damage resulting from improper use: •...
Page 46: Device Inspections
However their service life is reduced by use at low temperatures (e.g. AUS in frosty conditions). The materials and components used for AMAZONE field sprayers are safe for liquid fertiliser. UX Super BAG0054.10 11.16...
Page 47: Danger Areas And Danger Points
Product description Danger areas and danger points The danger area is the area around the machine in which people can be caught by: • work movements made by the machine and its tools • materials or foreign bodies thrown out of the machine •...
Page 48: Rating Plate And Ce Mark
Product description 4.10 Rating plate and CE mark The rating plate shows: • Vehicle- / machine ID no.: • Type • Basic weight kg • Permissible support load kg • Permissible rear axle load kg • Permissible system pressure bar •...
Page 49: Maximum Permissible Application Rate
Product description 4.12 Maximum permissible application rate The permissible application rate of the implement is limited by: • the legally required agitator capacity. The permissible application rate is of particular importance for materials that require a high agitating intensity. • the technical maximum application rate of 200 l/min (without HighFlow).
Page 50: Technical Data
Product description 4.13 Technical Data Total UX measurements including Super-S sprayer boom [mm] 4.13.1 UX 3200: 6250 – 6500 2400 UX 4200/5200/6200: 6850 - 7300 Total UX measurements including Super-L sprayer boom [mm] 4.13.2 UX 3200/4200/ 5200: 2400 UX 3200: 6400 –...
Page 51: Data Sheet
Product description 4.13.3 Data sheet Type UX 3200 4200 5200 6200 Basic weight [kg] 3000 - 4000 3100 - 4100 3200 - 4200 3300-4300 Spray liquid tank Actual volume 3600 4600 5600 6560 Nominal volume 3200 4200 5200 6200 Flushing water tank Filling height from the mainte- 1180 1080...
Page 52: Weights Basic Machine And Modules
Product description 4.13.4 Weights basic machine and modules The basic weight (empty weight) is calculated from the total individual weights of the modules. Typ UX Super 3200 4200 5200 6200 [kg] 1192 1262 1308 1390 Basic machine Axle Adjusting axles, unbraked Adjusting axles, braked Axle, fixed Axle, controlled (7.5t / 6.5t)
Page 53: Permissible Total Weight And Tyres
Product description Sprayer boom weights • Super-S booms: Working width 21/15 Weight [kg] • Super-L booms: Working 27/19/10 27/22/15 27/21/15 28/15 width Weight [kg] Working 30/15 36/30/24 width Weight [kg] 1008 1012 1032 1136 1136 1138 4.13.5 Permissible total weight and tyres The permissible total weight of the machine depends on the •...
Page 54 Product description Permitted axle load Adjusting axle Fixed axle 73301905/ 73301904 73301002/ 73301003/ 936610 / 936611 / Order no. 931215 938071 938172 938171 931306 931305 936612 936613 Construction Fixed Fixed Controlled Controlled Fixed Controlled Fixed Controlled type unbraked 1500 - 1500 - 1500 - 1800 -...
Page 55 Product description Load capacity for each pair of wheels 25 km/h 40 km/h 50 km/h Load Tyres index permitted load permitted load permitted load capacity [kg] capacity [kg] capacity [kg] at air pressure [b] at air pressure [b] at air pressure [b] 5880 5300 LI 142 A8...
Page 56: Noise Emissions Data
Product description Driving with reduced tyre pressure • The tyre pressure given in table 1 is required for achieving the permitted load capacity. • If the tyre pressure is lower, the load capacity will also be lower, as shown in table 2. If this is the case, please also note the reduced payload of the machine.
Page 57: Required Tractor Equipment
Product description 4.15 Required tractor equipment To be used with the machine, the tractor must fulfil the performance requirements and be equipped with the required electrical, hydraulic and brake connections for the brake system. Tractor engine power UX 3200 from 75 kW (100 hp) upwards UX 4200 from 85 kW (115 hp) upwards UX 5200...
Page 58: Construction And Function Of The Basic Machine
Construction and function of the basic machine Construction and function of the basic machine Functionality Fig. 21/... Via the suction chest (G), suction line (2) and suction filter (3), the spraying pump (1) sucks • the spray liquid from the spray liquid tank (4). •...
Page 59: Control Terminal
Construction and function of the basic machine Control terminal The relevant operation modes are set centrally on the control termi- nal, using the various control elements. Fig. 22 (D) Injector switch tap (1) Suction filter (E) Ring line / canister flushing switch tap (2) Pressure filter (F) Evacuate induction bowl / Ecofill switch tap (3) Flushing water tank filling connection...
Page 60 Construction and function of the basic machine • - Pressure equipment switch tap ο Spraying operation ο Cleaning ο Injector mode ο Fill spray liquid tank • - Internal cleaning switch tap • - External cleaning switch tap Fig. 23 •...
Page 61 Construction and function of the basic machine • - Suction chest manual operation ○ Sucking from flushing water tank ○ Sucking from spray tank ο Sucking via suction hose When operating the suction chest manually, there may be a squeaking noise.
Page 62: Pto Shaft
Construction and function of the basic machine PTO shaft The wide angle PTO shaft takes on the power transmission between tractor and machine. Fig. 29: • Wide angle PTO shaft (860 mm) for straight drawbar and hitch draw bar • Russia only: Wide angle PTO shaft (860 mm) for straight drawbar and hitch draw bar...
Page 63 Construction and function of the basic machine WARNING Risk of being caught and drawn in by unguarded PTO shaft parts in the power transmission area between the tractor and driven machine. Work only when the drive between the tractor and driven machine is fully guarded.
Page 64: Coupling The Pto Shaft
Construction and function of the basic machine 5.3.1 Coupling the PTO shaft WARNING Risk of crushing or impact if there is insufficient clearance when coupling the PTO shaft. Couple the PTO shaft with the tractor before coupling the machine with the tractor. This will ensure the necessary clearance for safe coupling of the PTO shaft.
Page 65: Uncoupling The Pto Shaft
Construction and function of the basic machine 5.3.2 Uncoupling the PTO shaft WARNING Risk of crushing or impact if there is insufficient clearance when uncoupling the PTO shaft. First uncouple the machine from the tractor before uncoupling the PTO shaft from the tractor. This will ensure the necessary clearance for safe uncoupling of the PTO shaft.
Page 66: Hydraulic Connections
Construction and function of the basic machine Hydraulic connections • All hydraulic hose lines are equipped with grips. Coloured markings with a code number or code letter have been applied to the gripping sections in order to assign the respective hydraulic function to the pressure line of a tractor control unit! Films are stuck on the implement for the markings that illustrate the respective hydraulic function.
Page 67 Construction and function of the basic machine Profi-folding Folding using Function tractor control Hose identification units Permanent oil circulation Single acting Pressure-free return flow Load sensing control line WARNING Risk of infection from hydraulic fluid escaping at high pressure. When coupling/uncoupling the hydraulic hose line, ensure that the hydraulic system is not under pressure on the tractor or machine side.
Page 68: Coupling Hydraulic Hose Lines
Construction and function of the basic machine 5.4.1 Coupling hydraulic hose lines WARNING Risk of crushing, cutting, being trapped or drawn in, or impact through faulty hydraulic functions when hydraulic hose lines are incorrectly connected. When coupling the hydraulic hose lines, please note the coloured markings on the hydraulic plugs.
Page 69: Air Pressure Brake System
Construction and function of the basic machine Air pressure brake system Keeping to the service interval is essential for proper functioning of the dual circuit service brake system. Fig. 31/... 1. Braking force regulator with hand lever for adjusting the braking force manually. The braking force is set in 4 stages, depending on the load status of the trailed sprayer.
Page 70: Automatic Load-Dependent Braking Force Regulator (Alb)
Construction and function of the basic machine • Single circuit pneumatic braking system Fig. 34/... (1) Hose coupling (black) Fig. 34 5.5.1 Automatic load-dependent braking force regulator (ALB) For machines with ALB, the braking force is regulated according to the tank fill level via a float in the tank. WARNING Risk of crushing, cutting, being caught or drawn in, or impact through incorrectly functioning brake system.
Page 71: Coupling The Brake System
Construction and function of the basic machine 5.5.2 Coupling the brake system WARNING Risk of crushing, cutting, being caught or drawn in, or impact through incorrectly functioning brake system. • When coupling the brake and supply line, ensure that ο the sealing rings on the hose couplings are clean.
Page 72: Uncoupling The Brake System
Construction and function of the basic machine 5.5.3 Uncoupling the brake system WARNING Risk of crushing, cutting, being caught or drawn in, or impact through from the accidentally rolling machine caused by unin- tentionally releasing the service brake. Dual-circuit pneumatic braking system: •...
Page 73: Hydraulic Service Brake System
Construction and function of the basic machine Hydraulic service brake system To control the hydraulic service brake system, the tractor requires hydraulic braking equipment. 5.6.1 Coupling the hydraulic service brake system Only couple clean hydraulic couplings. 1. Remove the protective caps. 2.
Page 74 Construction and function of the basic machine For this purpose: 1. Secure the pulling cable to a fixed point on the tractor. 2. Apply the tractor brake with the tractor en- gine running and hydraulic brake connect- → Pressure accumulator of the emergency brake is being charged.
Page 75: Parking Brake
Construction and function of the basic machine Parking brake When the parking brake is on, it secures the uncoupled machine against unintentional rolling. The parking brake is operated by turning the crank, which in turn operates the spindle and bowden cable. •...
Page 76: Foldable Wheel Chocks
Construction and function of the basic machine Foldable wheel chocks Each of the wheel chocks is attached with a thumb bolt on the right side of the implement. Fig. 39 Put the foldable wheel chocks into operating posi- tion by pressing the button and apply directly on the wheels before uncoupling.
Page 77: Safety Chain For Implements Without Brake System
Construction and function of the basic machine Safety chain for implements without brake system Implements without a brake system or with a single-line brake system must be equipped with a safety chain in compliance with local country regulations. The safety chain must be correctly fixed to a suitable position on the tractor before transporting.
Page 78: Drawbars
Construction and function of the basic machine 5.10 Drawbars If using automatic trailer couplings, check that the connection is se- cure after coupling. If using non-automatic trailer couplings, secure the coupling pin positively after inserting it. • Straight drawbar (Fig. 42) The straight drawbar is fastened in the tractor pin coupling.
Page 79: Autotrail Tracking Control
Construction and function of the basic machine 5.11 AutoTrail tracking control AutoTrail tracking control for automatic, virtually 100% precise tracking captures the position of the angle of the drawbar (Fig. 45/1) to determine the direction of travel of the tractor. If the position of the drawbar deviates from the tractor's central position (drawbar lined up with tractor's direction of travel), AutoTrail realigns...
Page 80 Construction and function of the basic machine DANGER Risk of accident from the machine tipping over. • For transportation, move the steering drawbar/steering axle to the transport position. • Transportation while AutoTrail is switched on is prohibited. On the control terminal, for this purpose: 1.
Page 81: Autotrail Steering Drawbar
Construction and function of the basic machine 5.11.1 AutoTrail steering drawbar Fig. 46/... (1) Steering drawbar (2) Control cylinder (3) Ball valve for locking the hydraulic cylinder during transportation 0 → operation locked I → operation unlocked Fig. 46 DANGER The use of the AutoTrail steering drawbar •...
Page 82: Autotrail Steering Axle
Construction and function of the basic machine 5.11.2 AutoTrail steering axle Fig. 47/... (1) Following steering axle (2) Control cylinder For machines with • a track width less than 1800 mm, • tyre widths greater than 500 mm: Fig. 47 1.
Page 83: Tracking Control Via Tractor Control Unit
Construction and function of the basic machine 5.12 Tracking control via tractor control unit When working on sloping terrain (sprayer slips off), • the tractor control unit blue can be used from the comfort of the tractor seat to manually steer the steering drawbar so that it is tracking precisely.
Page 84: Hydraulic Stand
Construction and function of the basic machine 5.13 Hydraulic stand The hydraulically operated stand (Fig. 50/1) sup- ports the uncoupled trailed sprayer. It is operated via a double-acting control valve. Tractor control unit blue : DANGER When resting the machine on the hydraulic stand, it must not be more than 30°...
Page 85: Spray Liquid Tank
Construction and function of the basic machine 5.15 Spray liquid tank The spray liquid tank is filled via • the filling opening, • the suction hose (optional) on the suction port, • the pressure filling connection (optional) Fig. 54 (1) Spray liquid tank (2) Internal cleaning (3) Hinged/screw lid for filling opening (4) External filling connection...
Page 86: Fill Level Indicator On The Machine
Construction and function of the basic machine 5.15.1 Fill level indicator on the machine The fill level indicator shows the tank capacity [l] in the spray liquid tank The fill level on the machine is shown • electronically (Fig. 87/1) (optional) •...
Page 87: Maintenance Platform With Ladder
Construction and function of the basic machine 5.15.3 Maintenance platform with ladder Maintenance platform with swivel-down ladder for reaching the filling dome. DANGER • Risk of injury from poisonous vapours. Never climb into the spray liquid tank. • Riding on the machine creates a risk of falling. Riding on the field sprayer is prohibited.
Page 88: Suction Port For Filling The Spray Liquid Tank (Optional)
Construction and function of the basic machine 5.15.4 Suction port for filling the spray liquid tank (optional) Fig. 58/... (1) Suction hose (8 m, 3"). (2) Quick coupling. (3) Suction filter for filtering the intake water. (4) Non-return valve. Prevents liquid already in the spray liquid tank from running out if the vacuum suddenly collapses during the filling process.
Page 89: Flushing Water Tank
Construction and function of the basic machine 5.16 Flushing water tank Fig. 61 UX3200 : one flushing water tank (320 l capacity) UX4200/5200/6200 : two connected flushing water tanks. (550 l total capacity). Fig. 61, Fig. 62/… (1) Flushing water tank (2) Screw lid with ventilation (3) Fill level indicator (4) Filling connection...
Page 90: Induction Bowl With Canister Flushing
Construction and function of the basic machine 5.17 Induction bowl with canister flushing Fig. 63/... (1) Swivel-out induction bowl for receiving, dissolving and drawing in crop protection agents and urea. (2) Hinged lid. (3) Handle for swivelling the induction bowl. (4) Spray gun.
Page 91: Filling Connection For Ecofill (Optional)
Construction and function of the basic machine Spray gun for flushing the induction bowl The spray gun is used for flushing the induc- tion bowl with flushing water during or after the flushing process. Secure the spray gun against unin- tentional spraying using the locking mechanism (Fig.
Page 92: Fresh Water Tank
Construction and function of the basic machine 5.19 Fresh water tank Fig. 69/… (1) Fresh water holdertank capacity: 20l) (2) Hose (3) Drain tap for clear fresh water ο for cleaning hands or ο for cleaning the spraying nozzles. (4) Soap dispenser WARNING Danger of poisoning from using unclean water in the fresh water...
Page 93: Pump Equipment
Construction and function of the basic machine 5.21 Pump equipment All components that come into direct contact with crop protection agents are produced from die- cast aluminium with a plastic coating, or from plastic. Based on the current state of knowledge, these pumps are suitable for spreading standard crop protection agents and liquid fertilisers.
Page 94: Filter Equipment
Construction and function of the basic machine 5.22 Filter equipment • Use all the filters provided with the filter equipment. Clean the filters regularly (refer to the "Cleaning" section, page 188). Fault- free field sprayer operation can only be achieved by correct filter- ing of the spray liquid.
Page 95: Self Cleaning Pressure Filter
Construction and function of the basic machine 5.22.3 Self cleaning pressure filter The self cleaning pressure filter (Fig. 74/1) • prevents the nozzle filter upstream of the spraying nozzle from becoming blocked. • has a greater mesh count/inch than the suction filter.
Page 96: Bottom Sieve In The Induction Bowl
Construction and function of the basic machine 5.22.5 Bottom sieve in the induction bowl The bottom sieve (Fig. 76/1) in the induction bowl prevents lumps and foreign bodies from being drawn in. Fig. 76 5.23 Drawbar (optional) The automatic drawbar serves to pull the braked trailers •...
Page 97: Transport And Secure Container (Optional)
Construction and function of the basic machine WARNING Risk of crushing when coupling the machine and standing be- tween the machine and the trailer! Instruct people to leave the danger area between the machine and the trailer before you approach the trailer. Coupling the trailer via the automatic drawbar is a one-man operation.
Page 98: Exterior Wash Down Kit (Optional)
Construction and function of the basic machine 5.25 Exterior wash down kit (optional) Fig. 80/… Exterior wash down kit for cleaning the field sprayer, includes (1) Hose coiler, (2) 20 m pressure hose, (3) Spray gun Operating pressure: 10 bar Water output: 18 l/min Fig.
Page 99: Camera (Optional)
Construction and function of the basic machine 5.26 Camera (optional) The implement can be equipped with (Fig. 82/1 and Fig. 83/1) a cam- era. Features: • Viewing angle of 135° • Heater and lotus coating • Infrared night-view technology • Automatic backlight compensation Super-S-boom Fig.
Page 100: Work Floodlights
Construction and function of the basic machine 5.27 Work floodlights 2 work floodlights on the sprayer boom and 2 work floodlights on the platform. Fig. 84 LED individual nozzle illumination: Fig. 85 2 variants: • Separate power supply from the tractor is required, operation via the dashboard.
Page 101: Comfort Equipment
Construction and function of the basic machine 5.28 Comfort equipment Comfort equipment for implements with control terminal. Comfort equipment functions: • Cleaning – remote-controlled residue dilution and internal cleaning when inter- rupting or stopping spraying, without leaving the tractor. ο Remote-controlled changing from spraying position (Fig.
Page 102: Control Terminal
Construction and function of the basic machine 5.29 Control terminal The following are performed via the control ter- minal: • input of implement-specific data. • input of job-related data. • control of the field sprayer to change the spray rate used in spraying operation. •...
Page 103: Construction And Function Of The Sprayer Boom
Construction and function of the sprayer boom Construction and function of the sprayer boom The proper condition of the sprayer boom and how it is suspended have considerable influence on the distribution accuracy of the spray liquid. With the spraying height of the sprayer boom to the crop set correctly, a complete overlap is achieved.
Page 104 Construction and function of the sprayer boom Folding out and in CAUTION It is prohibited to fold the sprayer boom in and out during travel. DANGER Always maintain an adequate distance from overhead cables when folding the sprayer boom out and in. Contact with overhead cables may lead to fatal injuries.
Page 105 Construction and function of the sprayer boom Swing compensation The control terminal shows when swing compensation (Fig. 89/1) is locked. Fig. 89/… (1) Swing compensation unlocked. (2) Swing compensation locked. For illustration purposes, in this image the pro- tective device has been removed from the swing compensation.
Page 106 Construction and function of the sprayer boom Outer boom locking The outer boom locking mechanisms protect the boom from damage if the outer boom sections come into contact with solid obstructions. The locking mechanism enables the outer boom sec- tion to avoid collision by moving around the ar- ticulated axle in and against the direction of trav- el;...
Page 107: Super-S Boom
Construction and function of the sprayer boom Super-S boom Fig. 91 (4) Outer boom locking, see Seite 106 Fig. 91/... (5) Swing compensation, see page 105. (1) Sprayer boom with spray lines (here: folded boom package). (6) Boom equipment (2) Nozzle protection tube (7) Pressure sensor (3) Spacer Fig.
Page 108: Unlocking And Locking The Transport Safety Catch
Construction and function of the sprayer boom 6.1.1 Unlocking and locking the transport safety catch WARNING Risk of crushing and impact for other road users if the boom accidentally unfolds from the transport position during road transport. Lock the folded boom package in the transport position using the transport safety catch before undertaking road transport.
Page 109: Super-S Boom, Folding Via The Tractor Control Unit
Construction and function of the sprayer boom Super-S boom, folding via the tractor control unit 6.1.2 Profi-folding: See operating manual for software ISOBUS. Preselected folding: depending on the equipment, you must press the "fold sprayer boom" preselection button on the control terminal before activating tractor control unit green, in order to fold out the sprayer boom.
Page 110: Super-L Boom
Construction and function of the sprayer boom Super-L boom Fig. 95 Fig. 95/... (1) Sprayer boom with spray lines (6) Outer boom locking, see Seite 106 (2) Transport safety bow (7) Swing compensation, see page 105 (3) Parallelogram frame for adjusting the height (8) Valve and switch tap for DUS system of the sprayer boom (9) Boom equipment, see Fig.
Page 111 Construction and function of the sprayer boom Unlocking and locking the transport safety catch WARNING Risk of crushing and impact for other road users if the boom accidentally unfolds from the transport position during road transport. Lock the folded boom package in the transport position using the transport safety catch before undertaking road transport.
Page 112: Super-L Boom, Folded Using Tractor Control Unit
Construction and function of the sprayer boom Super-L boom, folded using tractor control unit 6.2.1 Profi-folding: See operating manual for software ISOBUS. Preselected folding: depending on the equipment, you must press the "fold sprayer boom" preselection button on the control terminal before activating tractor control unit green, in order to fold out the sprayer boom.
Page 113: Working With The Sprayer Boom Folded Out On One Side
Construction and function of the sprayer boom Working with the sprayer boom folded out on one side Working with the sprayer boom only folded out on one side is only permissible • with the swing compensation locked. • only if the other boom is folded down as a package from the transport position (Super S boom).
Page 114: Reduction Joint On The Outer Boom (Optional)
Construction and function of the sprayer boom Reduction joint on the outer boom (optional) Using the reduction joint, the outer element of the outer boom can be folded manually to reduce the working width. Case 1: Number of nozzles Number of nozzles on the outer part width section foldable outer element →...
Page 115: Boom Width Reduction (Option)
Construction and function of the sprayer boom Boom width reduction (option) With the boom width reduction, one or two booms can remain folded in during operation depending on the version. In addition, switch on the hydraulic accumulator (optional) as a colli- sion protection.
Page 116: Boom Extension (Option)
Construction and function of the sprayer boom Implements with DistanceControl plus: With reduced working width, install each outer sensor rotated by 180° and disconnect the inner sensor. Fig. 100 Boom extension (option) The boom extension increases the working width infinitely up to 1.20 metres.
Page 117: Hydraulic Tilt Adjustment (Optional)
Construction and function of the sprayer boom Hydraulic tilt adjustment (optional) In unfavourable ground conditions, e.g. when there are ruts of varia- ble depth or when driving with one side of the vehicle in a furrow, the sprayer boom can be aligned parallel to the ground or to the target surface using hydraulic tilt adjustment.
Page 118: Spray Lines And Nozzles
Construction and function of the sprayer boom Spray lines and nozzles The sprayer booms can be fitted with various spray lines. In turn, the spray lines can be fitted with single nozzles or multi nozzles, depend- ing on the predominant conditions of use. Fig.
Page 119 Construction and function of the sprayer boom Spray line Super-S sprayer boom with single nozzles or multi-nozzles 6-6-6-6-6 11,5 12,5 13,5 11,0 3-5-5-4-5-5-3 12,0 13,0 14,0 12,0 7-6-6-6-7 12,0 13,0 14,0 12,0 6-8-8-8-6 12,5 13,5 14,5 13,0 5-6-5-4-5-6-5 13,0 14,0 15,0 14,0 8-8-8-8-8...
Page 120 Construction and function of the sprayer boom Spray line Super-L sprayer boom with single nozzles or multi-nozzles [kg] 8-9-8-9-8 13.5 14.5 15.5 19,0 6-6-7-4-7-6-6 10.5 15.5 17.0 18.0 19,0 6-4-5-4-4-4-5-4-6 16.0 21.5 23.0 24.5 20,0 3-3-4-5-4-4-4-5-4-3-3 22.0 27.5 28.5 30.0 20,0 9-10-10-10-9 10.0...
Page 121: Single Nozzles
Construction and function of the sprayer boom 6.9.2 Single nozzles Fig. 104/... (1) Nozzle body with bayonet connection (standard). (2) Diaphragm. If the pressure in the spray line falls below approx. 0.5 bar, the spring ele- ment (3) presses the diaphragm onto the diaphragm seat (4) in the nozzle body.
Page 122 Construction and function of the sprayer boom (1) Nozzle carrier. (2) Triple nozzle head. (3) Diaphragm. If the pressure in the nozzle line falls below approx. 0.5 bar, the spring element (4) presses the diaphragm onto the diaphragm seat (5) in the three-way nozzle carrier.
Page 123: Electric Boundary Nozzles (Optional)
Construction and function of the sprayer boom 6.9.4 Electric boundary nozzles (optional) Using boundary nozzle switching, the last nozzle can be switched off from the tractor and a boundary nozzle can be electrically switched on 25 cm further out (right at the edge of the field). Fig.
Page 124: Line Filter For Spray Lines (Optional)
Construction and function of the sprayer boom 6.10 Line filter for spray lines (optional) Line filters (Fig. 110/1) are • fitted in the spray lines in each part width section. • an additional measure to avoid contamina- tion of the spraying nozzles. Overview of the filter inserts •...
Page 125: Special Optional Equipment For Liquid Fertiliser
Construction and function of the sprayer boom 6.12 Special optional equipment for liquid fertiliser There are currently two main types of liquid fertiliser available: • Ammonium nitrate / urea solution (AUS) with 28 kg N per 100 kg AUS. • An NP solution 10-34-0 with 10 kg N and 34 kg P per 100 kg NP solution.
Page 126: Hole Nozzles / Fd Nozzles (Optional)
Construction and function of the sprayer boom 6.12.2 7 hole nozzles / FD nozzles (optional) The same conditions apply for using 7 hole noz- zles / FD nozzles as for the three-ray nozzles. In contrast to the three-ray nozzle, in the case of the 7 hole nozzle / FD nozzles, the outlets are not oriented downwards, but instead point to the side.
Page 127: Drag Hose Equipment For Super-S Boom (Optional)
Construction and function of the sprayer boom Drag hose equipment for Super-S boom (optional) 6.12.3 Drag hose unit with dosing discs (no. 4916-39) for late top dressing with liquid fertiliser Fig. 113 Fig. 113 (1) Numbered, separate drag hose part width sections with 25 cm nozzle distance and hose distance.
Page 128: Drag Hose Equipment For Super-L Boom (Optional)
Construction and function of the sprayer boom Drag hose equipment for Super-L boom (optional) 6.12.4 • with dosing discs for late top dressing with liquid fertiliser Fig. 114/... (1) Drag hoses at 25 cm intervals, after fitting the 2nd spray line. (2) Bayonet connection with dosing discs.
Page 129: Foam Marker (Optional)
Construction and function of the sprayer boom 6.13 Foam marker (optional) The foam marker (Fig. 118/1 and Fig. 118/3), which can be retrofitted at any point, makes it possible to drive the next bout precisely when spraying fields without marked-out tramlines. Marking involves the use of foam bubbles.
Page 130 Construction and function of the sprayer boom Operating device For implements without control terminal: Fig. 121/... (1) Left-hand foam marker on (2) Right-hand foam marker on (3) Foam marker off (4) Connection to the compressor (5) Connection to the tractor power supply Fig.
Page 131: Pressure Circulating System (Dus) (Optional)
Construction and function of the sprayer boom 6.14 Pressure circulating system (DUS) (optional) • For normal spraying operation, the pressure circulating system should usually be switched on. • When using drag hoses, the pressure circulating system should usually be switched off. The pressure circulating system •...
Page 132 Construction and function of the sprayer boom Overview – pressure circulating system (DUS) Fig. 124 (1) Pressure circulating system (DUS) (2) DUS switch tap (3) DUS pressure limiting valve (4) DUS return valve UX Super BAG0054.10 11.16...
Page 133: Lift Module
Construction and function of the sprayer boom 6.15 Lift module (optional) The lift module allows the sprayer boom to be raised by an additional 70 cm to a nozzle height of 3.20 m. Fig. 125 The lift module is actuated using the tractor control unit yellow. DANGER Risk of accidents and danger of damaging the machine.
Page 134: Commissioning
Commissioning Commissioning This section contains information • on commissioning your machine. • on checking if it is possible to connect the machine to your trac- tor. • Before operating the machine for the first time the operator must have read and understood the operating manual. •...
Page 135: Checking The Suitability Of The Tractor
Commissioning Checking the suitability of the tractor WARNING Risk of breaking during operation, insufficient stability and in- sufficient tractor steering and braking power from improper use of the tractor. • Check the suitability of your tractor, before connecting the ma- chine to the tractor.
Page 136 Commissioning 7.1.1.1 Data required for the calculation Fig. 126 [kg] Tractor empty weight See tractor operating manual or vehicle [kg] Front axle load of the empty tractor documentation [kg] Rear axle load of the empty tractor [kg] Front weight (if available) See front weight in technical data, or weigh [kg] Maximum drawbar load...
Page 137 Commissioning 7.1.1.2 Calculation of the required minimum ballasting at the front G of the tractor for V min assurance of the steering capability • − • • • Enter the numeric value for the calculated minimum ballast G V min required on the front side of the tractor, in the table (Section 7.1.1.7).
Page 138 Commissioning 7.1.1.7 Table Actual value according to Permissible value Double the permis- calculation according to tractor sible load capacity operating manual (two tyres) Minimum ballast front / rear ≤ Total weight ≤ ≤ Front axle load ≤ ≤ Rear axle load •...
Page 139: Requirements For Tractor Operation With Attached Machines
Commissioning 7.1.2 Requirements for tractor operation with attached machines WARNING Risk of breakage during operation of components through unap- proved combinations of connecting equipment. • Ensure: ο that the connection fitting on the tractor possesses a per- missible drawbar load sufficient for the actual drawbar load. ο...
Page 140: Machines Without Their Own Brake System
Commissioning The actual D value of a combination to be coupled is calculated as follows: T x C = g x T + C Fig. 128 Permissible total weight of your tractor in [t] (see tractor operat- ing manual or registration papers) Axle load of the machine loaded with the permitted mass (pay- load) in [t], without drawbar load Acceleration due to gravity (9.81 m/s²)
Page 141: Adjusting The Length Of The Pto Shaft To The Tractor
Commissioning Adjusting the length of the PTO shaft to the tractor WARNING Danger from • damaged and/or destroyed, flying parts for the operator / third party if the PTO shaft is compressed or pulls apart while the machine coupled to the tractor is being raised/lowered, because the length of the PTO shaft has not been adjusted properly.
Page 142 Commissioning WARNING Risk of crushing from unintentional: • rolling of the tractor and the connected machine. • lowering of the raised machine. Secure the tractor and machine from unintentionally starting or rolling and secure the raised machine against unintentional lowering before entering the danger zone between the tractor and raised machine in order to adjust the PTO shaft.
Page 143: Securing Tractor / Machine Against Accidental Starting And Rolling
Commissioning Securing tractor / machine against accidental starting and rolling WARNING Risk of crushing, shearing, cutting, being caught and/or drawn in, or impact when making interventions in the machine, through • unintentional falling of the unsecured machine raised using the tractor's three-point linkage. •...
Page 144: Fitting Wheels
Commissioning Fitting wheels If the machine is fitted with inflatable spare tyres, running wheels must be fitted before putting into operation. WARNING • Only one permitted set of tyres may be used, as specified in the technical data (see page 55). •...
Page 145 Commissioning Only with Profi folding: The hydraulic block is located at the front right on the implement be- hind the cover plate. • Be sure to match the hydraulic systems of the tractor and the implement. • The implement hydraulic system is adjusted using the system setting screw on the hydraulic block of the implement.
Page 146 Commissioning (1) Open-Center hydraulic system with con- stant flow pump (gear pump) or setting pump. → Put the system setting screw in position A. Setting pump: Set the maximum required oil quantity on the tractor control unit. If the oil quantity is insufficient, correct functioning of the implement cannot be ensured.
Page 147: Autotrail Position Encoder
Commissioning AutoTrail position encoder If using AutoTrail, a holder for the position en- coder (Fig. 131/1) must be fitted to the tractor. The holder must be made according to the actual circumstances of the tractor with the sleeve with locking screw (Fig. 131/2) and metal plate (Fig. 131/3) provided.
Page 148: Track Setting Of The Adjustable Axle (Workshop Task)
Commissioning Track setting of the adjustable axle (workshop task) Adjust the track width of the implement so that the wheels of the sprayer run in the middle of the tractor's wheel tracks. The track width (with 100 mm offset) is variably adjustable from 1,500 mm to 2,250 mm.
Page 149: Coupling And Uncoupling The Machine
Coupling and uncoupling the machine Coupling and uncoupling the machine When coupling and decoupling the machine, comply with the section "Safety information for the user", page 29. WARNING Risk of crushing from unintentional starting and rolling of the tractor and machine when coupling or uncoupling the machine. When coupling or decoupling the machine, secure the tractor and machine against unintentional start-up and rolling before entering the danger area between the tractor and machine;...
Page 150 Coupling and uncoupling the machine WARNING Risk of crushing, being caught or pulled in, or impact when the machine is unexpectedly released from the tractor. • Use the intended equipment to connect the tractor and the ma- chine in the proper way. •...
Page 151: Uncoupling The Machine
Coupling and uncoupling the machine Uncoupling the machine WARNING Risk of crushing, cutting, being caught or drawn in, or impact through inadequate stability and tipping over of the uncoupled machine. Park the empty machine on a horizontal space with a hard surface. When uncoupling the machine, there must always be enough space in front of the machine so that you can align the tractor with the ma- chine if necessary.
Page 152: Manoeuvring The Uncoupled Machine
Coupling and uncoupling the machine 8.2.1 Manoeuvring the uncoupled machine DANGER You must be particularly careful when shunting the machine with the service brake system released, since only the manoeuvring vehicle is now braking the trailed sprayer. The machine must be connected to the manoeuvring vehicle before you actuate the release valve on the trailer brake valve.
Page 153: Transportation
Transportation Transportation • During transportation, follow the instructions given in the section "Safety instructions for the operator", page 31. • Before moving off, check: ο that the supply lines are connected correctly. ο the lighting system for damage, proper operation and cleanliness, ο...
Page 154 Transportation WARNING Risk of falling when riding on the machine, contrary to instruc- tions. It is forbidden to ride on the machine and/or climb the machine while it is running. Instruct people to leave the loading site before approaching the ma- chine.
Page 155: Using The Machine
Using the machine Using the machine When using the machine, observe the information in the following sections: • "Warning symbols and other labels on the machine" starting on page 18 and • "Safety information for the user", starting on page 29 ff. Observing this information is important for your safety.
Page 156 Using the machine WARNING Risk of being caught and drawn in and danger from foreign ob- jects being caught and thrown out in the danger area of the driv- en PTO shaft. • Whenever the machine is used, first check to ensure that the safety devices and guards of the PTO shaft are fully intact and functional.
Page 157: Preparing For Spraying Operation
Using the machine WARNING Risk to health from accidental contact with crop protection agents or spray liquid. • Put on protective gloves before ο using crop protection agent, ο carrying out work on a contaminated field sprayer or ο cleaning the field sprayer. •...
Page 158: Preparing The Spray Liquid
Using the machine 10.2 Preparing the spray liquid WARNING Risk of accidental contact with crop protection agent and / or spray liquid. • Always introduce the crop protection agent into the spray liquid tank using the induction bowl. • Swivel the induction bowl into the filling position before pouring in the crop protection agent.
Page 159 Using the machine WARNING Danger for people and animals from accidental contact with the spray liquid while filling the spray liquid tank! • Wear personal protective equipment when handling crop protec- tion agents or dumping spray liquids from the spray liquid tank. The type of personal protective equipment required is described in the manufacturer's instructions, the product information, the directions for use, the safety data sheet or the user manual for...
Page 160 Using the machine • As it is difficult to dispose of residues in an environmentally- friendly manner, carefully calculate the required filling quantity or refill quantity to avoid leaving any residue at the end of the spraying operation. ο To calculate the required refill quantity for final filling of the spray liquid tank, use the "Filling table for remaining spray area".
Page 161 Using the machine • With the agitator running, feed the water-soluble plastic film bag directly into the spray liquid tank. • Before spraying, fully dissolve the urea by circulating the liquid. When dissolving large quantities of urea, the temperature of the spray liquid falls more sharply;...
Page 162: Calculating The Filling And Refill Quantity
Using the machine 10.2.1 Calculating the filling and refill quantity To calculate the required refill quantity for the final filling of the spray liquid tank, use the "Filling table for remaining spray area", page 118. Example 1: The following are given factors: Tank nominal volume 1000 l Residue in the tank...
Page 163: Filling Table For Remaining Spray Area
Using the machine Formula and answer to Question 2: Quantity of liquid available [l] – residue [l] Area to be treated [ha] Water consumption [l/ha] 1000 [l] (tank nominal volume) – 20 [l] (residue) 1.96 [ha] 500 [l/ha] water consumption 10.2.2 Filling table for remaining spray area To calculate the required refill quantity for the final filling of the spray...
Page 164: Fill The Spray Liquid Tank Via The Suction Port And Blend In The Agent At The Same Time
Using the machine 10.2.3 Fill the spray liquid tank via the suction port and blend in the agent at the same time Preferably perform the filling from a suitable container and not from an open water access point. WARNING Damage to the suction valve chest caused by pressure filling via the suction connection! The suction connection is not suitable for pressure filling.
Page 165 Using the machine Blending in the agent: (Blending in the agent via ECO-Fill, see page 167.) 8. Open the induction bowl lid. 9. Close switch tap 10. Move the pressure gauge switch tap position Open switch tap 12. Move switch tap to position 13.
Page 166 Using the machine Rinse the canister: 15. Wash the canister or other containers using the canister flushing. 16. Move switch tap to position 17. Press the canister down for at least 30 secs. → The canister is rinsed with water. 18.
Page 167: Adding The Agent Using Eco-Fill
Using the machine 10.2.4 Adding the agent using ECO-Fill 1. Activate the pump. 2. Couple the ECO-Fill container with ECO-Fill connection. 3. Move the pressure gauge switch tap position 4. Move switch tap to open. 5. Move switch tap to position 6.
Page 168: Filling The Spray Liquid Tank Via The Filling Connection And Blending In The Agent
Using the machine 10.2.5 Filling the spray liquid tank via the filling connection and blending in the agent (option) 1. Connect the pressure line to the filling con- nection on the control terminal. 2. Move switch tap to position 3. Start blending in the agent once 20% of the tank filling level has been reached.
Page 169 Using the machine Rinse the canister: 12. Wash the canister or other containers using the canister flushing equipment. Move switch tap to position 13. Press the canister down for at least 30 secs. → The canister is washed with spray liquid. To flush a number of canisters, flush them with spray liquid immediately after they are emptied.
Page 170 Using the machine In order to avoid overfilling, move switch tap to position when reach- ing 80% of the filling level at the latest. → This allows you to clean the can- ister with no hurry. Complete filling the spray liquid tank: 24.
Page 171: Spraying Operation
Using the machine 10.3 Spraying operation Pay attention to the separate operating manual for the control termi- nal. Special instructions for spraying operations • Test the field sprayer by carrying out a calibration: ο before the start of the season ο...
Page 172 Using the machine • Refrain from use if the average wind speed tops 5 m/s (leaves and thin twigs move). • To avoid overdosing, switch the sprayer boom on and off only while travelling. • Avoid overdosing through overlapping, caused by imprecise bout tracking from one spray path to the next and/or when cornering on the headlands with the sprayer boom switched on! •...
Page 173: Applying The Spray Liquid
Using the machine • The pump delivery capacity is dependent on the pump drive speed. Select a pump speed (between 400 and 550 rpm.) that always allows for an adequate flow rate to the sprayer boom and the agitator. When selecting, always take into account that more spray liquid needs to be conveyed at higher operational speeds and higher spray rates.
Page 174 Using the machine Example: Required spray rate: 200 l/ha Intended operational speed: 8 km/h Nozzle type: LU/XR Nozzle size: '05' Permissible pressure range for the in- min. pressure 1 bar stalled spraying nozzles: max. pressure 5 bar Target spray pressure: 3.7 bar Permissible spray pressure: 3.7 bar ±...
Page 175: Drift Reduction Measures
Using the machine Driving to the field with the agitator switched on 1. Switch off the control terminal. 2. Switch off the pump drive. 3. Set the desired agitating intensity. 10.3.2 Drift reduction measures • Reschedule treatment for the early morning or the evening hours (there is generally less wind).
Page 176: Residues
Using the machine 10.4 Residues There are three types of residue: • excessive residue remaining in the spray liquid tank when the spraying operation is finished → This excessive residue is discharged diluted or pumped-out and disposed of. • the technical residue that remains in the spray liquid tank, the suction chest and the spray line when the spray pressure drops off by 25% The suction chest is composed of the suction filter, pump and...
Page 177: Diluting The Excess Residue In The Spray Liquid Tank And Spraying Out The Diluted Residue Remaining At The End Of Spraying Operations
Using the machine 10.4.1 Diluting the excess residue in the spray liquid tank and spraying out the di- luted residue remaining at the end of spraying operations For machines with comfort equipment, See operating manual for software ISOBUS. 1. Switch the sprayer off on the on-board computer.
Page 178: Emptying The Spray Liquid Tank Using The Pump
Using the machine 10.4.2 Emptying the spray liquid tank using the pump 1. Connect a suitable drainage hose to the drainage connection on the machine side using a 2 inch Cam Lock Coupling. 2. Move the pressure gauge switch tap position 3.
Page 179: Cleaning The Field Sprayer
Using the machine 10.5 Cleaning the field sprayer • Keep the exposure time as short as possible, for example by daily cleaning of the utensils after the spraying operation is com- pleted. Do not leave the spray liquid in the spray liquid tank for an excessively long period, e.g.
Page 180: Cleaning The Sprayer With The Tank Empty
Using the machine 10.5.1 Cleaning the sprayer with the tank empty • Clean the spray liquid tank on a daily basis! • The flushing water tank must be filled completely. • The cleaning process should be carried out in a threefold reduc- tion procedure.
Page 181: Draining The Final Residues
Using the machine Repeat the procedure three times. Third run: • Flushing the DUS and agitator is not neces- sary on the third run. • Use the rest of the flushing water supply for the internal cleaning. 13. Drain the final residue, see page 181. 14.
Page 182: Cleaning The Suction Filter When Tank Is Empty
Using the machine 10.5.3 Cleaning the suction filter when tank is empty Clean the suction filter (Fig. 147) on a daily basis after cleaning the field sprayer. 1. Unscrew the cover of the suction filter (Fig. 147/2). 2. Remove the cover with suction filter (Fig. 147/3) and clean with water.
Page 183: Cleaning The Pressure Filter When The Tank Is Empty
Using the machine 10.5.5 Cleaning the pressure filter when the tank is empty 1. Undo the sleeve nuts. 2. Remove the pressure filter (Fig. 149/1) and clean with water. 3. Refill the pressure filter. 4. Check the screw connection for leaks. Fig.
Page 184: Exterior Cleaning
Using the machine 10.5.7 Exterior cleaning 1. Move suction chest lever to position 2. Move the pressure gauge switch tap position 3. In case no internal cleaning has been pre- viously done: for 30 seconds until Open the switch tap flushing water runs out of the nozzles.
Page 185: Cleaning The Sprayer With A Full Tank (Work Interruption)
Using the machine 10.5.9 Cleaning the sprayer with a full tank (work interruption) If spraying operations must be interrupted because of bad weather, by all means clean the suction chest (suction filter, pumps, pressure controller) and the spray line. 1. Interrupt pump operation. H, I 2.
Page 186: Faults
Faults Faults WARNING Risk of crushing, shearing, cutting, being caught and/or drawn in, or impact through • unintentional falling of the machine raised using the trac- tor's three-point linkage. • unintentional falling of raised, unsecured machine parts. • unintentional start-up and rolling of the tractor-machine combination.
Page 187: Cleaning, Maintenance And Repair
Cleaning, maintenance and repair Cleaning, maintenance and repair WARNING Risk of crushing, shearing, cutting, being caught and/or drawn in, or impact through • unintentional falling of the machine raised using the trac- tor's three-point linkage. • unintentional falling of raised, unsecured machine parts. •...
Page 188 Regular and proper maintenance is a requirement of our warranty conditions. • Use only genuine AMAZONE spare parts (see "Spare and wear parts and aids" section, page 17). • Use only genuine AMAZONE replacement hoses, and hose clamps made of V2A for assembly.
Page 189: Cleaning
Cleaning, maintenance and repair 12.1 Cleaning • Monitor brake, air and hydraulic hose lines particularly carefully • Never treat brake, air or hydraulic hose lines with benzin, ben- zene, petroleum or mineral oils. • Lubricate the trailed sprayer after cleaning, particularly after cleaning with a pressure washer / steam jet, or fat-soluble medi- ums.
Page 190: Winter Storage And Long Periods Out Of Operation
Cleaning, maintenance and repair 12.2 Winter storage and long periods out of operation 1. Thoroughly clean the machine prior to overwinter breaks. ο Cleaning the sprayer with the tank empty, see Page 180. ο Draining the final residual amount. 2. Drive the spray pump at low speed and allow the "air to be pumped"...
Page 191 Cleaning, maintenance and repair 16. Super-S boom: drain the pressure sensor (Fig. 152/1) by removing the hose from the pressure sensor. Fig. 152 17. Super-L boom: drain the pressure sensor of the boom fitting with the boom lowered by removing the hose from the pressure sensor.
Page 192 Cleaning, maintenance and repair Before starting up again: • Install all of the dismantled parts. • Close the suction port drainage tap. • At temperatures below freezing, hand crank the piston diaphragm pumps before starting to prevent residual ice from damaging the piston and piston diaphragm.
Page 193: Lubrication Specifications
Cleaning, maintenance and repair 12.3 Lubrication specifications Lubricate all grease nipples (keep gaskets clean). Lubricate / grease the machine at the specified intervals. Lubrication points on the machine are indicated with the foil (Fig. 155). Carefully clean the lubrication points and grease gun before lubrication so that no dirt is pressed into the bearings.
Page 194: Lubrication Point Overview
Cleaning, maintenance and repair 12.3.1 Lubrication point overview Lubrication point Interval Number Type of lubrication of lubri- cation points Fig. 156 1 Hydraulic cylinder for stand Grease nipple 2 Drawbar bearing Grease nipple 3 Parking brake Grease the cables and guide rollers.
Page 195 Cleaning, maintenance and repair Fig. 156 Fig. 157 Fig. 158 Fig. 159 Fig. 161 Fig. 160 • For winter operation, grease the protective tubes to prevent them from freezing. • Also observe the installation and service instructions from the PTO shaft manufacturer, which are fastened to the PTO shaft. Steering cylinder heads on steering axles In addition to the lubrication work, you must also make sure that the steering cylinder and the supply line are always bled.
Page 196 Cleaning, maintenance and repair ECO-Master automatic linkage adjuster Each time the brake linings are replaced: 1. Remove the rubber stopper cap. 2. Apply grease (80 g) until sufficient clean grease escapes at the adjusting screw. 3. Slacken the adjusting screw by approximately one turn with a ring spanner.
Page 197: Maintenance Schedule - Overview
Cleaning, maintenance and repair 12.4 Maintenance schedule – overview • Carry out maintenance work when the first interval is reached. • The times, continuous services or maintenance intervals of any third party documentation shall have priority. After the first working run Specialist workshop Maintenance work Component...
Page 198 Cleaning, maintenance and repair Every three months / 200 operating hours Specialist workshop Maintenance work Component page • Dual-circuit service brake Check for leak tightness system • Check pressure in the air reservoir • Check brake cylinder pressure • Visual inspection of brake cylinder •...
Page 199: Drawbars
Cleaning, maintenance and repair As necessary Specialist workshop Maintenance work Component page Super-S boom • Correct the settings Super-L boom • Electric lighting Replace defective bulbs • Cleaning solenoid valves • Hydraulic throttle valve Adjust the actuation speed • Drawbar Replace worn parts •...
Page 200: Axle And Brake
Cleaning, maintenance and repair 12.6 Axle and brake For optimum brake performance with a minimum of wear, we recom- mend that the brakes on the tractor are balanced with those on the trailed sprayer. After the service braking system has been run in for a suitable period, arrange for the brakes to be balanced by a specialist workshop.
Page 201 Cleaning, maintenance and repair Checking the brake drum for dirt 1. Unscrew the two cover plates (Fig. 162/1) on the inside of the brake drum. 2. Remove any dirt and plant debris which may have entered the drum. 3. Refit the cover plates. CAUTION Dirt entering the drums may be deposited on the brake pads (Fig.
Page 202 Cleaning, maintenance and repair Brake pad check Open the inspection hole (Fig. 165/1) by pulling out the rubber stopper (if present). At a residual thickness for riveted pads 5 mm (N 2504) 3 mm for adhesive pads 2 mm the brake pad must be replaced. Reinsert the rubber tab.
Page 203 Cleaning, maintenance and repair Checking the function of the automatic linkage adjuster 1. Remove the rubber stopper cap. 2. Slacken the adjusting screw (arrow) with a ring spanner approx. ¾ of a turn anti- clockwise. There must be a free travel of at least 50 mm for a lever length of 150 mm.
Page 204 Cleaning, maintenance and repair Inspection instructions for the dual circuit service brake system Leak tightness check 1. Check all connections, pipe lines, hose lines and screw connec- tions for leak tightness. 2. Remedy leakages. 3. Repair any areas of chafing on pipes and hoses. 4.
Page 205: Automatic Load-Dependent Brake Force Regulator (Alb)
Cleaning, maintenance and repair 12.6.1 Automatic load-dependent brake force regulator (ALB) Check the brake pressure: connect a pressure gauge to the test connection on the brake cylinder. if the brake pressure deviates from the required values, set the brake pressure on the ALB via the eye bolts.
Page 206: Tyres / Wheels
Cleaning, maintenance and repair 12.8 Tyres / wheels • Required tightening torque for wheel nuts or bolts: 510 Nm To assemble the wheels, use: (1) conical rings in front of the wheel nuts. (2) only rims with a fitting countersink for the conical ring. •...
Page 207: Fitting Tyres
Cleaning, maintenance and repair • Check tyre pressures regularly when the tyres are cold, i.e. be- fore starting a run (see page 55). • The difference in pressure between the tyres on one axle must be no greater than 0.1 bar. •...
Page 208: Hydraulic System
Cleaning, maintenance and repair 12.11 Hydraulic system WARNING Risk of infection through the high pressure hydraulic fluid of the hydraulic system entering the body. • Only a specialist workshop may carry out work on the hydraulic system. • Depressurise the hydraulic system before carrying out work on the hydraulic system.
Page 209: 12.11.1 Labelling Hydraulic Hose Lines
Cleaning, maintenance and repair 12.11.1 Labelling hydraulic hose lines Valve chest identification provides the follow- ing information: Fig. 172/... (1) Manufacturer's marking on the hydraulic hose line (A1HF) (2) Date of manufacture of the hydraulic hose lines (02 04 = February 2004) (3) Maximum approved operating pressure (210 BAR).
Page 210: 12.11.4 Installation And Removal Of Hydraulic Hose Lines
12.11.4 Installation and removal of hydraulic hose lines • only genuine AMAZONE replacement hoses. These hoses stand up to chemical, mechanical and thermal loads. • hose clips made from V2A for fitting hoses, as a rule.
Page 211: Fluid Filter
Cleaning, maintenance and repair 12.11.5 Fluid filter • Oil filter for Profi-folding • Oil filter for hydraulic pump drive Hydraulic fluid filter (Fig. 173/1) with contamina- tion indicator (Fig. 173/2). • Green Filter fully functional • Red Replace filter To remove the filter, twist off the filter cover and remove the filter.
Page 212: 12.11.7 Clean / Exchange The Filter In The Hydraulic Plug
Cleaning, maintenance and repair 12.11.7 Clean / exchange the filter in the hydraulic plug Not with Profi-folding. The hydraulic plugs are equipped with a filter (Fig. 172/1) that may block and then have to be cleaned / exchanged. This is the case when the hydraulic functions run slower.
Page 213: 12.11.9 Adjusting The Hydraulic Throttle Valve
Cleaning, maintenance and repair 12.11.9 Adjusting the hydraulic throttle valve The operating speeds for the individual hydraulic functions are set at the factory from the valve block using the respective hy- draulic throttle valves (fold/unfold sprayer boom, lock/unlock the swing compensation, etc.). However, depending on the type of tractor, it may be necessary to correct these speed settings.
Page 214 Cleaning, maintenance and repair Profi-folding I Fig. 178/... (1) Throttle - fold in the right-hand boom. (2) Throttle - fold out the right-hand boom. (3) Throttle - lock the swing compensation. (4) Throttle transport safety catch. (5) Hydraulic joints – tilt adjustment (the throt- tles are located on the hydraulic cylinder for tilt adjustment).
Page 215: Adjustments On The Folded-Out Sprayer Boom
Cleaning, maintenance and repair 12.12 Adjustments on the folded-out sprayer boom Alignment parallel to the ground With the sprayer boom folded out and correctly set, all the spraying nozzles must be of the same parallel distance to the ground. If this is not the case, with the swing compensa- tion unlocked align the folded-out sprayer boom by means of counterweights (Fig.
Page 216: Pump
Cleaning, maintenance and repair 12.13 Pump 12.13.1 Check the oil level • Only use 20W30 branded oil or 15W40 multi purpose oil. • Ensure the correct oil level. Dam- age may be caused both by the oil level being too low or too high. •...
Page 217: 12.13.4 Belt-Driven Pump
Cleaning, maintenance and repair 12.13.4 Belt-driven pump Checking/adjusting the belt tension Test force Fe= 75 N For a pump drive speed of 540 rpm: → maximum permissible deflection 14 mm For a pump drive speed of 1,000 rpm: → maximum permissible deflection 16 mm If the maximum deflection is exceeded, increase the belt tension by extending the wheelbase via the slotted holes.
Page 218: 12.13.5 Checking And Replacing The Suction And Pressure-Side Valves
Cleaning, maintenance and repair 12.13.5 Checking and replacing the suction and pressure-side valves • Pay attention to the respective installation positions of the valves on the suction and pressure sides before removing the valve groups (Fig. 184/5). • When reassembling, ensure that the valve guide (Fig. 184/9) is not damaged.
Page 219: 12.13.6 Checking And Replacing The Piston Diaphragm
Cleaning, maintenance and repair 12.13.6 Checking and replacing the piston diaphragm • At least once a year, check that the piston diaphragm (Fig. 185/8) is in perfect condition by removing it. • Pay attention to the respective installation positions of the valves on the suction and pressure sides before removing the valve groups (Fig.
Page 220: Calibrate The Flow Meter
Cleaning, maintenance and repair Replacing the piston diaphragm • Ensure the correct position for the recesses and/or holes on the hydraulic cylinders. • Secure the piston diaphragm (Fig. 185/8) with a washer disc and a screw (Fig. 185/11) on the piston (Fig. 185/9), so that the rim shows on the cylinder head side (Fig.
Page 221: Field Sprayer Calibration
Cleaning, maintenance and repair 12.15 Field sprayer calibration Test the field sprayer by carrying out calibration • before the start of the season. • each time a nozzle is changed. • to check the setting information in the spray tables. •...
Page 222 Cleaning, maintenance and repair Example: Nozzle size '06' Intended operational speed 7 km/h Nozzle output on the left boom: 0.85 l/30s Nozzle output in the centre 0.84 l/30s Nozzle output on the right boom: 0.86 l/30s 0.85 l/30s → 1.7 l/min Calculated average value: 1.
Page 223: Nozzles
Cleaning, maintenance and repair 12.16 Nozzles From time to time, check the seating of the slider (Fig. 186/7). • To do this, insert the slider into the nozzle body (Fig. 186/2) as far as possible using moderate thumb pressure. Do not insert the slider up to the stop when in a new condition under any circumstances.
Page 224: Line Filter
Cleaning, maintenance and repair 12.17 Line filter • Clean the line filters (Fig. 187/1) 3 - 4 months depending on op- erating conditions). • Change damaged filter inserts. Fig. 187 UX Super BAG0054.10 11.16...
Page 225: Instructions On Testing The Field Sprayer
Cleaning, maintenance and repair 12.18 Instructions on testing the field sprayer • Only authorised centres are permitted to carry out spray tests. • According to law, a spray test must be carried out: ο 6 months after commissioning (if not performed at time of purchase) at the latest, then ο...
Page 226: Electric Lighting System
Cleaning, maintenance and repair Pump test - testing pump performance (delivery capacity, pressure) 1. Undo the sleeve nut (Fig. 189/1). 2. Attach the hose connection. 3. Tighten the sleeve nut. Fig. 189 Flow meter test 1. Remove all spray lines from the part width section valves (Fig.
Page 227: Screw Tightening Torques
Cleaning, maintenance and repair 12.20 Screw tightening torques 10.9 12.9 M 8x1 M 10 16 (17) M 10x1 M 12 18 (19) M 12x1,5 M 14 M 14x1,5 M 16 M 16x1,5 M 18 M 18x1,5 M 20 M 20x1,5 M 22 M 22x1,5 1050...
Page 228: Disposing Of The Field Sprayer
Cleaning, maintenance and repair 12.21 Disposing of the field sprayer Carefully clean the whole field sprayer (inside and out) before dispos- ing of the field sprayer. The following components are eligible for energy recovery*: spray liquid tank, induction bowl, flushing water tank, fresh water tank, hos- es and plastic fittings.
Page 229: Spray Table
Spray table Spray table 13.1 Spray tables for flat-fan, anti-drift, injector and airmix nozzles, spraying height 50 cm • The spray rates [l/ha] listed in the spray tables are only valid for water. To convert the spray rates given into AUS, multiply these by 0.88 and, for NP solutions, by 0.85.
Page 230 Spray table Selecting the nozzle type Fig. 191 Example: Required spray rate: 200 l/ha Intended operational speed: 8 km/h Required atomisation characteristic for coarse-dropped (fine drift- the crop protection measure: ing) Required nozzle type: Required nozzle size: Required spray pressure: ? bar Required individual nozzle output for calibrating the field sprayer:...
Page 231 Spray table Determining the nozzle type, nozzle size, spray pressure and individual nozzle output 1. Determine the working point for the required spray rate (200 l/ha) and the intended operational speed (8 km/h). 2. At the working point, trace a line down the table. Depending on the position of the working point, this line will run through the cells for various nozzle types.
Page 232 Spray table Fig. 192 UX Super BAG0054.10 11.16...
Page 233: Spraying Nozzles For Liquid Manure
3- jet agrotop 7- hole TeeJet Lechler Drag hose AMAZONE 13.2.1 Spray table for three-ray nozzle, spraying height 120 cm AMAZONE - spray table for three-ray nozzles (yellow) Pres- Nozzle output AUS spray rate (l/ha) sure / km/h Water (bar) (l/min) 0.36...
Page 234 Spray table AMAZONE - spray table for three-ray nozzles (blue) Pres- Nozzle output AUS spray rate (l/ha) sure / km/h Water (bar) (l/min) 0.86 0.76 0.94 0.83 1.05 0.93 1.11 0.98 1.15 1.01 1.20 1.06 1.26 1.12 1.32 1.17 1.36 1.20...
Page 235: Spray Table For 7-Hole Nozzles
Spray table 13.2.2 Spray table for 7-hole nozzles AMAZONE spray table for 7-hole nozzle SJ7-02VP (yellow) Pressu- Nozzle output AUS spray rate (l/ha) / km/h per nozzle Water (bar) (l/min) 0.55 0.49 0.64 0.57 0.72 0.64 0.80 0.71 0.85 0.75 0.93...
Page 236: Spray Table For Fd Nozzles
Spray table AMAZONE spray table for 7-hole nozzle SJ7-06VP (grey) Pressu- Nozzle output AUS spray rate (l/ha) / km/h per nozzle Water (bar) (l/min) 1.77 1.57 2.01 1.78 2.19 1.94 2.35 2.08 2.61 2.31 AMAZONE spray table for 7-hole nozzle SJ7-08VP (white)
Page 237 Spray table AMAZONE spray table for FD-06 nozzle Pressu- Nozzle output AUS spray rate (l/ha) / km/h per nozzle Water (bar) (l/min) 1.70 1.49 1.96 1.72 2.19 1.93 2.40 2.11 2.77 2.44 AMAZONE spray table for FD-08 nozzle Pressu- Nozzle output...
Page 238: Spray Table For Drag Hose Unit
0,29 0,26 0,31 0,27 0,32 0,28 0,34 0,30 0,36 0,32 0,39 0,35 AMAZONE Spray table with dosing disc 4916-32, (dia. 0.8 mm) Pres- Nozzle output AUS spray rate (l/ha) sure / km/h per dosing disc Water (bar) (l/min) 0,31 0,27...
Page 239 Spray table AMAZONE Spray table for dosing disc 4916-39, (dia. 1.0 mm) (standard) Pres- Nozzle output AUS spray rate (l/ha) sure / km/h per dosing disc Water (bar) (l/min) 0,43 0,38 0,47 0,41 0,53 0,47 0,58 0,51 0,61 0,53 0,64...
Page 240: Conversion Table For Spraying Ammonium Nitrate / Urea Solution (Aus) Liquid Fertiliser
Spray table 13.4 Conversion table for spraying ammonium nitrate / urea solution (AUS) liquid fertiliser UX Super BAG0054.10 11.16...
Page 241 Spray table UX Super BAG0054.10 11.16...
Page 242 H. DREYER GmbH & Co. KG Postfach 51 Tel.: + 49 (0) 5405 501-0 D-49202 Hasbergen-Gaste e-mail: amazone@amazone.de Germany http:// www.amazone.de Plants: D-27794 Hude • D-04249 Leipzig • F-57602 Forbach Branches in England and France Manufacturers of mineral fertiliser spreaders, field sprayers, seed drills, soil cultivation machines...

This manual is also suitable for:

Ux 4200 super Ux 5200 super Ux 6200 super Ux 3200 special Ux 4200 special Ux 5200 special

Amazone UX 3200 Super Operating Manual

1 User Information

2 General Safety Instructions

3 Loading and Unloading

4 Product Description

5 Construction and Function of the Basic Machine

6 Construction and Function of the Sprayer Boom

7 Commissioning

8 Coupling and Uncoupling the Machine

9 Transportation

10 Using the Machine

11 Faults

12 Cleaning, Maintenance and Repair

13 Spray Table

Quick Links

Need help?

Questions and answers

Related Manuals for Amazone UX 3200 Super

Summary of Contents for Amazone UX 3200 Super
