Place these instructions in the vehicle's glove box after installation is complete.
Important:
Please read these instructions carefully prior to installation.
Please refer to your fitting instruction to ensure that the alloy tray is installed correctly.
Check the contents of this kit before commencing fitment and report any discrepancies.

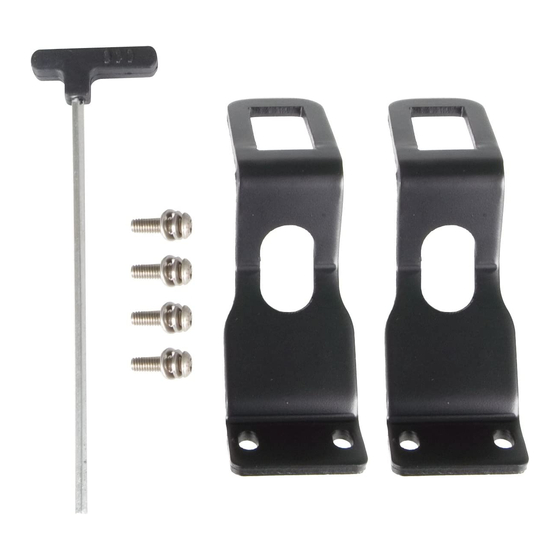

Item
Component Name
1
Combination Bracket
2
M6 x 25mm Hex Screw
3
M6 Spring Washer
4
M6 x OD12.5mm Flat Washer
5
Fitting Instructions
Care Instruction
Clean alloy tray prior to fitting the jack holder and combination
brackets.
Tools Required
Allen Key (provided in kit)
10mm Spanner
NOTE: Shovel Holder and High Lifting Jack Brackets are NOT
included in this RPCB Pioneer Combination Bracket Kit.
43101
Pioneer Jack Holder Bracket available separately.
43103
Pioneer Shovel Holder Bracket available separately.
Rhino-Rack
3 Pike Street, Rydalmere,
NSW 2116, Australia.
(Ph) (02) 9638 4744
(Fax) (02) 9638 4822
These instructions remain the property of Rhinorack Australia Pty Ltd and may not be used or changed for any other purpose than intended.
43104 - Rhino Pioneer Combination Bracket
Qty
2
4
4
4
1
Document No: RS-452
Prepared By: Andy Wana
Authorised By: Chris Murty
Part No.
C839
B067
W004
W003
RS-452
Swing Arm Bracket
To be used at the base plate
end of high lifting jack.
2
3
4
1
Issue No: 06
Issue Date: 06/05/2013
Page 1 of 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rhino-Rack 43104
Summary of Contents for Rhino-Rack 43104
- Page 1 43104 - Rhino Pioneer Combination Bracket Place these instructions in the vehicle’s glove box after installation is complete. Important: Please read these instructions carefully prior to installation. Please refer to your fitting instruction to ensure that the alloy tray is installed correctly.
- Page 2 43104 - Rhino Pioneer Combination Bracket Slide Support Block onto Body Slide the support block onto the shovel holder body until the hole lines up with the hole in the body. Make sure that the wedge shape is engaged as shown.
- Page 3 43104 - Rhino Pioneer Combination Bracket Insert Plate Nuts Plate Nut Insert the plate nuts (supplied in kit RPJHB) into the slot at the front of the alloy tray. Slide the plate nuts to the location where the brackets are to be fitted.
