Important: Please read these instructions carefully prior to installation.
Layout
Internal Dimensions:
43107 Vertical:
366 x 170mm
43108 Horizontal:
480 x 170mm
Recommendations:
Use only non-stretch fastening ropes or straps. Do not overload your Rhino-Rack Alloy Tray and roof bars. Check your
vehicle's roof carrying capacity. Exercise caution when driving off road as vehicle roof height has been increased.
Caution:
The handling characteristics of the vehicle change when you transport a load on the roof. For safety reasons, we
recommend exercising extreme care when transporting large wind-resisting loads; special consideration must be taken
into account when negotiating corners and under braking.
Note for Dealers and Fitters:
It is your responsibility to ensure instructions are given to the end user or client.
Rhino-Rack
3 Pike Street, Rydalmere,
NSW 2116, Australia.
(Ph) (02) 9638 4744
(Fax) (02) 9638 4822
These instructions remain the property of RhinoRack Australia Pty. Ltd. and may not be used or changed for any other purpose than intended.

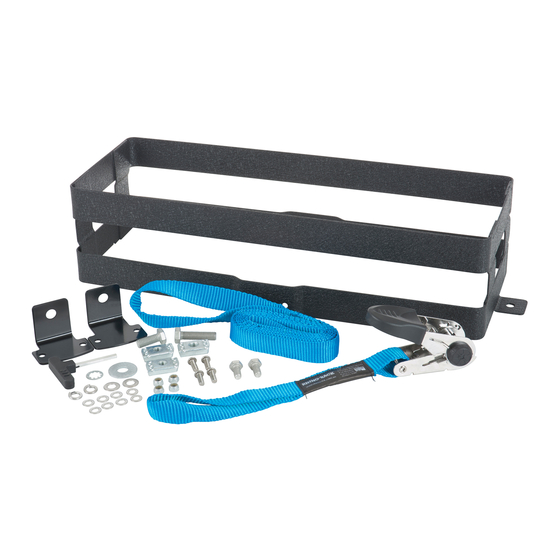

43107 Rhino Jerry Can Holder
43108 Rhino Jerry Can Holder - Horizontal
Check the contents of kit before commencing fitment and report any discrepan cies.
Clean the alloy tray prior to installation.
Place these instructions in the vehicle's glove box after installation is complete.
Important Information
Document No: RR242
Prepared By: Nigel Greig
Authorised By: Chris Murty
CONTROLLED
Issue No: 08
Issue Date: 30/06/2015
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for Rhino-Rack Jerry Can Holder
Summary of Contents for Rhino-Rack Jerry Can Holder
- Page 1 Important Information Recommendations: Use only non-stretch fastening ropes or straps. Do not overload your Rhino-Rack Alloy Tray and roof bars. Check your vehicle’s roof carrying capacity. Exercise caution when driving off road as vehicle roof height has been increased. Caution: The handling characteristics of the vehicle change when you transport a load on the roof.
- Page 2 Rhino Pioneer Alloy Tray Fitment ....Proceed to Step 5. Fit Mount Brackets: Place the jerry can holder up-side down on your work bench. Proceed to fit the left and right mount brackets with the hardware supplied as shown below.
- Page 3 43108 Rhino Jerry Can Holder - Horizontal Fit Hardware to Jerry Can Holder: Fit hardware to the long mount bracket on the jerry can holder as shown, leave the hardware loose at this stage. M10 x 25mm Hex Bolt M10 Shakeproof Washer...
- Page 4 Fit Jerry Can Holder to Plank: Lower the jerry can holder onto the plank where you would like to fit the unit. Place two M8 channel nuts into the slot at the end of the plank and slide the channel nuts under the tabs at each end of the jerry can holder. Fit the hardware to the channel nuts as shown and fasten in position.
- Page 5 Lay the ratchet strap over the middle of the Insert the ratchet strap through the handle of jerry can holder as shown. Wrap the ratchet the jerry can as shown. Wrap the ratchet end of end of the strap under the crossbar and feed...
