(43180B, 43181B, 43182B, 43183B, 43184B, 43185B, 43187B, 43188B, 43189B,43201B, 43227B, 43228B, 43229B,
Place these instructions in the vehicle's glove box after installation is complete.
Important:
Please read these instructions carefully prior to installation.
Please refer to your fitting instruction to ensure that the alloy tray is installed correctly.
Check the contents of this kit before commencing fitment and report any discrepancies.
Rhino-Rack
3 Pike Street, Rydalmere,
NSW 2116, Australia.
(Ph) (02) 9638 4744
(Fax) (02) 9638 4822
These instructions remain the property of Rhinorack Australia Pty Ltd and may not be used or changed for any other purpose than intended.

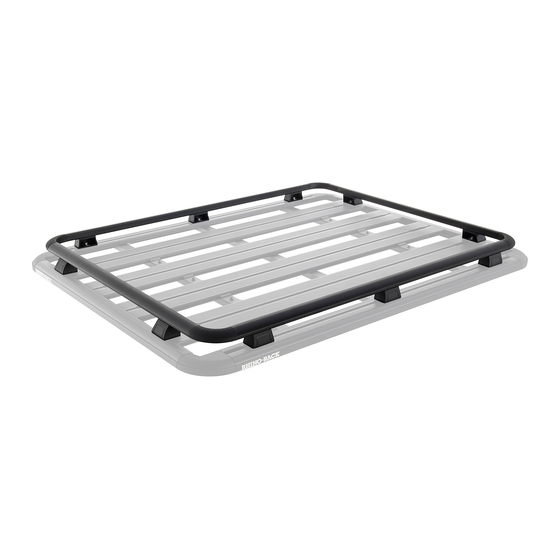

Rhino Pioneer Full Rail Kit
43230B, 43231B.)
1
3
4
Document No: R036
Prepared By: Nigel Greig
Authorised By: Chris Murty
2
10
8
7
9
CONTROLLED
43184B Full Rail Kit Shown
6
5
11
Issue No: 05
Issue Date: 17/08/2016
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for Rhino-Rack Pioneer 43180B
Summary of Contents for Rhino-Rack Pioneer 43180B
- Page 1 Please refer to your fitting instruction to ensure that the alloy tray is installed correctly. Check the contents of this kit before commencing fitment and report any discrepancies. 43184B Full Rail Kit Shown Rhino-Rack 3 Pike Street, Rydalmere, Document No: R036 NSW 2116, Australia.
- Page 2 Rhino Pioneer Full Rail Kit Quantity Item Component Name Part No. 43180B 43181B 43182B 43183B 43184B 43185B 43187B 43188B 43189B End Rail Extrusion Side Rail Extrusion Corner Moulding M511 Corner Moulding Cover M512 Rail Support End M513 Rail Support Side M514 Phillips Screw B176...
- Page 3 Rhino Pioneer Full Rail Kit Quantity Item Component Name Part No. 43201B 43227B 43228B 43229B 43230B 43231B End Rail Extrusion Side Rail Extrusion Corner Moulding M511 Corner Moulding Cover M512 Rail Support End M513 Rail Support Side M514 Phillips Screw B176 M8 x 20mm Hex Bolt B020...
- Page 4 Rhino Pioneer Full Rail Kit Fit Hardware to Mouldings Loosely fit hardware to the mouldings as shown below, leaving the hardware off half of the end supports. End supports are marked underneath with M513. Be sure to set the bolts so they locate half way through the channel nut (see image A below). End Moulding Rail Support M8 x 20 Hex Bolt...
- Page 5 Rhino Pioneer Full Rail Kit Fit End Rail Supports to End Rail Locate the end rail supports which are marked underneath with M513 and have the hardware fitted. Slide these end supports into the end rail extrusion. Fit the second corner moulding to the open end as shown below and retain with screw.
- Page 6 Rhino Pioneer Full Rail Kit Align End Supports Adjust the end supports (with hardware fitted) so they align with the appropriate plank ready for fitment. Refer to the images below for correct plank alignment to suit your tray. 5 Plank Trays 4 Plank Trays Insert First End Supports into Slots Lower the rail assembly onto the tray so that...
- Page 7 Rhino Pioneer Full Rail Kit Slide Rail Completely onto Tray Slide the rail assembly completely onto the tray. Correct Alignment Note the finished position for the end supports as detailed below. Fit Hardware to Front of Tray Place the remaining channel nuts into the slots at the front of the tray and slide them so they sit under the end supports.
