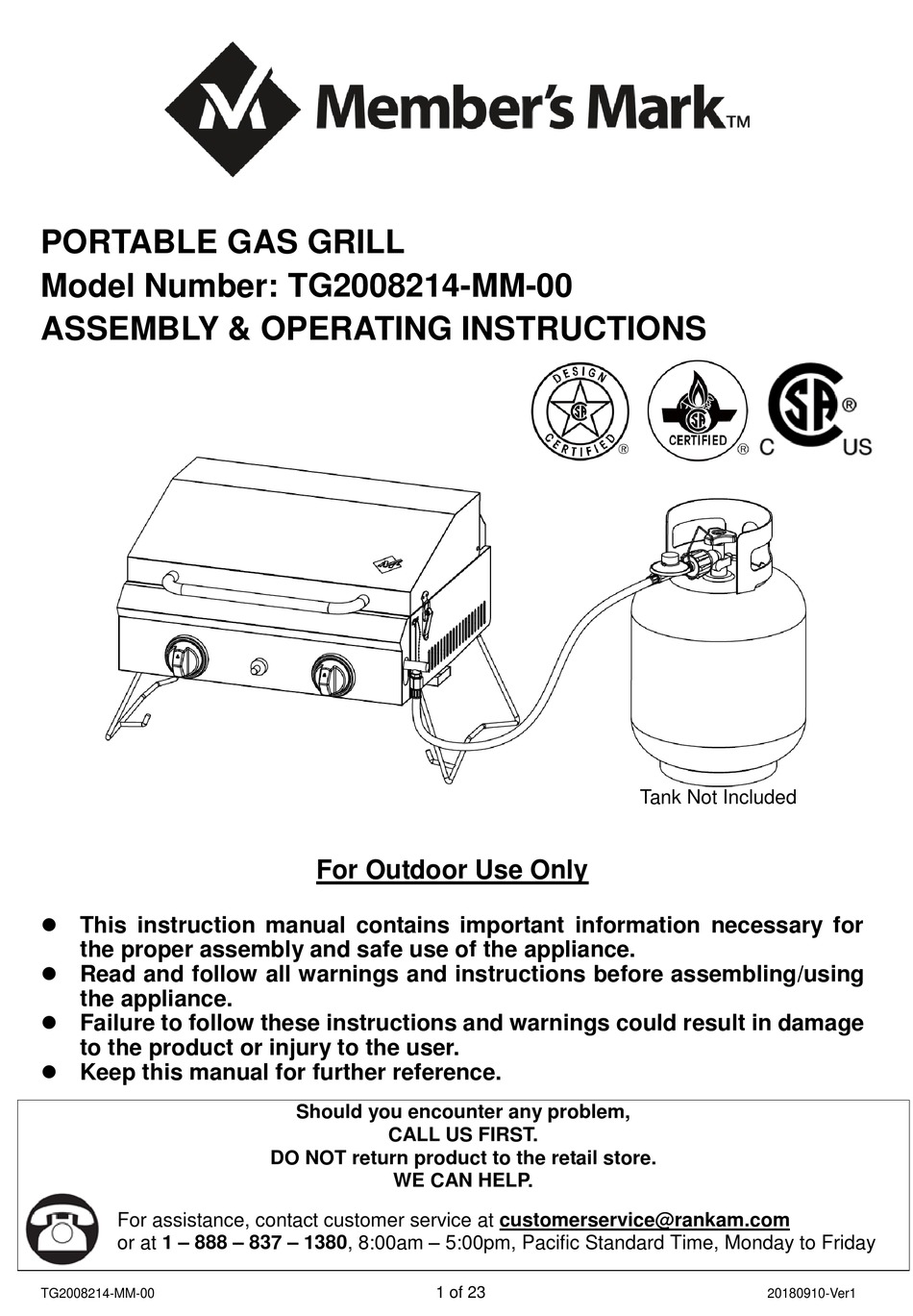

PORTABLE GAS GRILL
Model Number: TG2008214-MM-00
ASSEMBLY & OPERATING INSTRUCTIONS
 This instruction manual contains important information necessary for
the proper assembly and safe use of the appliance.
 Read and follow all warnings and instructions before assembling/using
the appliance.
 Failure to follow these instructions and warnings could result in damage
to the product or injury to the user.
 Keep this manual for further reference.
For assistance, contact customer service at customerservice@rankam.com
or at 1 – 888 – 837 – 1380, 8:00am – 5:00pm, Pacific Standard Time, Monday to Friday
TG2008214-MM-00
For Outdoor Use Only
Should you encounter any problem,
CALL US FIRST.
DO NOT return product to the retail store.
WE CAN HELP.
1 of 23
Tank Not Included
20180910-Ver1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TG2008214-MM-00 and is the answer not in the manual?

Questions and answers

Related Manuals for Member's Mark TG2008214-MM-00

Summary of Contents for Member's Mark TG2008214-MM-00

  • Page 1 PORTABLE GAS GRILL Model Number: TG2008214-MM-00 ASSEMBLY & OPERATING INSTRUCTIONS Tank Not Included For Outdoor Use Only  This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.  Read and follow all warnings and instructions before assembling/using the appliance.
  • Page 2 Do not attempt to extinguish an oil or grease fire with water. Failure to follow these instructions could result in fire or explosion which could cause property damage, personal injury or death. 2 of 23 TG2008214-MM-00 20180910-Ver1...

  • Page 3: Prop 65 Warning

     This grill is for outdoor use only and should only be operated in a well-ventilated space. Never operate in an enclosed space, garage or building. 3 of 23 TG2008214-MM-00 20180910-Ver1...
  • Page 4 Use type BC or ABC fire extinguisher.  When cooking, the appliance must be on a level, stable noncombustible surface in an area clear of combustible material. An asphalt surface (blacktop) may not be acceptable for this appliance. 4 of 23 TG2008214-MM-00 20180910-Ver1...

  • Page 5: Lp Gas Cylinder

    Storage of an outdoor cooking gas appliance indoors is permissible ONLY if the cylinder is disconnected and removed from the outdoor cooking gas appliance.  The cylinder should ALWAYS be put in an upright position. 5 of 23 TG2008214-MM-00 20180910-Ver1...

  • Page 6: Connection Procedures

    Inspect valve connections, port, and regulator assembly. Look for any damage or debris. Remove any debris. Inspect hose for damage. Never attempt to use damaged or obstructed equipment. See local LP gas dealer for repair. 6 of 23 TG2008214-MM-00 20180910-Ver1...
  • Page 7  Place dust cap on cylinder valve outlet whenever cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder. Other types of caps or plugs may result in leakage of propane. 7 of 23 TG2008214-MM-00 20180910-Ver1...

  • Page 8: Product Diagram

    PRODUCT DIAGRAM 8 of 23 TG2008214-MM-00 20180910-Ver1...

  • Page 9: Component List

    1. Grill Body 2. Flame Tamer 3. Cooking Grate Qty: 1pc Qty: 2pcs Qty: 1pc 4. Left Leg 5. Right Leg 6. Control Knob Qty: 1pc Qty: 1pc Qty: 2pcs 7. Grease Tray Qty: 1pc 9 of 23 TG2008214-MM-00 20180910-Ver1...
  • Page 10 Igniter Heat Shield Control Panel Igniter Knob Bezel Match Holder Burner Ignition Wire (Right) Regulator Hook Rubber Pad Lower Latch Ignition Wire (Left) Flame Tamer Cooking Grate Left Leg Right Leg Control Knob Grease Tray 10 of 23 TG2008214-MM-00 20180910-Ver1...

  • Page 11: Assembly Procedures

    Step 2: Insert the Control Knobs (6) onto the pin coming from the valve. Apply firm pressure to secure the knob. Make sure the flat end of the pin is aligned with the head of the knob (the end with the triangle pointing up). 11 of 23 TG2008214-MM-00 20180910-Ver1...
  • Page 12 Step 3: Unlock the side latch and open the lid. Place the Flame Tamer (2) above each burner and place the Cooking Grate (3) along the inner ledge. Step 4: Insert the Grease Tray (7) to the bottom of the grill body. 12 of 23 TG2008214-MM-00 20180910-Ver1...
  • Page 13 Step 5: Your unit is now fully assembled. Be sure to carefully and fully review the Instruction Manual before using this appliance. When transporting or storing the appliance without tank attached, hook the regulator onto the lid handle to prevent damage to regulator. 13 of 23 TG2008214-MM-00 20180910-Ver1...

  • Page 14: Before Testing

    Soap bubbles will appear if a leak is present. Points of leak test: 1. Control valve to manifold 2. Manifold to hose assembly 3. The full length of gas hose 4. Regulator connection to gas hose 14 of 23 TG2008214-MM-00 20180910-Ver1...
  • Page 15 Before Cooking for the First Time Operate grill 15 minutes with grill lid closed and gas control on HIGH. This will heat-clean internal components and eliminate odor from oil of grill. WARNING Always unfold the legs during cooking and lighting. 15 of 23 TG2008214-MM-00 20180910-Ver1...

  • Page 16: Lighting Instructions

    Push and turn burner control knob to "HI" and immediately press the ignition button. If ignition does NOT occur in 5 seconds, turn the burner control knob off, wait 5 minutes to allow gas to dissipate. Repeat steps 1 to 5. 16 of 23 TG2008214-MM-00 20180910-Ver1...
  • Page 17  Handle temperatures with grill on HIGH will be too HOT to touch with bare hands. Use hot pads or mitts to handle the grill when hot. 17 of 23 TG2008214-MM-00 20180910-Ver1...

  • Page 18: Flame Characteristics

    If any of these conditions exist call our customer service line. Visually check the burner flames prior to each use. The flames should look like this picture. If not, refer to the burner maintenance part of this manual. 18 of 23 TG2008214-MM-00 20180910-Ver1...

  • Page 19: Maintenance And Cleaning Instructions

    You should inspect the burners at least once a year or immediately after any of the following conditions occur: The smell of gas in conjunction with the burner flames appearing yellow. The grill does not reach temperature. The grill heats unevenly. The burners make popping noises. 19 of 23 TG2008214-MM-00 20180910-Ver1...

  • Page 20: Burner Replacement

    3. Open lid and remove the cooking grate and flame tamers. 4. Remove the burner fixing bolt. 5. Remove the fixing bolt of the ignition electrode & wire. 6. Remove the burner from the grill body. Step 4 Step 5 Step 6 20 of 23 TG2008214-MM-00 20180910-Ver1...

  • Page 21: Burner Cleaning

    Burner flames will be yellow, with excessive noise, lifting or flash back if the burner is not installed properly. 3. Insert the fixing bolt of the ignition electrode & wire and tighten. 4. Insert the burner fixing bolt and tighten. Step 3 Step 2 Step 4 21 of 23 TG2008214-MM-00 20180910-Ver1...

  • Page 22: Troubleshooting

    Grill is too hot. 1. Excess grease build-up causing grease fires. Clean the grill according to Maintenance and Cleaning instructions. 2. Damaged or faulty regulator. Replace with factory authorized parts. 3. Cook on a lower temperature setting. 22 of 23 TG2008214-MM-00 20180910-Ver1...

  • Page 23: Limited Warranty

    1 – 888 – 837 – 1380, 8:00am – 5:00pm, Pacific Standard Time, Monday to Friday Manufacturer Information RANKAM (CHINA) MANUFACTURING COMPANY LIMITED Address: 18/F., New Lee Wah Centre, 88 Tokwawan Road, Kowloon, Hong Kong 23 of 23 TG2008214-MM-00 20180910-Ver1...
