- Page 1 Operating and installation instructions Induction hobs To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time. en-GB M.-Nr. 11 184 721...
-
Page 2: Table Of Contents
Cleaning the hob for the first time............... 33 Switching on the hob for the first time ..............33 Miele@home ......................34 Installing the Miele app .................. 34 Setting up Miele@home ................. 34 Establishing a direct connection with the cooker hood ........38... - Page 3 Contents Operation......................40 Safety notes for operation ................... 40 Switching the hob on ..................41 Switching off a cooking zone/the hob..............41 Positioning cookware ..................41 Power level ......................43 Setting the power level................... 43 Setting the power level – extended setting range .......... 43 Changing the power level................
- Page 4 Contents Good to know ....................52 How induction hobs work ................... 52 Noises........................52 Pans........................53 Adjusting settings....................55 Cleaning and care ..................... 58 Troubleshooting....................60 Messages in the display..................60 Unexpected behaviour ..................62 Unsatisfactory results..................64 General problems or technical faults..............64 After sales service.....................
- Page 5 Contents Electrical connection ................... 94 Product data sheets ................... 97 UK Conformity declaration .................. 100...
-
Page 6: Warning And Safety Instructions
Miele cannot be held liable for injury or damage caused by non- compliance with these instructions. Keep these instructions in a safe place and pass them on to any... - Page 7 Warning and Safety instructions Correct application This hob is intended for domestic use and use in other similar environments. This hob is not intended for outdoor use. It is intended for domestic use only to cook food and keep it warm.
- Page 8 Warning and Safety instructions Safety with children Children under 8 years of age must be kept away from the hob unless they are constantly supervised. Children over 8 years of age may use the hob without supervision if its operation has been clearly explained to them and they are able to use it safely.
- Page 9 Unauthorised installation, maintenance and repairs can cause considerable danger for the user. Installation, maintenance and repairs must only be carried out by a Miele authorised technician. Damage to the hob can compromise your safety. Check the hob for visible signs of damage. Do not use the hob if it is damaged.
- Page 10 Miele authorised service technician. Otherwise the warranty is invalidated. Miele can only guarantee the safety of the appliance when genuine original Miele replacement parts are used. Faulty components must only be replaced by Miele spare parts.
- Page 11 Warning and Safety instructions If the hob is installed behind a cabinet door, do not close the door while the hob is in use. Heat and moisture can build up behind the closed door. This can result in damage to the hob, the housing unit and the floor.
- Page 12 Warning and Safety instructions Correct use The hob gets hot when in use and remains hot for a while after being switched off. There is a danger of burning until the residual heat indicators go out. Oil and fat can overheat and catch fire. Do not leave the hob unattended when cooking with oil and fat.
- Page 13 Warning and Safety instructions You could burn yourself on the hot hob. Protect your hands with heat-resistant pot holders or gloves when handling hot pots and pans. Do not let them get wet or damp, as this causes heat to transfer through the material more quickly with the risk of scalding or burning yourself.
- Page 14 Warning and Safety instructions Because induction heating works so quickly, the base of the pan could, under certain circumstances, heat up to the temperature at which oil or fat self-ignites within a very short time. Never leave the hob unattended during use! ...
- Page 15 Warning and Safety instructions The induction generators could be damaged or even destroyed if you use an induction adapter plate for cookware. Do not use induction adapter plates.
- Page 16 (see relevant section). Miele will guarantee to supply functional spare parts for a minimum of 10 years and up to 15 years following the discontinuation of your hob.
-
Page 17: Sustainability And Environmental Protection
Recycling the packaging material your local community, with your dealer reduces the use of raw materials. Use or with Miele, free of charge. By law, material-specific collection points for you are solely responsible for deleting valuable materials and take advantage any personal data from the old of return options. -
Page 18: Familiarisation

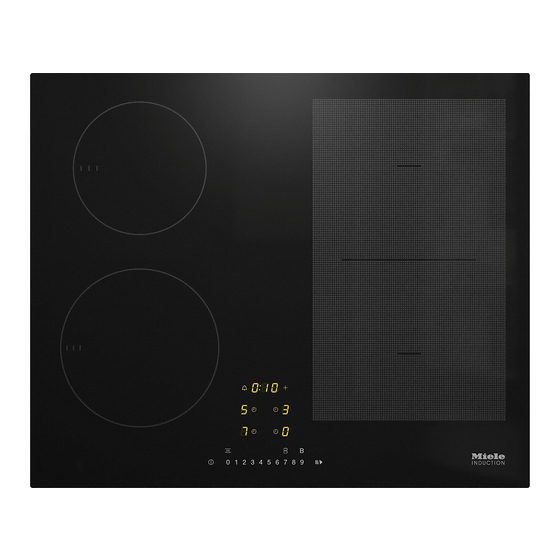

Familiarisation KM 7404 FX, KM 7464 FR, KM 7464 FL, KM 7466 FR, KM 7466 FL a Cooking zone with TwinBooster b Cooking zone with TwinBooster c PowerFlex cooking zone with TwinBooster can be combined with PowerFlex cooking zone to form PowerFlex cooking area d PowerFlex cooking zone with TwinBooster e Controls and indicators... -
Page 19: Km 7414 Fx, Km 7414 Fx Glass, Km 7474 Fr, Km 7474 Fl
Familiarisation KM 7414 FX, KM 7414 FX Glass, KM 7474 FR, KM 7474 FL a Cooking zone with TwinBooster b Cooking zone with TwinBooster c PowerFlex cooking zone with TwinBooster can be combined with PowerFlex cooking zone to form PowerFlex cooking area d PowerFlex cooking zone with TwinBooster e Controls and indicators... -
Page 20: Km 7465 Fr, Km 7465 Fl
Familiarisation KM 7465 FR, KM 7465 FL a PowerFlex cooking zone with TwinBooster b PowerFlex cooking zone with TwinBooster can be combined with PowerFlex cooking zone to form PowerFlex cooking area c PowerFlex cooking zone with TwinBooster can be combined with PowerFlex cooking zone to form PowerFlex cooking area d PowerFlex cooking zone with TwinBooster e Controls and indicators... -
Page 21: Controls And Display
Familiarisation Controls and display a Hob On/Off sensor control b Numerical display sensor controls – To set the power level – To set the times c PowerFlex cooking zones sensor control For manual connection/disconnection of PowerFlex cooking zones d Stop&Go sensor control To stop/start a cooking process in progress e Stop&Go display Stop&Go function is activated... - Page 22 Familiarisation j Cooking zone selection and display sensor control Cooking zone is ready for operation to Power level Residual heat Auto heat-up Cookware missing or unsuitable TwinBooster level 1 TwinBooster level 2 ...
-
Page 23: Cooking Zones
Familiarisation Cooking zones KM 7404 FX, KM 7464 FR, KM 7464 FL, KM 7466 FR, KM 7466 FL Cooking Max. rating Linked Size in cm zone cooking in watts for 230 V Ø zone Normal 1850 14–19 – TwinBooster, level 1 2500 TwinBooster, level 2 3000 Normal 1400 ... - Page 24 Familiarisation KM 7414 FX, KM 7414 FX Glass, KM 7474 FR, KM 7474 FL Cooking Max. rating Linked Size in cm zone cooking in watts for 230 V Ø zone Normal 2300 16–22 – TwinBooster, level 1 3000 TwinBooster, level 2 3650 Normal 1400 10–16 –...
- Page 25 Familiarisation KM 7465 FR, KM 7465 FL Cooking Max. rating Linked Size in cm zone cooking in watts for 230 V Ø zone 15 x 15 Normal 2100 15–23 – TwinBooster, level 1 3000 23 x 19 TwinBooster, level 2 3650 15 x 15 Normal 2100 15–23 –...
-
Page 26: Power Management
Familiarisation Effects of power distribution Power management If a cooking zone gives power to Total power another zone, this can have the The hob has a maximum total permitted following effects on the zone giving the power consumption which cannot be power: exceeded for safety reasons. -
Page 27: Operating Principles
Familiarisation Selecting a cooking zone Operating principles If you want to configure settings for a Hob when switched off cooking zone, the cooking zone must When the hob is switched off, you can be selected first. only see the printed symbols for the To select a cooking zone, touch the sensor controls and the numerical relevant cooking zone indicator. -
Page 28: Networking
WiFi module. The hob can be connection with a Miele cooker hood, connected to your home WiFi network you can do the following: or simply to your Miele cooker hood. - Control a connected Miele cooker Miele@home hood automatically via the hob After installing the Miele app on a settings (Con@ctivity 3.0) -
Page 29: Functions
Con@ctivity 3.0 is the direct quantities can be heated up quickly, communication system between your e.g. when boiling water for cooking hob and a Miele cooker hood. pasta. Communication is achieved by means Stop&Go of networking. Con@ctivity 3.0 enables the cooker hood to operate When Stop&Go is activated, the power... -
Page 30: Timer
Familiarisation Timer Keeping warm The timer can be used for the following This function enables food to be kept two functions: warm after it has finished cooking. - For setting the minute minder The maximum duration for keeping food warm is 2 hours. - For automatically switching a cooking zone off Programming... -
Page 31: Safety Switch-Off
Familiarisation Safety switch-off Power level* Maximum operating time [h:min] Sensor controls are covered Safety setting Your hob will switch off automatically if one or several of the sensor controls 10:00 8:00 5:00 remain covered for longer than 10 seconds, for example, by finger 10:00 7:00 4:00... -
Page 32: Overheating Protection
Familiarisation Overheating protection Triggering the overheating protection mechanism In order to prevent the hob from being damaged by excessive temperatures, The overheating protection may be the overheating protection mechanism activated under the following intervenes in one of the following ways: circumstances: - The cookware being heated is empty. -
Page 33: Commissioning
Commissioning Unpacking the hob Switching on the hob for the first time Please stick the data plate for the appliance, supplied with this The metal components have a documentation, in the space provided protective coating. When the hob is in the “Customer Service used for the first time, this causes a Department”... -
Page 34: Miele@Home
The hob requires max. 2 W in ® networked standby. charge from the Apple App Store from the Google Play Store™. There are a number of ways of connecting your hob to your WiFi network. Install the Miele app on your mobile device. - Page 35 Miele in the timer display for 10 seconds. cooker hood (Con@ctivity 3.0). You now have 10 minutes to configure - The Miele app is installed on your the WiFi. mobile device. Follow the user navigation in the app.
- Page 36 WPS on your router quickly enough. Repeat the steps above. Install the Miele app. Follow the user navigation in the app. You can use all Miele@home functions. Tip: If your WiFi router does not support WPS, please connect via the Miele app.
- Page 37 Commissioning Cancelling the process Touch any sensor control. Resetting settings Reset the settings if you are disposing of your hob, selling it or putting a used hob into operation. This is the only way to ensure that all personal data has been removed and the previous owner will no longer be able to access the hob.
-
Page 38: Establishing A Direct Connection With The Cooker Hood
The hob requires max. 2 W in associated operating and installation networked standby. instructions. Availability of the WiFi connection - Miele cooker hood with The WiFi connection shares a frequency Con@ctivity 3.0 range with other appliances (including - The hob is not connected to your... - Page 39 Commissioning Cancelling the process Touch any sensor control. Resetting settings Reset the settings if you are disposing of your hob, selling it or putting a used hob into operation. This is the only way to ensure that all personal data has been removed and the previous owner will no longer be able to access the hob.
-
Page 40: Operation
Operation Safety notes for operation Risk of fire with overheated food. Unattended food can overheat and catch alight. Do not leave the hob unattended whilst it is being used. Risk of burning due to hot cooking zones. The cooking zones will be hot after use. Do not touch the cooking zones while the residual heat indicators are on. -
Page 41: Switching The Hob On
Operation Switching the hob on Positioning cookware Touch the sensor control. Refer to the cooking zone data for your hob model for information about Further sensor controls will light up. cookware sizes and the corresponding positions (see “Familiarisation – If no further entry is made, the hob will Cooking zone data”). - Page 42 Operation PowerFlex cooking area PowerFlex cooking area...
-
Page 43: Power Level
Operation Changing the power level Power level Touch the relevant cooking zone Setting the power level indicator. Permanent pan recognition is activated The cooking zone indicator will begin to as standard (see “Adjusting settings”). flash. When the hob is switched on and you place an item of cookware on a cooking ... -
Page 44: Booster
Operation Deactivating the Booster Booster Touch the sensor control for the Activating the Booster cooking zone you wish to use. When the Booster function is activated, The cooking zone indicator will begin to the settings for the linked cooking zone flash. -
Page 45: Auto Heat-Up
Operation Activating auto heat-up Auto heat-up Briefly touch the indicator for the The heat-up time depends on which required cooking zone. continued cooking setting has been chosen: Touch the sensor control for the continued cooking setting you want Continued Heat-up time until a tone sounds and lights up in... -
Page 46: Timer
Operation Setting the minute minder Timer Touch the sensor control. Setting timer durations The timer display flashes. A duration of between 1 minute (:) and 9 hours 59 minutes (:) can be Set the required duration (see “Timer set. – Setting timer durations”). Durations of up to 59 minutes are Touch the sensor control or wait shown in minutes (00:59) and durations... -
Page 47: Setting The Switch-Off Time
Operation Setting the switch-off time Touch the sensor control for the cooking zone you wish to use. A cooking zone will switch off when the maximum operating time has elapsed, The timer display flashes. independently of a set switch-off time ... -
Page 48: System Lock
Operation System lock Safety lock Activating the system lock Activating the safety lock When the safety lock is activated: All sensor controls are locked. A set minute minder time will continue to - The cooking zones and the hob can count down. -
Page 49: Activating The Recall Function
Operation Activating the Recall function Hob data Switch the hob on again. Displaying the model identifier/serial number Immediately after switching the hob on, touch one of the flashing cooking There must not be any cookware on zone sensor controls. the hob. -
Page 50: Activating/Deactivating Demo Mode
Operation Activating/deactivating demo mode Switch the hob on. Press the 0 and 2 sensor controls on the numerical display at the same time for 6 seconds. The following will flash in the timer display for a few seconds: - alternating with (demo mode activated) - ... -
Page 51: Setting Ranges
Setting ranges The hob is programmed with 9 power levels at the factory. If you wish to fine-tune a setting, you can extend the power level range to 17 power levels (see “Adjusting settings”). Setting range Factory Extended setting setting (9 power (17 power levels) levels) Melting butter... -
Page 52: Good To Know
Good to know How induction hobs work Noises An induction coil is located under each When using induction cooking zones, induction cooking zone. The coil the following noises can occur in the creates a magnetic field that reacts cookware, depending on what it is directly with the base of the pan and made of and how it has been heats it up. -
Page 53: Pans
Good to know Unsuitable pans. Pans - stainless steel pans without a Suitable cookware magnetic base - Stainless steel cookware with a - aluminium or copper pans magnetic base - glass, ceramic or earthenware pots - Enamelled steel cookware and pans - Cast iron Testing pans Please be aware that the properties of... - Page 54 Good to know Cookware tips - Please note that the cookware diameter quoted by manufacturers - Position the cookware as centrally as often refers to the maximum diameter possible on the relevant cooking or diameter of the top rim. The zone/cooking area.
-
Page 55: Adjusting Settings
Adjusting settings Accessing programming mode Setting a programme Whilst the programme is visible in the The hob is switched off. display (e.g. :), touch the + sensor control repeatedly until the number of Touch and hold the and sensor the programme you want appears in controls until the + sensor control the display. - Page 56 Adjusting settings Settings Programme Code P:01 Demo mode C:00 Demo mode off C:01 Demo mode on P:02 C:00 Power management 3680 W C:01 C:02 3000 W 2000 W C:03 C:04 1000 W P:03 Factory default settings C:00 Do not restore factory default settings C:01 Restore factory default settings Power level setting range 9 power levels + Booster...
- Page 57 C:03 Connection possible via WPS push button C:04 WiFi reset to default ( C:00 C:05 Direct WiFi connection of hob and cooker hood without Miele app (Con@ctivity 3.0) P:12 Sensor controls reaction speed C:00 Slow C:01 Normal C:02...
-
Page 58: Cleaning And Care
Cleaning and care Safety notes on cleaning and care Risk of burns due to hot surfaces. All parts of the hob may be hot after use. Switch the hob off. Allow the hob to cool down before cleaning it. All surfaces could be discoloured or damaged if unsuitable cleaning agents are used or if residues from suitable cleaning agents are heated on the hob. - Page 59 - Hard, abrasive brushes Clean the glass ceramic surface with - Eraser stain remover blocks the Miele ceramic and stainless steel cleaner (see “Optional accessories – - Sponges Cleaning and care products”) or with a proprietary ceramic glass cleaner.
-
Page 60: Troubleshooting
Troubleshooting Messages in the display Problem Cause and remedy The symbol lights up No cookware is present on the cooking zone. or flashes alternately Unsuitable cookware is present on the cooking zone. with the set power level The diameter of the base of the cookware is too or ... - Page 61 Troubleshooting Problem Cause and remedy will flash alternately The overheating protection mechanism has been with in the timer activated. display. Allow the hob to cool down. Rectify the causes of the overheating (see “Familiarisation – Overheating protection”). ...
-
Page 62: Unexpected Behaviour
Interrupt the power supply to the hob for approx. 1 minute. If the problem persists after power has been restored, please contact Miele. Power level 9 is auto- Operating both zones at power level 9 exceeds the matically reduced if you permitted maximum power for the two zones. - Page 63 Troubleshooting Problem Cause and remedy A cooking zone or the The overheating protection mechanism has been whole hob switches off activated. automatically. Allow the hob to cool down. Rectify the causes of the overheating (see “Familiarisation – Overheating protection”). ...
-
Page 64: Unsatisfactory Results
– switching off at the residual current device. If the hob will still not turn on after resetting the trip switch in the fuse box or the residual current device, contact a qualified electrician or the Miele Customer Service Department. A smell and vapours are The metal components have a protective coating. - Page 65 Troubleshooting Problem Cause and remedy An operating noise can The cooling fan runs until the hob has cooled down be heard after the appli- and then switches off automatically. ance has been switched off.
-
Page 66: After Sales Service
After sales service Information to help you rectify faults yourself and about Miele spare parts can be found at www.miele.com/service. Contact in the event of a fault In the event of a fault which you cannot remedy yourself, please contact your Miele dealer or the Miele Customer Service Department. -
Page 67: Note For Test Institutes
After sales service Note for test institutes Test food acc. to EN 60350-2 9 power levels are programmed at the factory. For testing in accordance with the above standard, programme the hob to the extended power level setting (see “Adjusting settings”). Power level ... -
Page 68: Optional Accessories
Optional accessories Cookware Cleaning and care products Miele offers a wide range of cookware. Ceramic and stainless steel hob These have all been optimised for Miele cleaner 250 ml appliances in terms of functionality and Removes heavy soiling, limescale dimensions. Detailed information is deposits and aluminium residues. -
Page 69: Installation
*INSTALLATION* Installation Safety notes for installation Risk of damage from incorrect installation. Incorrect installation can cause damage to the hob. The hob must only be installed by a qualified specialist. Risk of electric shock from mains voltage. Incorrect connection to the mains supply may result in an electric shock. - Page 70 *INSTALLATION* Installation The veneer or laminate coatings of worktops (or adjacent kitchen units) must be treated with 100 °C heat-resistant adhesive which will not dissolve or distort. Any backmoulds must be of heat-resistant material. Remember to maintain the minimum safety distances (see “Installation –...
-
Page 71: Additional Safety Notes For Surface-Mounted Installation
*INSTALLATION* Installation Additional safety notes for surface-mounted installation Damage caused by incorrect installation. Using sealant under the hob could result in damage to the hob and the worktop if the hob ever needs to be removed. Do not use sealant between the hob and the worktop. The sealing strip under the edge of the hob provides a sufficient seal for the worktop. -
Page 72: Additional Safety Notes For Flush-Fit Installation
*INSTALLATION* Installation Additional safety notes for flush-fit installation Damage from unsuitable sealant. Unsuitable sealant can damage natural stone. For natural stone worktops and natural stone tiles, only use silicone sealant that is specially formulated for natural stone. Follow the manufacturer’s instructions. ... -
Page 73: Safety Distances
*INSTALLATION* Installation Safety distances Safety distance above the hob The safety distance specified by the manufacturer of the cooker hood must be maintained between the hob and the cooker hood above it. When two or more appliances which have different safety distances are installed together below a cooker hood, you should observe the greatest safety distance. - Page 74 *INSTALLATION* Installation Safety distance behind and to the side of the hob The minimum safety distances shown below must be maintained between the appliance and a tall cabinet or wall: - Between the back of the worktop cut-out and the rear edge of the worktop: 50 mm Not allowed...
- Page 75 *INSTALLATION* Installation Minimum safety distance underneath Rear wall cut-out the hob For ventilation and accommodating To install the hob while maintaining the the mains connection cable, you will minimum safety distances, you can need to create a cut-out in the rear wall. choose from 3 variants: Create a cut-out in the rear wall using 1.
- Page 76 *INSTALLATION* Installation 1. Without intermediate shelf or base panel To ensure sufficient ventilation to the hob, a minimum safety distance must be left between the underside of the hob and any drawer or oven. The minimum safety distance between the underside of the hob and: - Upper edge of drawer: ≥...
- Page 77 *INSTALLATION* Installation 3. Air intake-optimised base panel The performance of the hob depends on the ventilation. The air intake-optimised base panel has openings where the fans are positioned. This section contains instructions for creating an air intake-optimised base panel. ≤ 40 mm ≥...
- Page 78 *INSTALLATION* Installation Positions and cut-outs of the ventilation openings X2.1 Y2.1 X1.1 Y1.1 Not to scale. View from above. Surface-mounted cut-out shown. Also applies to flush-fit installation. a Middle of the cut-out height b Middle of the cut-out width c Cut-out for fan, round (Ø 55–60 mm) d Gap (≥...
- Page 79 *INSTALLATION* Installation Safety distance from the niche cladding If niche cladding is installed, a minimum safety distance must be maintained between the worktop cut-out and the cladding. High temperatures can alter or damage these materials. Flush-fit installation Surface-mounted installation a Masonry b Dimension x = thickness of the niche cladding material c Worktop d Worktop cut-out...
-
Page 80: Building-In Dimensions For Surface-Mounted Installation
*INSTALLATION* Installation Building-in dimensions for surface-mounted installation KM 7464 FR, KM 7466 FR All dimensions are given in mm. a Front b Mains connection box The mains connection cable (L = 1440 mm) is supplied loose... - Page 81 *INSTALLATION* Installation KM 7465 FR All dimensions are given in mm. a Front b Mains connection box The mains connection cable (L = 1440 mm) is supplied loose...
-
Page 82: Km 7464 Fl, Km 7465 Fl
*INSTALLATION* Installation KM 7464 FL, KM 7465 FL All dimensions are given in mm. a Front b Mains connection box The mains connection cable (L = 1440 mm) is supplied loose... - Page 83 *INSTALLATION* Installation KM 7466 FL All dimensions are given in mm. a Front b Mains connection box The mains connection cable (L = 1440 mm) is supplied loose...
- Page 84 *INSTALLATION* Installation KM 7474 FR All dimensions are given in mm. a Front b Mains connection box The mains connection cable (L = 1440 mm) is supplied loose...
- Page 85 *INSTALLATION* Installation KM 7474 FL All dimensions are given in mm. a Front b Mains connection box The mains connection cable (L = 1440 mm) is supplied loose...
-
Page 86: Installation Dimensions For Flush-Fit Installation
*INSTALLATION* Installation Installation dimensions for flush-fit installation KM 7404 FX All dimensions are given in mm. a Front b Mains connection box The mains connection cable (L = 1440 mm) is supplied loose c Stepped cut-out, natural stone worktop d Wooden batten 13 mm (not supplied) - Page 87 *INSTALLATION* Installation KM 7414 FX All dimensions are given in mm. a Front b Mains connection box The mains connection cable (L = 1440 mm) is supplied loose c Stepped cut-out, natural stone worktop d Wooden batten 13 mm (not supplied)
-
Page 88: Km 7414 Fx Glass
*INSTALLATION* Installation KM 7414 FX Glass All dimensions are given in mm. a Front b Mains connection box The mains connection cable (L = 1440 mm) is supplied loose c Stepped cut-out, natural stone worktop d Wooden batten 13 mm (not supplied) -
Page 89: Km 7464 Fl, Km 7465 Fl
*INSTALLATION* Installation KM 7464 FL, KM 7465 FL All dimensions are given in mm. a Front b Mains connection box The mains connection cable (L = 1440 mm) is supplied loose c Stepped cut-out, natural stone worktop d Wooden batten 12 mm (not supplied) - Page 90 *INSTALLATION* Installation KM 7466 FL All dimensions are given in mm. a Front b Mains connection box The mains connection cable (L = 1440 mm) is supplied loose c Stepped cut-out, natural stone worktop d Wooden batten 12 mm (not supplied)
- Page 91 *INSTALLATION* Installation KM 7474 FL All dimensions are given in mm. a Front b Mains connection box The mains connection cable (L = 1440 mm) is supplied loose c Stepped cut-out, natural stone worktop d Wooden batten 12 mm (not supplied)
-
Page 92: Installing A Surface-Mounted Hob
*INSTALLATION* Installation the worktop on all sides. This is Installing a surface-mounted important to ensure an effective seal all round. Create the worktop cut-out. If the seal does not sit flush with the Remember to maintain the minimum worktop in the corners, the corner safety distances (see “Installation –... -
Page 93: Installing The Hob Flush With The Worktop
*INSTALLATION* Installation If an air intake-optimised base panel Installing the hob flush with the is installed, position the hob so that worktop the fans are located above the cut- Create the worktop cut-out. outs. Remember to maintain the minimum ... - Page 94 Please ensure these match considerable danger for the user. the household mains supply. Miele cannot be held liable for Please see wiring diagrams for damage or injury caused by connection. (N.B. This appliance is...
- Page 95 H 05 VV-F (PVC Residual current device (RCD) insulated) with a suitable cross section. A suitable connection cable is available Switch the main switch from 1 (on) to to order from Miele. 0 (off) or press the test button.
- Page 96 *INSTALLATION* Installation Wiring diagram a b c d e Some connection methods are not permitted in all installation locations. 200-240 V~ Ensure compliance with national 200-240 V~ regulations and any additional 200-240 V~ regulations issued by the local electricity provider. The maximum load per connected live conductor is 3650 W.
- Page 97 Information for domestic electric hobs In acc. with regulation (EU) No. 66/2014 MIELE Model name/identifier KM 7404 FX Number of cooking zones and/or areas For circular cooking zones: diameter of useful 1. = Ø 140-190 mm surface area/cooking zone 2.
- Page 98 *INSTALLATION* Installation Information for domestic electric hobs In acc. with regulation (EU) No. 66/2014 MIELE Model name/identifier KM 7464 FR, KM 7464 FL, KM 7466 FR, KM 7466 FL Number of cooking zones and/or areas For circular cooking zones: diameter of useful 1.
- Page 99 *INSTALLATION* Installation Information for domestic electric hobs In acc. with regulation (EU) No. 66/2014 MIELE Model name/identifier KM 7474 FR, KM 7474 FL Number of cooking zones and/or areas For circular cooking zones: diameter of useful 1. = Ø 160-220 mm surface area/cooking zone 2.
- Page 100 *INSTALLATION* Installation UK Conformity declaration Miele hereby declares that this ceramic induction hob complies with UK Radio Equipment Regulations 2017, as amended. The complete text of the UK declaration of conformity is available from one of the following internet addresses: - Products, Download from www.miele.co.uk...
- Page 103 United Kingdom Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW Tel: 0330 160 6600, Internet: www.miele.co.uk, E-mail: info@miele.co.uk Australia Ireland Singapore Miele Australia Pty. Ltd. Miele Ireland Ltd. Miele Pte. Ltd. ACN 005 635 398 2024 Bianconi Avenue...
- Page 104 KM 7404 FX, KM 7414 FX, KM 7414 FX Glas, KM 7464 FR, KM 7464 FL, KM 7465 FR, KM 7465 FL, KM 7466 FR, KM 7466 FL, KM 7474 FR, KM 7474 FL en-GB M.-Nr. 11 184 721 / 00...
