Main Processing Unit - H3C SecPath F5000-A5 Installation Manual

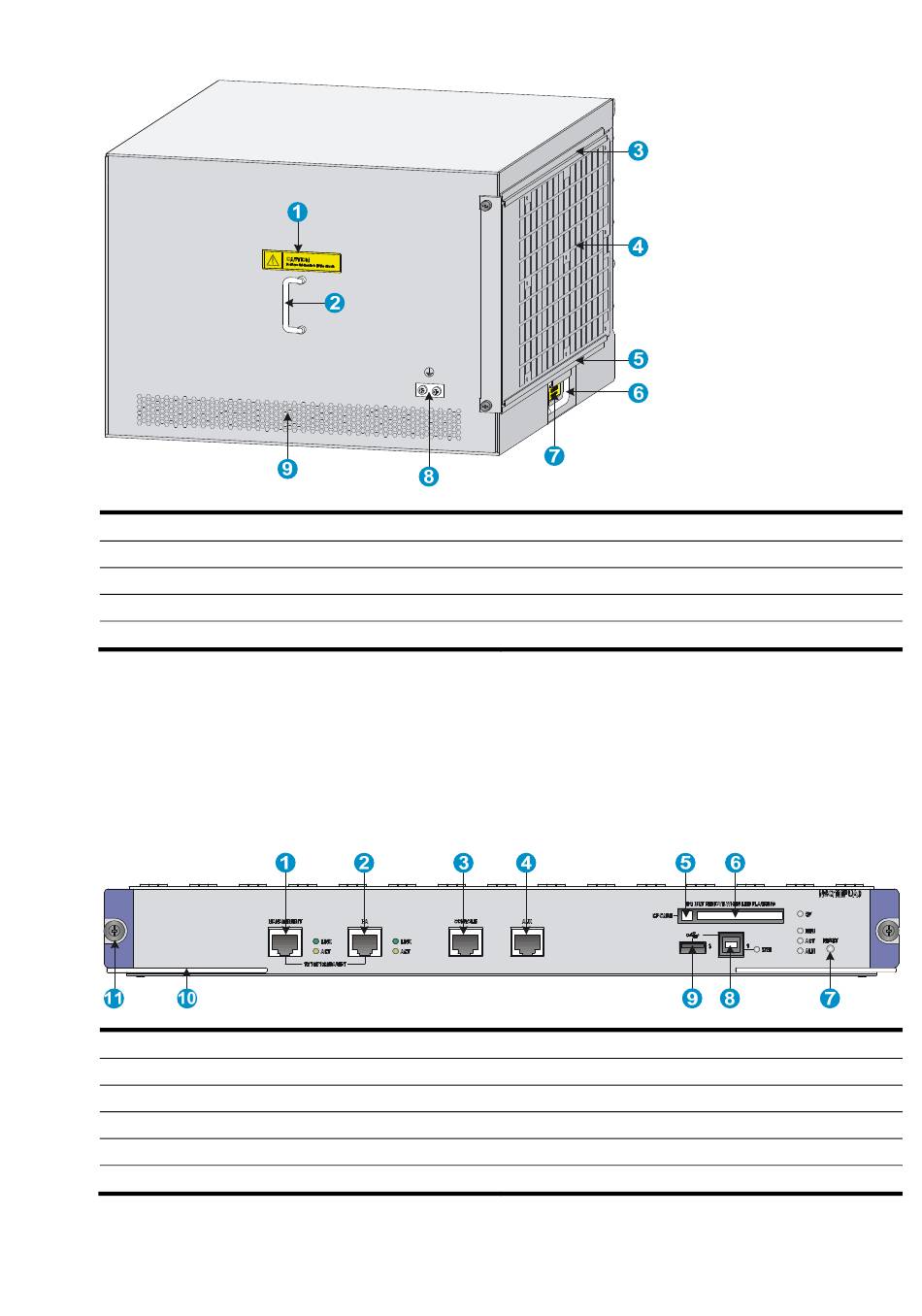

Figure 58 Rear view
(1) Warning label
(3) (Optional) Upper slide rail for the air filter
(5) (Optional) Lower slide rail for the air filter
(7) Weight support warning label (Max. weight of 50 kg/110.23 lb)
(8) Grounding screw and sign

Main processing unit

The F5000-A5 firewall supports only one MPU, which must be installed in slot 0.
Figure 59 MPU panel view
(1) 10/100/1000BASE-T management Ethernet port (MANAGEMENT)
(2) 10/100/1000BASE-T HA port (HA)
(4) AUX port (AUX)
(6) CF card slot
(8) USB port 1
(10) Ejector lever
(2) Rear chassis cover handle
(4) (Optional) Air filter
(6) Chassis handle
(9) Air vents
(3) Console port (Console)
(5) CF ejector button (CF CARD)
(7) Reset button (RESET)
(9) USB port 0
(11) Captive screw
