Table 36 Tie-binding parameters
Cable bundle diameter (mm)
10
10 to 30
30
Do not tie cables or bundles in a knot.
•
The metal parts of the crimped cold-pressed terminal blocks (such as air switch) cannot protrude
•
beyond the blocks.

Cabling examples

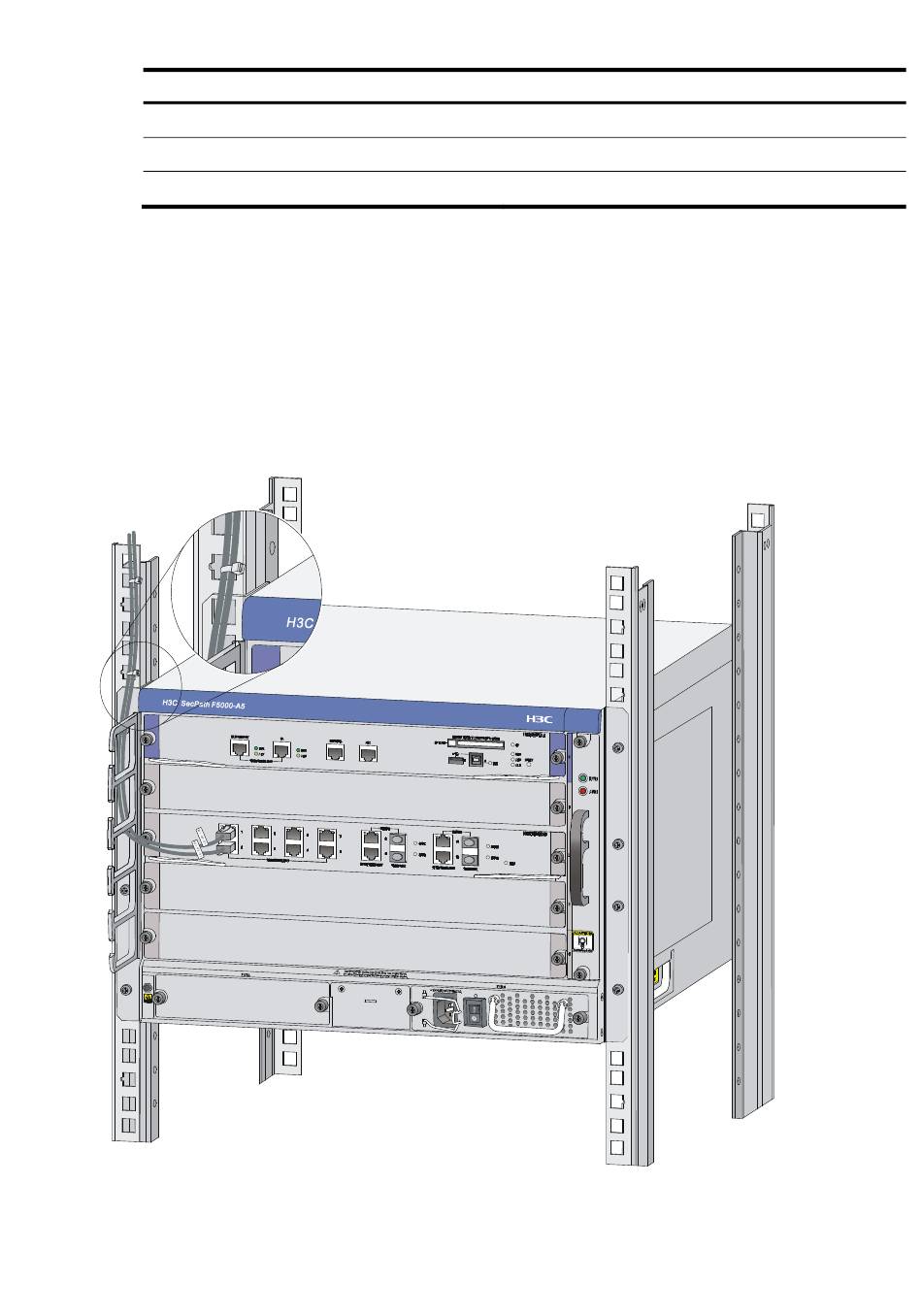

Figure 82 Network cabling example
Space between bundles (mm)
80 to 150
150 to 200
200 to 300
