Appendix A Chassis views and technical
specifications
Chassis views
CAUTION:
When moving the chassis, do not use the rear chassis cover handle (callout 2) in
is not designed to support the chassis weight.

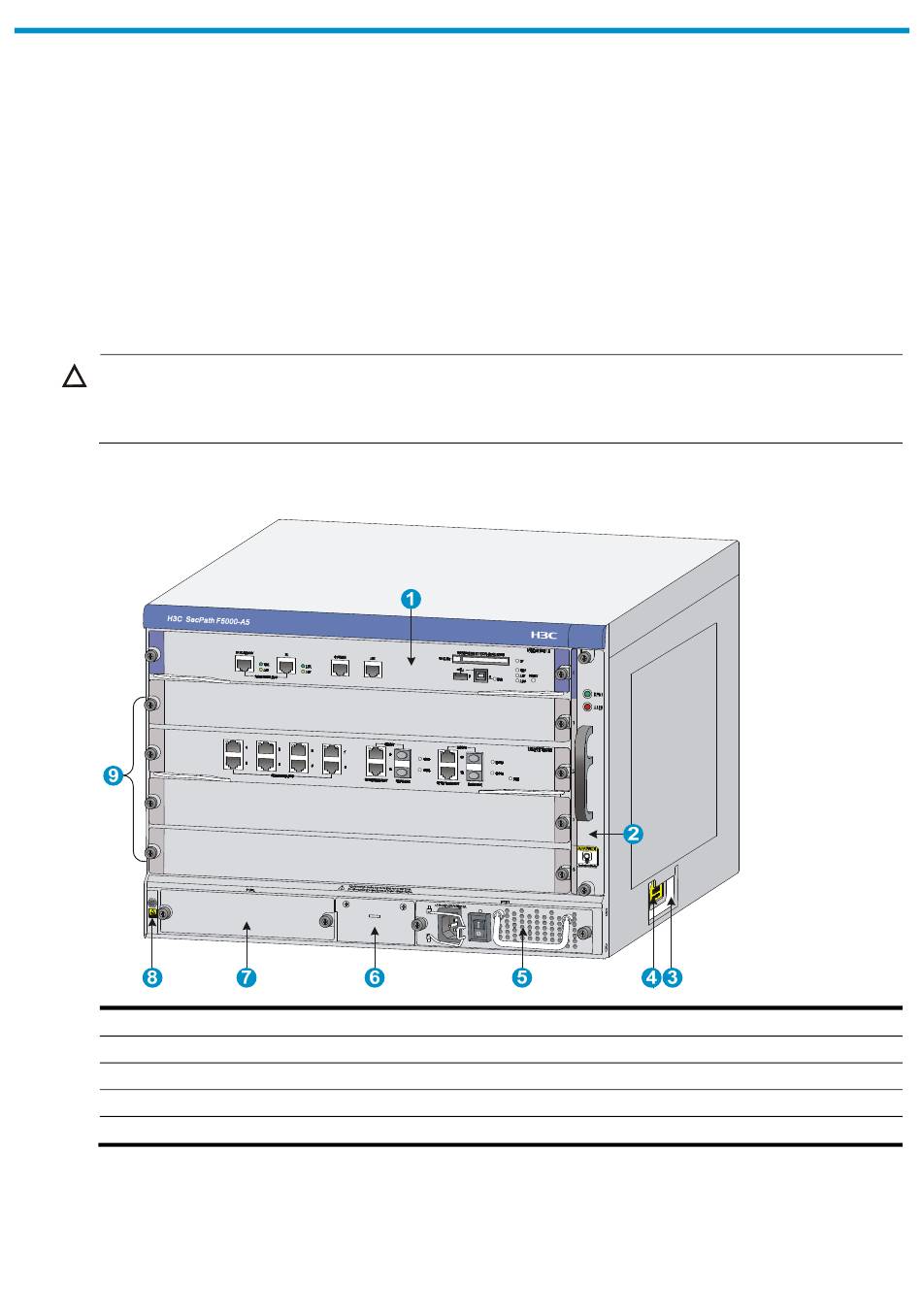

Figure 57 Front view
(1) MPU slot (Slot 0)
(3) Chassis handle
(5) Power module slot 1 (PWR1)
(7) Power module slot 2 (PWR2)
(9) Interface module slots (Slot 1 through Slot 4)
In
Figure
57, a DC power module is installed in the PWR1 slot.
(2) Fan tray slot
(4) Weight support warning label (Max. weight of 50 kg/110.23 lb)
(6) PoE power module filler panel (reserved for future PoE support)
(8) Grounding screw and sign
