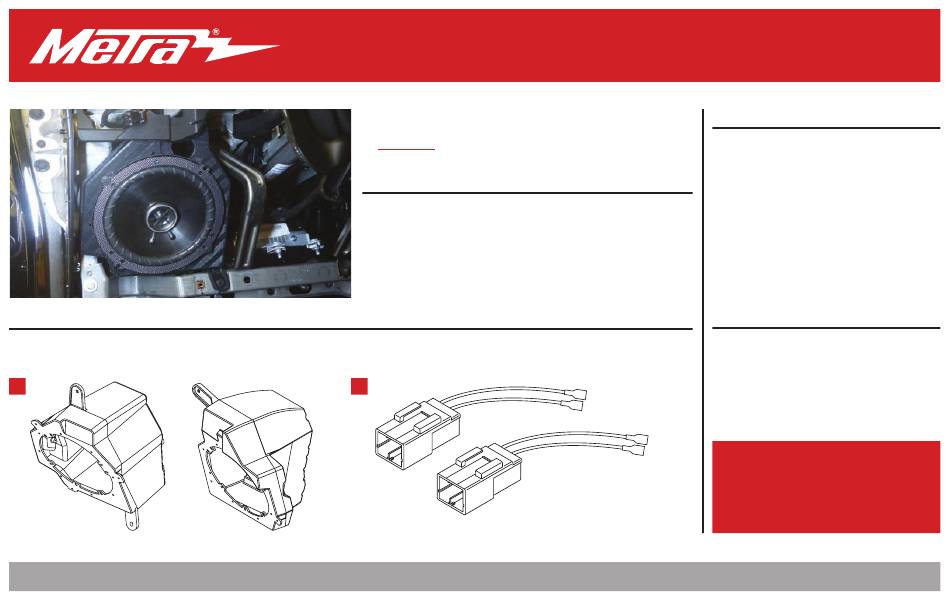

KIT COMPONENTS

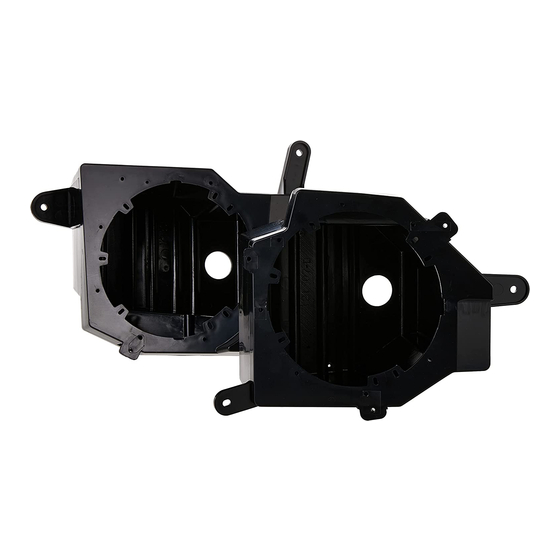

• A) Speaker pods (L&R) • B) Speaker harness adapter (2)
A
Metra. The World's Best Kits.
®
Jeep Wrangler (JL) 2018, Wrangler
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• Driver and passenger specific dash replacement sealed speaker pods
to install 6" to 6.75" speaker
• Mounting positions for Chrysler three hole mount used by specific
speaker manufacturers such as Alpine
• Sealed enclosure with a hole for the factory wiring grommet
• Includes necessary speaker harness adapter
B
MetraOnline.com
2019-Up
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
JP-1014
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly .............................................. 2-6
Kit Assembly ..........................................................7
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 8mm, 10mm, socket wrench
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 12/12/19 INSTJP-1014
