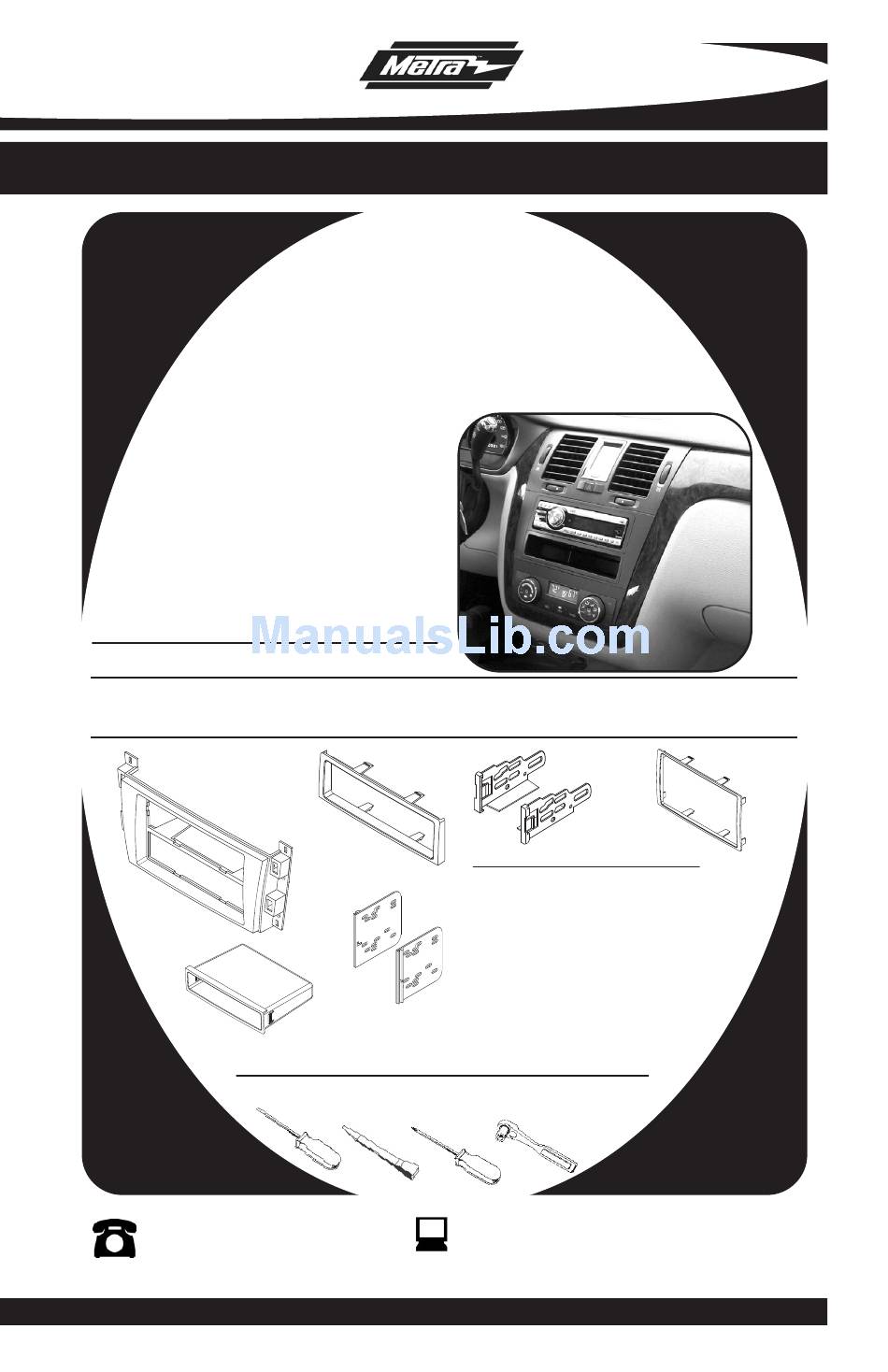

INSTALLATION INSTRUCTIONS FOR PART 99-2008
Cadillac DTS 2006-2010
Cadillac SRX 2007-2009
99-2008
KIT FEATURES
• DIN Radio Provisiion with Pocket
• ISO Mount Radio Provisiion with Pocket
• Double DIN Radio Provisiion
• Stacked ISO Mount Units Provisiion
KIT COMPONENTS
A) Radio Housing • B) ISO Trim Plate • C) ISO Brackets • D) Double DIN Trim Plate
• E) Double DIN Brackets • F) Pocket
A
F
1-800-221-0932
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
APPLICATIONS
B
E
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
C
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
• GMOS-LAN-01 - GM LAN Interface
2006-up
• GMOS-LAN-02 - GM LAN Amplified-
Interface 2006-up
• GMOS-LAN-05 - GM Digital LAN Amp
Interface With Onstar 2007-up
• Antenna Adapter:
40-CR10 - Chrysler/GM Antenna
Adapter 2002-up
www.metraonline.com
D
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-2008
Summary of Contents for Metra Electronics 99-2008
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-2008 Cadillac DTS 2006-2010 Cadillac SRX 2007-2009 99-2008 KIT FEATURES • DIN Radio Provisiion with Pocket • ISO Mount Radio Provisiion with Pocket • Double DIN Radio Provisiion • Stacked ISO Mount Units Provisiion KIT COMPONENTS A) Radio Housing •...
-
Page 2: Table Of Contents
99-2008 TABLE OF CONTENTS Dash Disassembly Chevrolet - Cadillac DTS 2006-2010....... 1 - Cadillac SRX 2007 -2009 . -
Page 3: Cadillac Dts 2006-2010
(Figure B) Remove (4) 9/32” screws securing the climate controls. Unplug and remove the climate controls. (Figure C) Remove (4) 9/32” screws securing the radio. Unplug and remove the radio. (Figure D) Continue to kit assembly. 99-2008 DASH DISASSEMBLY... -
Page 4: Cadillac Srx 2007 -2009
(Figure C) Remove (4) 9/32” screws securing the climate controls. Unplug and remove the climate controls. (Figure D) Remove (4) 9/32” screws securing the radio. Unplug and remove the radio. Figure E) Continue to kit assembly. 99-2008 DASH DISASSEMBLY... -
Page 5: Din Radio Provision With Pocket
Housing and secure by bending the metal locking tabs outward. (Figure A) Slide the aftermarket radio into the cage until it snaps into place. (Figure B) Snap the pocket into the housing. (Figure C) Continue to final assembly. 99-2008 KIT ASSEMBLY... -
Page 6: Iso Mount Radio Provision With Pocket
Slide the radio into the radio housing until it snaps into place. (Figure B) Snap the trim plate onto the front of the radio housing. (Figure B) Snap the pocket into the housing. (Figure C) Continue to final assembly. 99-2008 KIT ASSEMBLY... -
Page 7: Double Din Radio Provision
ISO mount units. (Figure C) Snap the Double DIN Trim plate onto the front of the Radio Housing. (Figure C) Continue to final assembly. 99-2008 KIT ASSEMBLY... -
Page 8: Final Assembly
*NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. REV. 04/21/10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST99-2008 99-2008 FINAL ASSEMBLY (A) Strip wire ends back 1/2"...
