Clean Water Made Easy
www.cleanwaterstore.com

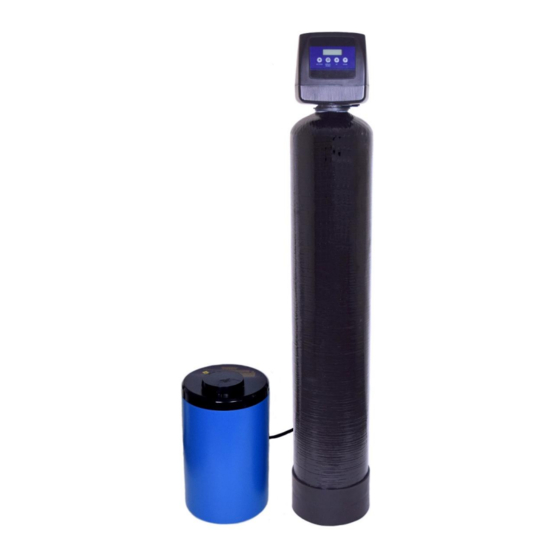

7800 Greensand Filter Installation & Start-Up Guide
Thank you for purchasing a Clean Water System! With proper
installation and a little routine maintenance your system will
be providing iron free water for many years.
GREENSAND MEDIA CONTAINS DUST. USE PAPER MASK
AND VENTILATE TO AVOID BREATHING DUST.
Questions?
Call us toll-free: 1-888-600-5426 or 1-831-462-8500
Email us:
support@cleanwaterstore.com
See more information on our website:
www.cleanwaterstore.com/resources
Advertisement
Table of Contents
Related Manuals for Clean Water Systems Greensand 7800
Summary of Contents for Clean Water Systems Greensand 7800
- Page 1 Clean Water Made Easy www.cleanwaterstore.com 7800 Greensand Filter Installation & Start-Up Guide Thank you for purchasing a Clean Water System! With proper installation and a little routine maintenance your system will be providing iron free water for many years. GREENSAND MEDIA CONTAINS DUST. USE PAPER MASK AND VENTILATE TO AVOID BREATHING DUST.
-
Page 2: Table Of Contents
Clean Water Made Easy www.cleanwaterstore.com Table of Contents Packing List ..............................3 Neutralizer 1.0 cubic foot size ........................3 Greensand Filter 1.5 cubic foot size ......................3 Greensand Filter 2.0 cubic foot size ......................3 Pre-Installation .............................. 4 Best Practices for Piping & Drain Installation ....................4 How Your Greensand Filter Works ....................... -
Page 3: Packing List
7800 Greensand Filter Installation & Startup Guide Packing List Greensand Filter 0.75 cubic foot size 7800 Backwash Control Valve w/ Bypass Assembly and Pipe connector kit (1”or ¾”) 8” x 44” filter tank with distributor tube Blue media funnel for adding the Greensand media 8 lbs. -
Page 4: Pre-Installation
7800 Greensand Filter Installation & Startup Guide Greensand Filter 3.0 cubic foot size 7800 Backwash Control Valve w/ Bypass Assembly and Pipe connector kit (1”or ¾”) 14” x 65” filter tank with distributor tube Blue media funnel for adding the Greensand media 40 lbs. -
Page 5: How Your Greensand Filter Works
7800 Greensand Filter Installation & Startup Guide 4. If you will be using copper piping, do not sweat the copper pipe directly on to the 7800 control valve. Avoid heating up the 7800 control valve plastic with the torch. 5. You do not need unions to install your 7800 control valve. If you need to remove it, the 7800 has quick-release couplings that make it easy to put the Greensand filter on by-pass and remove the filter system from the piping. - Page 6 7800 Greensand Filter Installation & Startup Guide Fig 2 - Typical Greensand Filter CWS Plus piping installation with ball valve and hose bib after the filter Page 6 www.cleanwaterstore.com Rev 120214...
- Page 7 7800 Greensand Filter Installation & Startup Guide Fig 3: 7800 from the rear showing the inlet (left) and outlet (right) end- connector fittings 3/4” or 1” NPT in Noryl plastic. Brass end-connectors are also available for connecting to copper tubing. Fig 4 7800 Bypass and Service Positions Page 7 www.cleanwaterstore.com...
-
Page 8: Assembly And Installation Instructions
7800 Greensand Filter Installation & Startup Guide Assembly and Installation Instructions 1. By hand, unscrew the entire 7800 control valve from top of tank if it was shipped screwed on. Place distributor tube in tank if not already inside. If not already done, make sure the blue cap is on top of distributor tube, or wrap the top of distributor tube with electrical or duct tape. -
Page 9: Fig 3 7800 By-Pass And Pipe Connectors
7800 Greensand Filter Installation & Startup Guide 7. Add a small amount of silicone grease or vegetable cooking oil to the tank threads and screw on 7800 control valve carefully. Do not use pipe-joint compound, Teflon tape, or Vaseline or other petroleum greases to lubricate tank threads. - Page 10 7800 Greensand Filter Installation & Startup Guide 14. Connect some flexible tubing from the drain connection on the 7800 control valve to a suitable drain such as a septic tank or drain to a sewer. It is OK to run the drain line up and over the 7800 Greensand Filter up to 4 feet above the top of the tank.
-
Page 11: Troubleshooting The 7800 Greensand Filter
7800 Greensand Filter Installation & Startup Guide Fig 7 7800 Pot Perm Tank Set-Up & Installation 16. First remove the rubber band that comes on the float assembly from the manufacturer. Add enough clean water to the pot perm solution tank to bring water level about 1” above the felt pad. - Page 12 7800 Greensand Filter Installation & Startup Guide 24. Set Day - Use the up and down arrows to select the proper value. Once the proper value is set, press the Settings button (Enter) to proceed to the next setting 25. Set Regen Days - Set the number of days between backwashes, typically for every 3 days for moderate to heavy iron.
- Page 13 7800 Greensand Filter Installation & Startup Guide the backwash. However it is normal for some small amount of fines to come out during the backwash, although you do not want to see a large amount of media coming out, which would mean you have very high water pressure, or the drain flow control for the 7800 is missing.
- Page 14 7800 Greensand Filter Installation & Startup Guide Maintaining Your Greensand 2510 Filter System Adding Potassium Permanganate: Add one 5-lb jug of potassium permanganate every 3 - 4 months. Check the potassium permanganate solution tank and when you see the mound of potassium permanganate disappear after a few months, just add another 5-lb jug.
- Page 15 7800 Greensand Filter Installation & Startup Guide Greensand media Replace Greensand media with new exhausted Greensand. Strong sulfur odor before and after High levels of In some cases, the greensand filter may Greensand filter hydrogen sulfide gas in need a chlorine feed (or ozone, oxygen or well water other oxidizer) prior to the filter.
- Page 16 7800 Greensand Filter Installation & Startup Guide cases it may need to be replaced or cleaned, if there is suction at the control valve, but no permanganate is being drawn in. 4. If there is NO suction at the control valve port where you removed the permanganate tubing, then the injector should be cleaned.
- Page 17 7800 Greensand Filter Installation & Startup Guide Permanganate tank not filling with permanganate solution Potassium permanganate is a powder that is poured on top of the “grid pad” in the pot perm tank. During the brine fill cycle, water is added to the pot perm tank to make up the pot perm solution required for the next regeneration.
