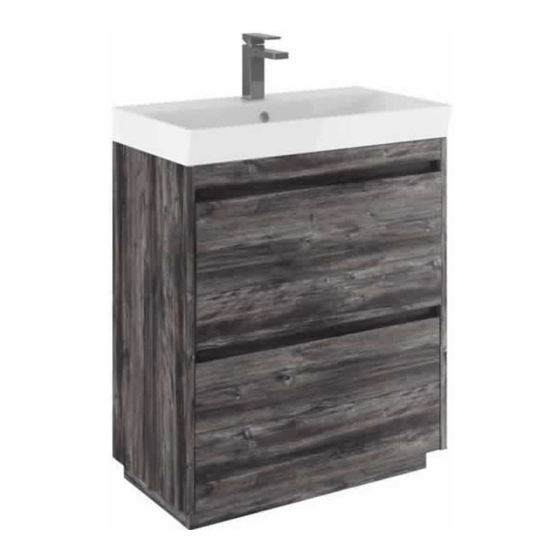

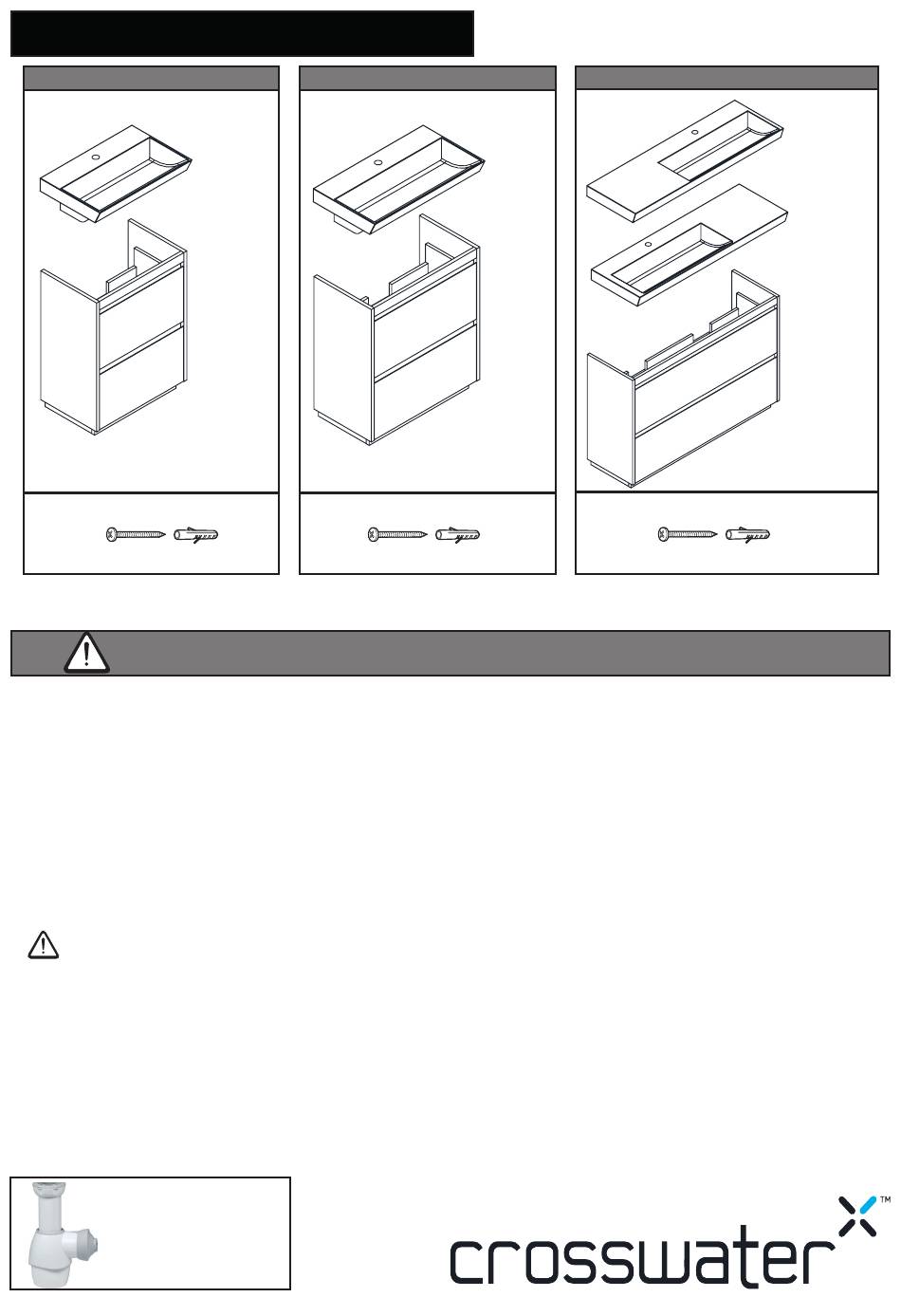

600 Two Drawer Basin Unit & Basin
Tools & equipment needed: Drill, 8mm Suitable drill bit, Phillips screwdriver, Spirit level, Ruler/tape measure,
Pencil, Silicone sealant (clear).

IMPORTANT - Advice and safety - Please read before installation

Please read these instructions carefully before starting
installation and keep in a safe place for future reference.
Check the contents of the pack carefully before installation.
Crosswater will not be held responsible for any de-fit / re-fit costs
where faulty product has been fitted.
If any fault is found with materials or workmanship, it must be
reported immediately to the manufacturer. Remedial action will
be taken, based on information received, on condition that:
1. Full details are supplied to the manufacturer; 2. The product
has not been modified or tampered with; 3. The manufacturer is
informed of any damage/shortages prior to installation.
We do not accept responsibility for any problems that may occur
through incorrect installation.
Advice & Safety
This product should only be installed by a suitably qualified
Plumber/installer. Should the installation be completed by a
non-qualified person any product guarantee maybe considered
invalid. For a claim made under our warranty written certification
of your installers qualifications can be required.
It is advised that all doors and drawers are removed prior to
fitting to avoid unnecessary damage occurring.
Ensure the room is well heated and ventilated.
It is recommended that walls are fully tiled before furniture and
accessory installation. This ensures that the product is installed
flat to the tile face and allows product to be easily removed if
required in the future.
To ensure full working use of
the drawers we recommend
the use of Bauhaus basin
furniture trap BTR0510W
Zion Floor Standing Furniture
700 Two Drawer Basin Unit & Basin
ZI0611SCW
13.8kgs
ZI600D
40kgs
x4
ZION FLOOR STANDING 60-70-120
1200 Two Drawer Basin Unit & Basin
ZI0711CW
15.8kgs
ZI7000D
45kgs
x4
These instructions have been prepared for your guidance, you
must exercise due care always.
Please note that some units are heavy. Always take care when
lifting, and follow health and safety guidelines. It is recommended
that 2 people carry out the installation of larger basin/vanity units.
Warning! ! Please check for any hidden pipes or electrical cables
before drilling holes in the floor or walls.
When using power tools always follow the manufacturer's user
instructions.
Do not over tighten tap or waste fittings, doing so may result in
damaging the basin.
The vanity units CAN ONLY BE installed using the fitting brackets
supplied. Before installing a wooden bathroom product into a new
property, extension or recently plastered room we strongly advise
the building/room is completely dry, well ventilated and adequately
heated prior to installation.
Care & Cleaning.
NEVER use products containing bleach, cleaners of a gritty or
abrasive nature or so called "glass and mirror" cleaning products.
Use a well wrung chamois leather or microfiber cloth for furniture
carcasses.
Ceramic fine fire clay wash basins should only be cleaned with a
mild detergent or warm soapy water; in hard water areas a good
quality limescale remover can be applied.
If any maintenance is required, then it must be carried out by a
qualified Plumber.
ZI1211SCW_LH
ZI1211SCW_RH
22.45kgs
ZI1200D
60kgs
x4
1
