Crosswater GLIDE II 200 Installation Instructions Manual

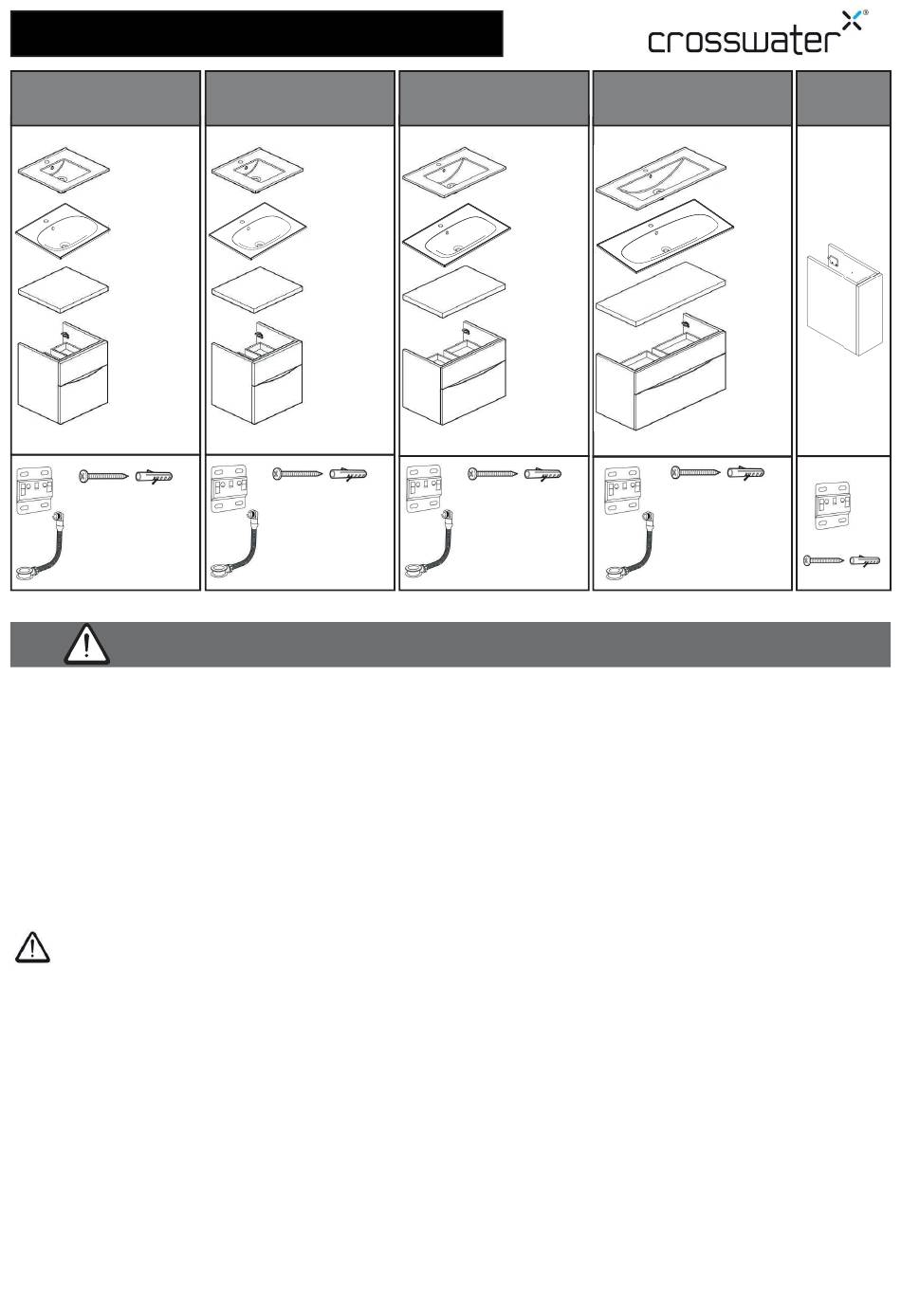

GLIDE II BATHROOM FURNITURE RANGE
500 Two Drawer Basin Unit,
Ceramic / Cast Marble /
Glass Basin / Worktop
DE0002SCW+ 11kg
GL0511SIW+
GL0511MB 7kg
FB0511SRW
7.5Kgs
GL5000T 11kg
GL5000D+ 25.1kg
x8
x2
850N (86kg) Load capacity
per bracket on a solid wall.
To DIN 68840 06/2004
Overfl ow fi tting supplied with
Cast Marble and Glass Ba
sins only
Tools & equipment needed: Drill, 8mm Suitable drill bit, Phillips screwdriver, Spirit level, Ruler/tape measure, Pencil, Solvent free silicone sealant (clear).
IMPORTANT - Advice and safety - Please read before installation
Please read these instructions carefully before starting installation
and keep in a safe place for future reference. ENSURE the room is well
heated and ventilated.
Check the contents of the pack carefully before installation. Crosswater will
not be heid responsible for any de-fi t / re-fi t costs where faulty product has
been fi tted.
If any fault is found with materials or workmanship, it must be reported
immediately to the manufacturer. Remedial action will be taken, based on
information received, on condition that: 1. Full details are supplied to the
manufacturer. 2. The product has not been modifi ed or tampered with; 3. The
manufacturer is informed of any damage/shortages prior to installation. 4. The
product has not been installed, or attempts have been made to install.
We do not accept responsibility for any problems that may occur through
incorrect installation.
Advice & Safety
This product should only be installed by a suitably qualified Plumber/installer.
Should the installation be completed by a non-qualified person any product
guarantee maybe considered invalid. For a claim made under our warranty
written certification of your installers qualifications can be required.
It is advised that all doors and drawers are removed prior to fitting to avoid
unnecessary damage occurring.
It is recommended that the furniture and accessories are installed after tiling,
ensuring that the product is installed fl at to the tile face and allows product to
be easily removed if required in the future.
This document has been prepared for your guidance, you must exercise due
care at all times.
Please note that some units are heavy. Always take care when lifting, and
follow health and safety guidelines. It is recommended that 2 people carry out
the installation of larger basin/vanity units over 30Kgs gross weight.
Do not expose glass washbasins to wide and rapid changes in temperature.
Do not expose glass washbasins to water with a temperature over 70°C.
Glide II Furniture 04/2022
600 Two Drawer Basin Unit,
Ceramic / Cast Marble /
Glass Basin / Worktop
DE0005SCW+
12.5Kgs
GL0611SMB
GL0611SIW 8.3Kgs
FB0611SRW
8.5Kgs
GL6100TMC
16Kgs
GGL6000D+
27.8Kgs
x8
x2
850N (86kg) Load capacity
per bracket on a solid wall.
To DIN 68840 06/2004
Overfl ow fi tting supplied with
Cast Marble and Glass Ba
sins only
700 Two Drawer Basin Unit,
Ceramic / Cast Marble /
Glass Basin / Worktop
DE0003SCW+
14.2kg
GL0711SIW+
GL0711SMB 10kg
FB0711SRW
10.5Kgs
GL7000T
16.2kg
GL7000D+
28.8kg
x8
x2
850N (86kg) Load capacity
per bracket on a solid wall.
To DIN 68840 06/2004
Overfl ow fi tting supplied with
Cast Marble and Glass Ba
sins only
Warning! ! Please check for any hidden pipes or electrical cables before drilling
holes in the floor or walls.
When using power tools always follow the manufacturer's user instructions.
This installation guide details fi tting to a solid wall. If your bathroom has studded/
plasterboard walls, please use appropriate plasterboard fi xings. Please ensure
the wall can take weight of units detailed above. Before installing a wooden
bathroom unit into a new property, extension or recently plastered room we
strongly advise the building/room is completely dry, well ventilated and
adequately heated.
Important pre-installation notes
To ensure full working use of the drawers we recommend the use of basin
furniture trap BTR0410W.
Care & Cleaning
Ceramic, glass and cast mineral marble basin products should be cleaned
regularly with warm soapy water, then rinsed with clean water and, if desired,
dried and polished with a soft cloth. Lime scale deposits can be removed using
a 50:50 solution of warm water and lime scale remover and soft clean cloth. We
recommend regular cleaning with Cream Polish SD150RW, specially formulated
to clean and help protect the surface of glass and cast mineral marble basins.
Please also take care not to damage the lacquered surface on the underside
of the glass washbasin that gives the washbasin its colour. Damage to the
underside of the washbasin may be visible through the glass. Take care how
you handle the washbasin prior to installation and place it on a soft surface to
avoid damage.
Regularly clean worktop, carcass and drawer using a well wrung chamois
leather or micro fi bre cloth.
Do not use abrasive cleaners or bleach in this will permanently damage the
lacquered surfaces.
If any maintenance is required then it must be carried out by a qualifi ed Plumber.
The manufacturer reserves the right to make technical modifi cations without
prior notice.
1000 Two Drawer Basin Unit,
Ceramic / Cast Marble /
Glass Basin / Worktop
DE0004SCW+
19kg
GL1011SIW+
GL1011SMB
14.2kg
FB1011SRW
13Kgs
GL1000T
23kg
GL1000D+
36.6kg
x8
x2
850N (86kg) Load capacity
per bracket on a solid wall.
To DIN 68840 06/2004
Overfl ow fi tting supplied with
Cast Marble and Glass Ba
sins only
200
Door Basin Unit
GL2000F 12Kg
x2
x8
