About Generac PWRcell Battery

The Generac PWRcell Battery is the storage component
of the Generac PWRcell system. The Generac PWRcell
Battery can be used for grid-connected solar applications
such as self-supply, rate arbitrage and clean backup
power. The Generac PWRcell Battery is designed to
work seamlessly with Generac PV Link Optimizers and
the Generac PWRcell Inverter to form the Generac
PWRcell system for grid-tie solar-plus-storage.
All Generac PWRcell products use the REbus™ 380VDC
nanogrid to connect energy sources, storage and loads.
.
A Solar Panels
B Generac PV Link Optimizers
C Generac PWRcell Battery
D REbus
Installation Manual for Generac PWRcell Battery
A
C
D
B

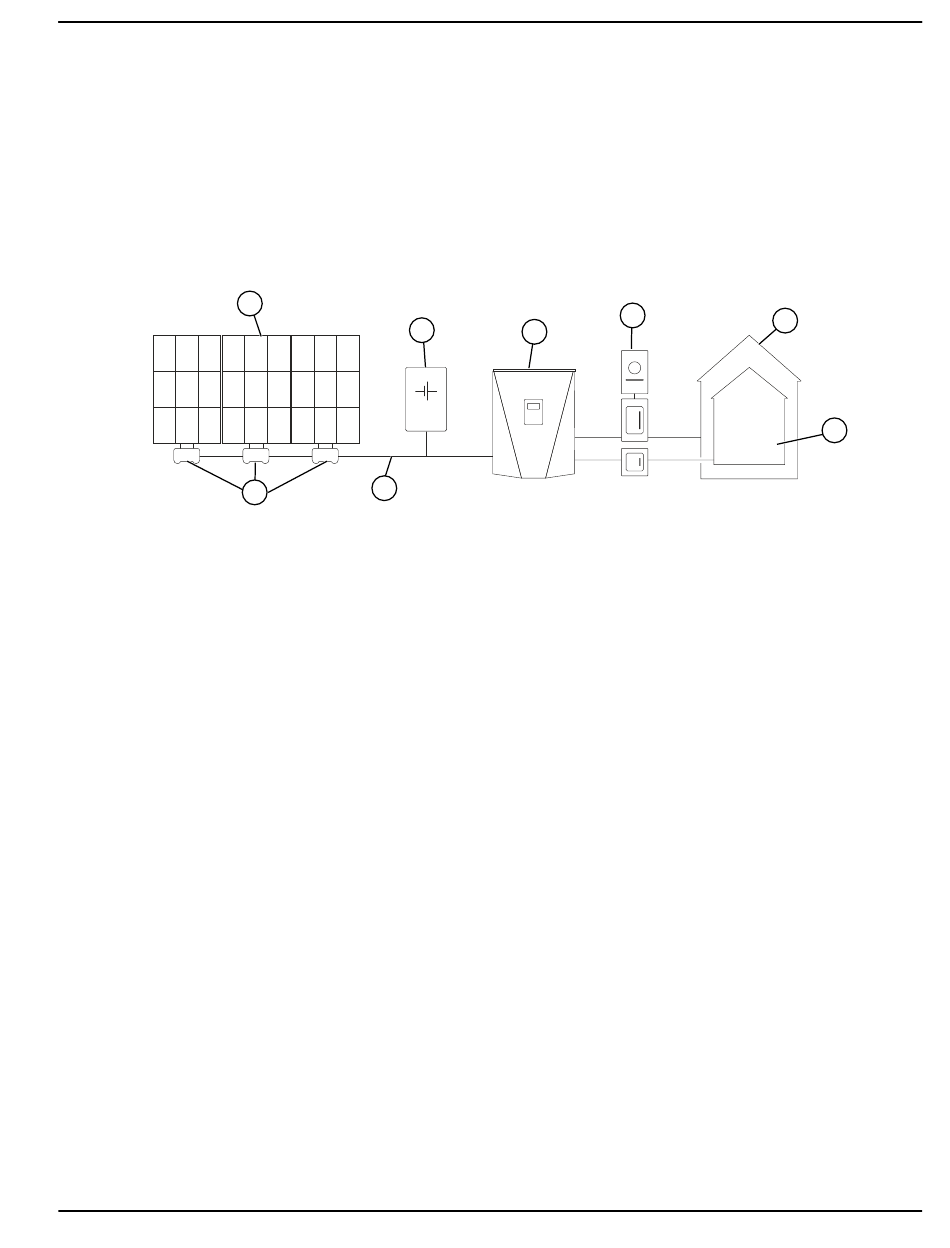

Figure 2-3. Generac PWRcell System Example
The REbus nanogrid automates the flow of power to
enable plug-and-play setup and operation of Generac
PWRcell equipment.
In Figure 2-3, a REbus compatible Generac PWRcell
Inverter (E) is directly connected to Generac PV Link
Optimizers (B) and the Generac PWRcell Battery (C) on
the DC (REbus) line (D). To the right of the inverter are
AC lines: 240VAC or 208VAC for grid and home loads,
and critical load support up to 50A.
F
E
.
E Generac PWRcell Inverter
F Grid
G Loads
H Protected Loads
General Information
G
H
