DESCRIPTION
Part Number: 9012781

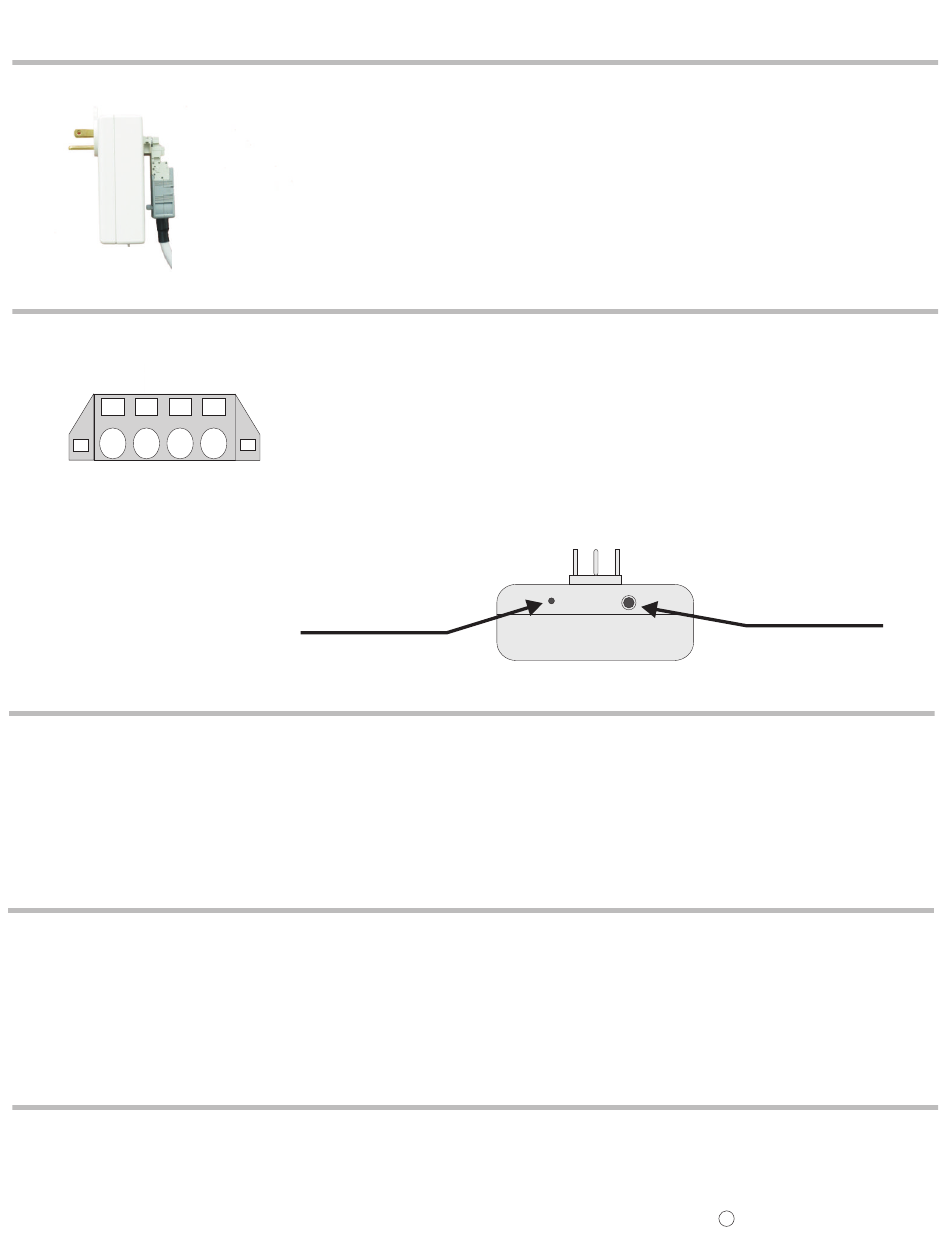

CONNECTION DIAGRAM
Motor Connector
D
G
D
I
R
I
R
R
O
U
2
N
1
D
MANUAL OPERATION
Upon Power-Up, the MultiLink Plug-In is unprogrammed and will only respond to the Sequence Button or programming commands from a transmitter
To operate the MultiLink Plug-in manuually, pressing the Sequence button will cycle through the directions as follows:
DEPRESS 1: UP DIRECTION
DEPRESS 2: STOP DIRECTION
DEPRESS 3: DOWN DIRECTION
DEPRESS 4: STOP DIRECTION
PROGRAMMING GUIDELINES
The following guidelines should be applied when installing a Multi-Link Plug-In control:
- The antenna MUST protrude outside of the enclosure and should not be close to high voltage wires.
- When installing multiple controls, each control must be separated by 12 inches minimum.
- When installing multiple controls, it is recommended having only 1 Multi-Link powered at a time during programming.
- The Multi-Link Plug-in can memorize up to 8 Telis Transmitter (or similar) channels.
SOMFY CANADA
6315 Shawson Drive, Unit #1
Mississauga, Ontario L5T1J2
SOMFY SYSTEMS, INC. reserves the right to change,
update or improve this document without prior notice.

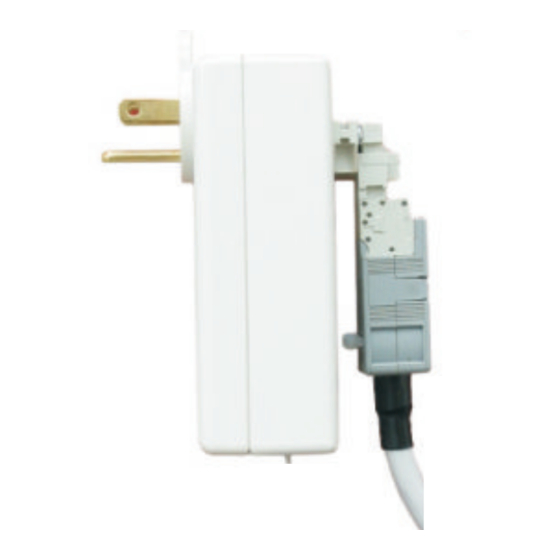

MULTI-LINK PLUG-IN
The Multi-Link Plug-In control features both the ease of plug-in installation and the convenience of
radio remote control. This single motor control is RTS compatible and plugs into a standard AC outlet.
A Somfy motor plugs directly into the control, eliminating the need for additional wiring.
1. Insert a screwdriver into the square holes to reveal the opening in the circular hole. Insert
the appropriate motor wire and remove the screwdriver.
2. When all the motor wires have been connected, snap on the bottom of the included strain
relief. Anchor the wires using the wire tie. Attach the top of the strain relief.
N
E
U
T
R
A
L
Programming Button
SOMFY SYSTEMS, INC.
47 Commerce Drive
Cranbury, NJ 08512
End View of Plug-In Module
Ref. No. 2500995
Sequence Button
SOMFY MEXICO S.A. De C.V.
Calle 3 No.47, Loc.E-5
Fracc Ind. Alce Blanco
Nau.,Edo. de Mex C.P . 53370,Mex
C
SOMFY SYSTEMS, INC. 4/07
Advertisement
Table of Contents
Related Manuals for SOMFY MULTI-LINK PLUG-IN
Summary of Contents for SOMFY MULTI-LINK PLUG-IN
-
Page 1: Manual Operation
MULTI-LINK PLUG-IN DESCRIPTION The Multi-Link Plug-In control features both the ease of plug-in installation and the convenience of radio remote control. This single motor control is RTS compatible and plugs into a standard AC outlet. A Somfy motor plugs directly into the control, eliminating the need for additional wiring. - Page 2 PROGRAMMING A CHANNEL INTO MEMORY Upon power-up, the Multi-Link Plug-In is not programmed and will respond only to pressing the sequence button. A. Initial Transmitter 1. Using a paper clip or similar instrument, press and hold the Programming/Memory Clear button on the MultiLink Plug-in for 2 seconds until the motor jogs. When the motor jogs, release the Programming button.
- Page 3 INTERMEDIATE POSITION A. Setting the Intermediate Position 1. Enter programming mode by pressing the UP and DOWN buttons of a Telis Transmitter simultaneously. The window treatment will respond by jogging UP then DOWN. 2. Press and release the UP button then press and release the STOP button. The shade will respond by lowering to its bottom limit. 3.
- Page 4 MULTILINK PLUG-IN Quick Reference Guide A. Motor direction MUST be verified before any transmitters or functions are programmed. B. To enter programming mode, first ensure the window treatment is not at the upper limit. Press the UP and DOWN buttons on a Telis Transmitter or similar device. The motor will jog. C.
