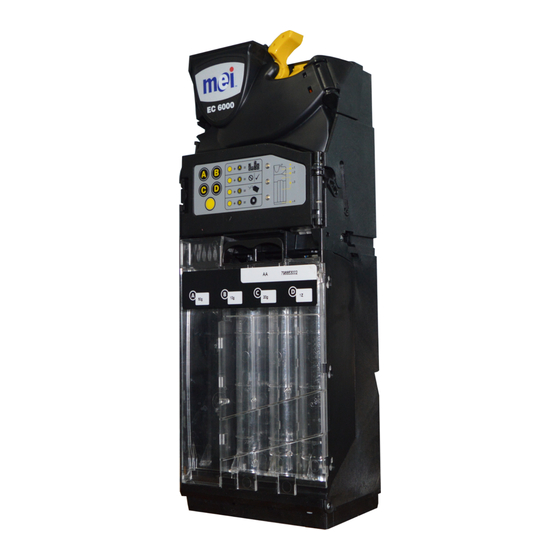

MEI EC6000 Quick Reference Card

QUICK REFERENCE CARD
Understanding the User Interface Keypad
1
3

1. General Keypad Button Operation

General Operation of Keypad Buttons
A
Dispense coin from tube A
Dispense coin from tube C
C
Mode Button
– Access Service Mode

2. LED Light Codes

The 3 LEDs fitted on the changegiver provide up to the minute status
information. Please refer to the table below for more details.
On Changegiver OK
Cycles Normal power up sequence.
X 5 Changegiver OK
Coin accepted / rejected
Blinks Off
(Refer to Green LED Codes)
Changegiver in Menu mode
Flashing
(Refer to Green LED Codes)
On Changegiver inhibited by VMC
Changegiver requires attention
Flashing
(Refer to Amber LED Codes)
No Power to Changegiver.
Off Check power looms are connected & ensure
power is switched ON.
Changegiver Faulty
Alternating
(Remove from vending machine)
Green Led Codes
The Mode Button has limited functions on a EC6000
Mode Button
if the Mode Button is pressed you will see:
Slow Flash
Fast Flash
Part Number 79394xxxx
2
B
Dispense coin from tube B
Dispense coin from tube D
D
Changegiver is in Service Mode.
Mode + A, B, C or D buttons have
been pressed.
EC6000 2007- Rev G1
