- Page 1 Channel Power Sensor Model 4042 Operation Manual ©Copyright 2019 by Bird Technologies, Inc. Instruction Book Part Number 920-4042 Rev. C...
-
Page 2: Safety Precautions
Safety Precautions The following are general safety precautions that are not necessarily related to any specific part or procedure, and do not necessarily appear elsewhere in this publication. These precautions must be thoroughly understood and apply to all phases of operation and maintenance. WARNING Keep Away From Live Circuits Operating Personnel must at all times observe general safety precautions. -
Page 3: Safety Symbols
Safety Precautions Safety Symbols WARNING Warning notes call attention to a procedure, which if not correctly performed, could result in personal injury. CAUTION Caution notes call attention to a procedure, which if not correctly performed, could result in damage to the instrument. Note: Calls attention to supplemental information. -
Page 4: Safety Statements
Channel Power Sensor 4042 Safety Statements USAGE ANY USE OF THIS INSTRUMENT IN A MANNER NOT SPECIFIED BY THE MANUFACTURER MAY IMPAIR THE INSTRUMENT’S SAFETY PROTECTION. EL USO DE ESTE INSTRUMENTO DE MANERA NO ESPECIFICADA POR EL FABRICANTE, PUEDE ANULAR LA PROTECCIÓN DE SEGURIDAD DEL INSTRUMENTO. - Page 5 Safety Precautions SERVICE SERVICING INSTRUCTIONS ARE FOR USE BY SERVICE - TRAINED PERSONNEL ONLY. TO AVOID DANGEROUS ELECTRIC SHOCK, DO NOT PERFORM ANY SERVICING UNLESS QUALIFIED TO DO SO. SERVICIO LAS INSTRUCCIONES DE SERVICIO SON PARA USO EXCLUSIVO DEL PERSONAL DE SERVICIO CAPACITADO. PARA EVITAR EL PELIGRO DE DESCARGAS ELÉCTRICAS, NO REALICE NINGÚN SERVICIO A MENOS QUE ESTÉ...
-
Page 6: About This Manual
Chapter Layout Introduction — Describes the features of the 4042 Channel Power Sensor. Installation — Describes how to set up and prepare the 4042 Power Sensor for use. Maintenance — This section provides the specifications for the 4042 Power Sensor as well as a model identification table. -
Page 7: Table Of Contents
Table of Contents Safety Precautions ......... i Safety Symbols . -
Page 8: Chapter 1 Introduction

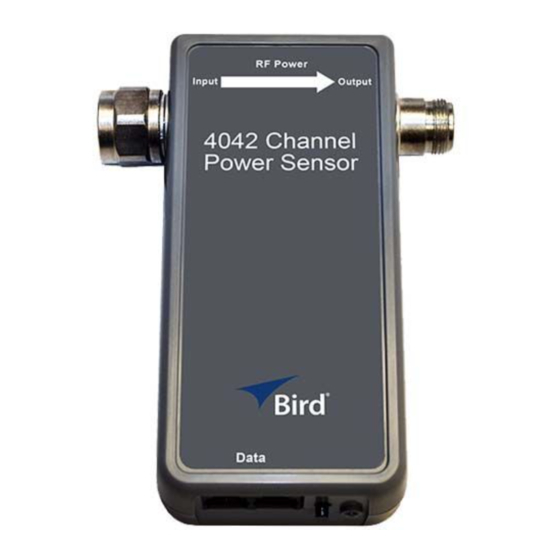

50 ohm RF transmission line with maximum 500 watt forward and reflected power levels in a frequency band with an overall range of 100 to 1000 MHz. The 4042 sensor also provides VSWR readings. Figure 1... -
Page 9: Channel Sensor Operation
Introduction Channel Sensor Operation The 4042 Channel Sensor is a unique sensor that is able to measure the forward power, reflected power and VSWR of a SINGLE CHANNEL in the presence of multiple channels at the output of a frequency combiner (see... -
Page 10: Data Connection
Channel Power Sensor 4042 Data Connection The 4042 Channel Sensor uses an RS-485 serial bus for data transfer to and from a CPM. Each sensor is equipped with two RJ-25 jacks, either jack may be connected to a CPM. The second RJ-25 jack may be used to extend the RS-485 bus to another digital sensor. -
Page 11: Chapter 2 Installation
The Bird 4042 Series Channel Power Sensors are designed to be used for continuous power monitoring in multiple Land Mobile Radio (LMR) systems. When used with the Bird CPM the 4042 can provide real-time RF forward and reflected power and VSWR measurements. - Page 12 CPM (if available), or in the last sensor installed in the digital sensor chain. 6. Connect a data/power cable from the CPM to 4042 power sensor. Note: Each digital sensor must have a unique RS-485 Bus address when connected serially to the CPM.
-
Page 13: Chapter 3 Maintenance
Chapter 3 Maintenance There is no user maintenance for the 4042 power sensor. contact the Bird Service Center in the event the power sensor requires maintenance. Customer Service Any maintenance or service procedure beyond the scope of those in this chapter should be referred to a qualified service center. -
Page 14: Specifications
Channel Power Sensor 4042 Specifications Specification Value In-Line, Directional RF True Average Power Measurement Type by Channel, or Composite Power (by scanning channels) Channel Bandwidth 6.25, 12.5, 25 kHz selectable Frequency Range 100 to 1000 MHz Single Channel or Composite Forward... -
Page 15: Model Identification
Maintenance Model Identification... - Page 16 Channel Power Sensor 4042...
-
Page 17: Limited Warranty
Limited Warranty All products manufactured by Seller are warranted to be free from defects in material and workmanship for a period of one (1) year, unless otherwise specified, from date of shipment and to conform to applicable specifications, drawings, blueprints and/or samples. Seller’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted;...
