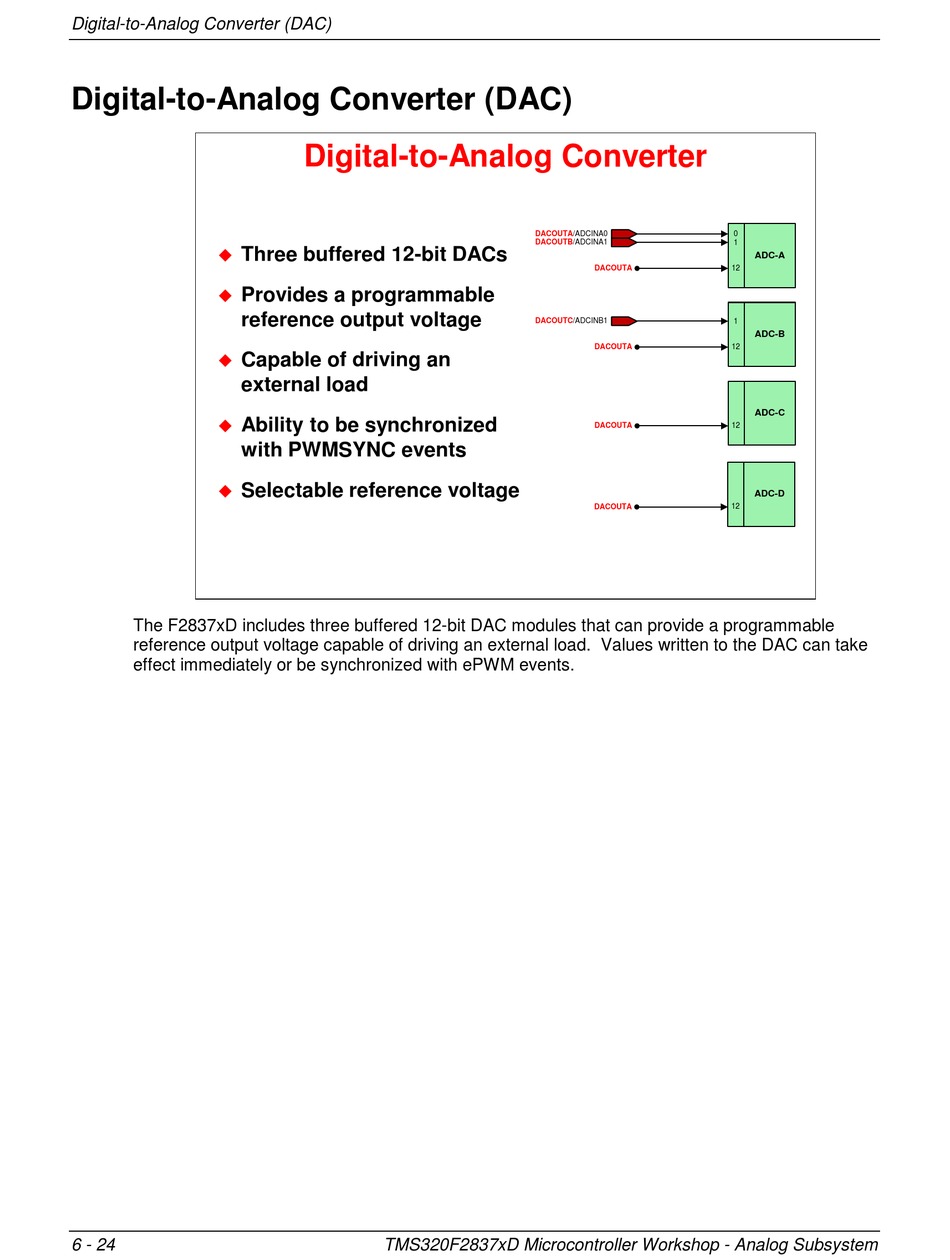

Digital-to-Analog Converter (DAC)

Digital-to-Analog Converter (DAC)
Three buffered 12-bit DACs

Provides a programmable

reference output voltage
Capable of driving an

external load
Ability to be synchronized

with PWMSYNC events
Selectable reference voltage

The F2837xD includes three buffered 12-bit DAC modules that can provide a programmable
reference output voltage capable of driving an external load. Values written to the DAC can take
effect immediately or be synchronized with ePWM events.
6 - 24
Digital-to-Analog Converter
TMS320F2837xD Microcontroller Workshop - Analog Subsystem
DACOUTA/ADCINA0
DACOUTB/ADCINA1
DACOUTA
DACOUTC/ADCINB1
DACOUTA
DACOUTA
DACOUTA
0
1
ADC-A
12
1
ADC-B
12
ADC-C
12
ADC-D
12
