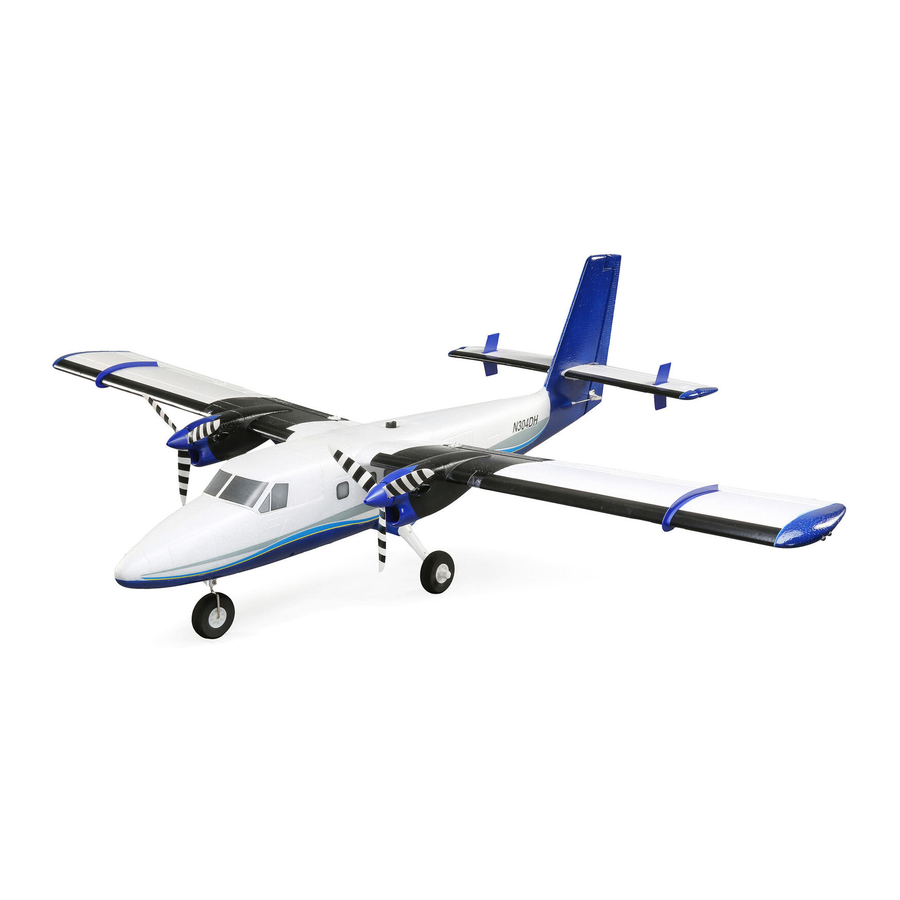

Horizon Hobby E-flite Twin Otter 1.2m Instruction Manual

Horizon Hobby E-flite Twin Otter 1.2m Instruction Manual

Safe select technology, optional flight envelope protection, bind-n-fly basic, plug-n-play

Advertisement

Twin Otter 1.2m
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni
SAFE
Select Technology, Optional Flight Envelope Protection
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-flite Twin Otter 1.2m and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Horizon Hobby E-flite Twin Otter 1.2m

  • Page 1 Twin Otter 1.2m Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni SAFE Select Technology, Optional Flight Envelope Protection ®...
  • Page 2 This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance.
  • Page 3: Table Of Contents

    Box Contents Quick Start Information Transmitter Set up your transmitter using the Setup transmitter setup chart Low Rate Hi Rate 12mm 12mm Dual Rates 10mm 20mm Half Full Flaps q=10mm q=20mm Center of Gravity 45mm (±5mm) from leading edge (CG) of wing at the fuselage Flight Timer 6 minutes, initially...
  • Page 4: Select Technology (Bnf Basic)

    SAFE Select Technology (BNF Basic) ® The BNF Basic version of this airplane includes SAFE Select technology which can SAFE Select can be configured three ways: offer an extra level of protection in flight. Use the following instructions to make the •...
  • Page 5 Model Assembly Continued Wing Installation AR636 Port Assignments 1. Connect the ESC, ailerons, LED lights, and flaps to the receiver in the following locations: BND/PRG = BIND 1–ESC 2–Aileron 3–Elevator 4–Rudder 5–LED Lights 6–Flaps 1 = ESC 2. Install the wing, then secure it by tightening the thumb screw as shown. 2 = Aileron 3 = Elevator 3.
  • Page 6: Receiver Installation (Pnp)

    Receiver Installation (PNP) The Spektrum AR636 receiver is recommended for this airplane. If you choose to install another receiver, ensure that it is at least a 5-channel full range (sport) AR636 Port Assignments receiver. Refer to your receiver manual for correct installation and operation BND/PRG = BIND instructions.
  • Page 7: Battery Installation And Esc Arming

    Battery Installation and ESC Arming Battery Selection A 3S 2200-3200mAh LiPo battery is required. Refer to the Optional Parts List for battery recommendations. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the E-flite Li-Po battery pack to fit in the fuselage.
  • Page 8: Transmitter And Receiver Binding

    Transmitter and Receiver Binding / Switching ON and OFF SAFE Select (BNF Basic) This product requires an approved Spektrum DSM2 /DSMX compatible ™ ® ® Bind Plug Installation transmitter. Visit www.bindnfly.com for a complete list of approved transmitters. The aircraft has an optional SAFE Select feature, which can be switched ON or OFF easily by binding in a specific manner as described below.
  • Page 9: Select Switch Designation

    SAFE Select Switch Designation ® Assigning a Switch SAFE ® Select technology can be assigned to any open switch (2 or 3 position) Mode 1 and 2 Transmitters controlling a channel (5–9) on your transmitter. Once assigned to a switch, SAFE 1.
  • Page 10: Control Surface Direction

    Control Surface Direction Power on the transmitter and connect the battery. Use the transmitter to operate the aileron and elevator controls. View the aircraft from the rear when checking the control directions. Ailerons 1. Move the aileron stick to the left. The right aileron should move down and Aileron stick the left aileron up, which will cause the aircraft to bank left.
  • Page 11: As3X Control Direction Test (Bnf)

    AS3X Control Direction Test (BNF) This test ensures that the AS3X ® control system is functioning properly. Aircraft AS3X Reaction Assemble the aircraft and bind your transmitter to the receiver before movement performing this test. 1. Raise the throttle just above 25%, then lower the throttle to activate AS3X technology.
  • Page 12: Flying Tips And Repairs

    Flying Tips and Repairs Consult local laws and ordinances before choosing a flying location. Once on the ground leave the elevator neutral and avoid sharp turns until the plane has slowed enough to prevent scraping the wingtips. Getting Started NOTICE: If a crash is imminent, reduce the throttle and trim fully. Failure to do so Before you fly, range check the radio system.
  • Page 13: Post Flight

    Post Flight 1 Disconnect the flight battery from the ESC (Required for Safety and battery life). 5 Repair or replace all damaged parts. 2 Power OFF the transmitter. 6 Store the flight battery apart from the aircraft and monitor the battery charge. 3 Remove the flight battery from the aircraft.
  • Page 14: Float Assembly And Installation

    Float Assembly and Installation 1. Remove the screw on the bottom of the fuselage, and remove the landing gear cover. 2. Loosen the nose wheel assembly screw, and remove the nose wheel assembly from the nose wheel steering bracket. 3. Loosen the six 2mm x 10mm mounting screws from the landing gear mounting clamps.
  • Page 15: Replacement Parts, Optional Parts, Recommended Receivers (Pnp)

    Replacement Parts Recommended Receivers (PNP) Part Number Description Part Number Description EFL30051 Fuselage: Twin Otter SPMAR620 AR620 6-Channel Sport Air Receiver EFL300511 Wheels: Twin Otter Telemetry Equipped Receivers EFL300512 Battery Hatch: Twin Otter SPMAR6600T AR6600T 6-Channel Air Integrated Telemetry Receiver EFL300513 Hardware Set: Twin Otter SPMAR6270T...
  • Page 16: Ama National Model Aircraft Safety Code

    AMA National Model Aircraft Safety Code Effective January 1, 2014 A. GENERAL B. RADIO CONTROL A model aircraft is a non-human-carrying aircraft capable of sustained flight in the 1. All pilots shall avoid flying directly over unprotected people, vessels, atmosphere. It may not exceed limitations of this code and is intended exclusively vehicles or structures and shall avoid endangerment of life and property for sport, recreation, education and/or competition.
  • Page 17: Troubleshooting Guide As3X/Troubleshooting Guide

    Troubleshooting Guide AS3X Problem Possible Cause Solution Damaged propeller or spinner Replace propeller or spinner Imbalanced propeller Balance the propeller Motor vibration Replace parts or correctly align all parts and tighten fasteners as needed Oscillation Loose receiver Align and secure receiver in fuselage Loose aircraft controls Tighten or otherwise secure parts (servo, arm, linkage, horn and control surface) Worn parts...
  • Page 18: Limited Warranty

    For questions or assistance, please visit our website at www. Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone purchased (the “Product”) will be free from defects in materials and workmanship...
  • Page 19: Fcc Information

    EFL30050 Twin Otter 1.2m BNF BASIC: Horizon Hobby, LLC hereby declares that cal and electronic equipment. The separate collection and recycling...
  • Page 20 E-Flite, Plug-N-Play, Bind-N-Fly, BNF, the BNF logo, DSM, DSM2, DSMX, Spektrum AirWare, AS3X, DSM, DSM2, DSMX, SAFE, the SAFE logo, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
