Summary of Contents for Horizon Hobby UMX PT-17

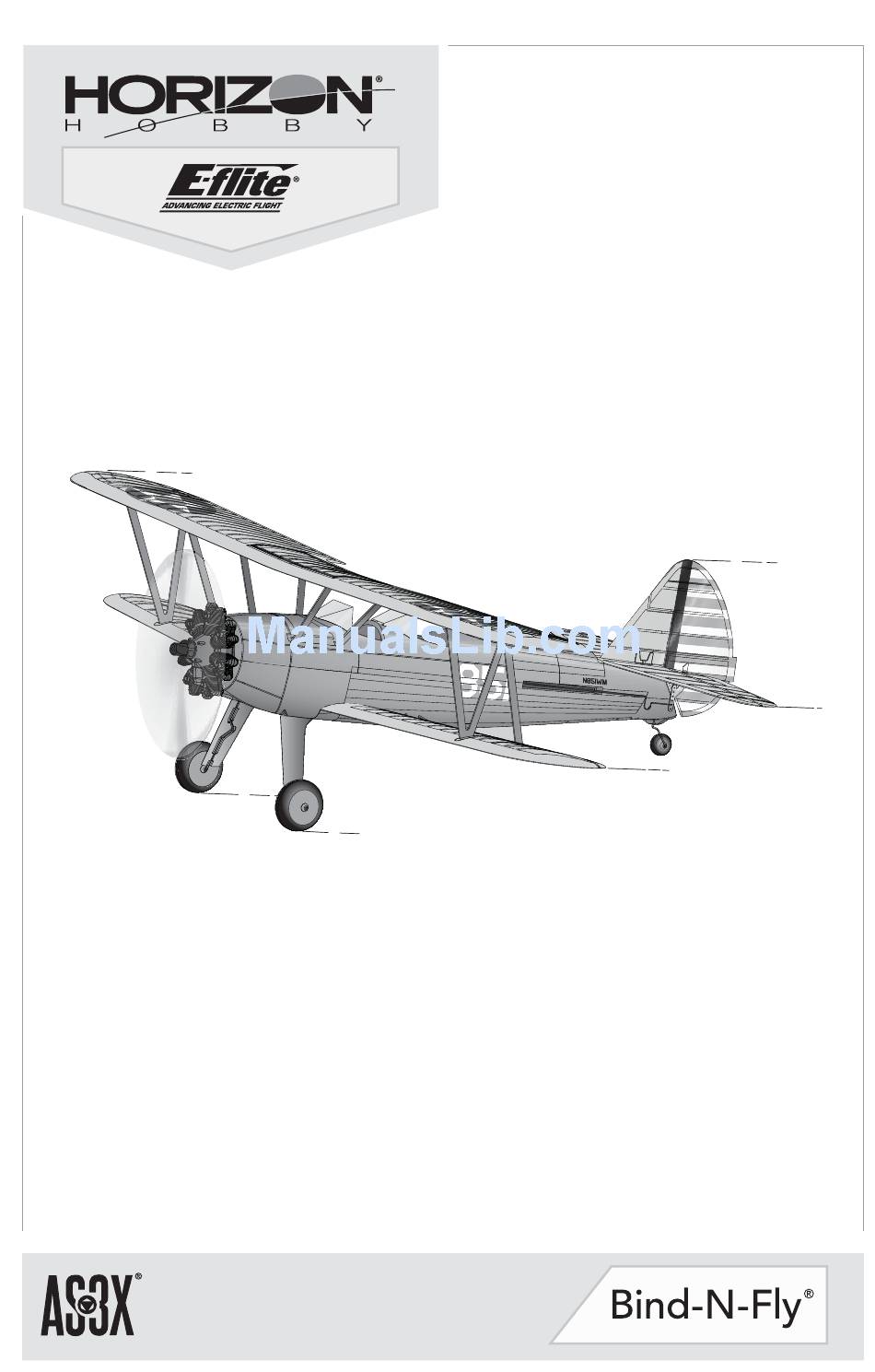

- Page 1 ™ PT-17 Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
-
Page 2: Safety Precautions And Warnings
Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury. -
Page 3: Table Of Contents
Table of Contents Charger Warnings ..........4 Post Flight Checklist ..........9 Battery Charging ............4 Power Components Service .........10 Transmitter and Receiver Binding ......5 Installing the Landing Gear ........11 Low Voltage Cutoff (LVC) ........5 Troubleshooting Guide .........12 Flight Battery Installation and ESC Arming....6 Limited Warranty ..........13 Center of Gravity (CG) ..........6 Warranty and Service Information ......15... -
Page 4: Charger Warnings
Charger Warnings The battery charger (EFLC1008) included with your • Always charge batteries away from fl ammable aircraft has been designed to safely charge the materials. Li-Po battery. • Always inspect the battery before charging. • Always disconnect the battery after charging, and CAUTION: All instructions and warnings must let the charger cool between charges. -
Page 5: Transmitter And Receiver Binding
Transmitter and Receiver Binding Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifi er) ™ code of a single specifi c transmitter. You need to ‘bind’ your chosen Spektrum DSM2/DSMX technology equipped aircraft transmitter to the receiver for proper operation. Any full range Spektrum DSM2/DSMX transmitter can bind to the DSM2/DSMX receiver. -
Page 6: Flight Battery Installation And Esc Arming
Flight Battery Installation and ESC Arming Arming the ESC also occurs after binding as previously described, but subsequent connection Lower throttle and of a fl ight battery requires the following steps. throttle trim to lowest settings. It is normal for linear servos to make noise. Noise is not an indication of a faulty servo. -
Page 7: Control Direction Tests
Control Direction Tests Traditional Control Direction Test Bind your aircraft and transmitter before doing these tests. Move the controls on the transmitter to make sure the aircraft control surfaces move correctly and in the proper direction. Make sure the tail linkages move freely and that paint or decals are not adhered to them. ®... -
Page 8: Control Centering
Control Centering Before the fi rst fl ights, or in the event of an accident, make sure the fl ight control surfaces are centered. Adjust the linkages mechanically if the control surfaces are not centered. Use of the transmitter sub-trims may not correctly center the aircraft control surfaces due to the mechanical limits of linear servos. -
Page 9: Flying Tips And Repairs
Flying Tips and Repairs We recommend fl ying your aircraft outside in calm Failure to lower the throttle NOTICE: Always conditions. Always avoid fl ying near houses, trees, stick and trim to the lowest decrease throttle wires and buildings. You should also be careful to possible positions during a at propeller strike. -
Page 10: Power Components Service
Power Components Service CAUTION: DO NOT handle propeller parts while the fl ight battery is connected. Personal injury could result. Disassembly 1. Disconnect the battery from the ESC/receiver. 2. Carefully cut free each wing strut from the bottom wing without damaging the wing. 3. -
Page 11: Installing The Landing Gear
Installing the Landing Gear To install the included landing gear: 1. Gently squeeze the gear assembly and insert the landing gear strut wire into the retaining slot of the fuselage as shown. -
Page 12: Troubleshooting Guide
Troubleshooting Guide AS3X Problem Possible Cause Solution Control surfaces not at Control surfaces may not have been Center control surfaces mechanically by neutral position when mechanically centered from factory adjusting the U-bends on control linkages transmitter controls are Aircraft was moved after the fl ight battery Disconnect and reconnect the fl... -
Page 13: Limited Warranty
What this Warranty Covers (vi) Product not compliant with applicable technical regulations. Horizon Hobby, LLC. (“Horizon”) warrants to the original purchaser that the product purchased (the “Product”) will OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON be free from defects in materials and workmanship at the MAKES NO OTHER WARRANTY OR REPRESENTATION, AND date of purchase. - Page 14 exclusive remedy shall be that Horizon will, at its option, you will be asked to provide your complete name, street either (i) service, or (ii) replace, any Product determined address, email address and phone number where you can by Horizon to be defective. Horizon reserves the right to be reached during business hours.
-
Page 15: Warranty And Service Information
Compliance Information for the European Union EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the R&TTE and EMC Directives. -
Page 16: Replacement Parts
Cabane Strut Set: Tragfl ächenstreben PT-17 montanti ala e cabane UMX PT-17 UMX PT-17 with E-fl ite UMX PT-17 m. UMX PT-17 avec AS3X BNF E-fl ite UMX PT-17 con EFLU3080 AS3X BNF AS3X BNF AS3X BNF AS6410L DSMX Spektrum AS6410L... -
Page 17: Optional Parts And Accessories
– Optional Parts and Accessories – – Optionale Bauteile und Zubehörteile – – Pièces optionnelles et accessoires – – Pezzi opzionali e accessori – Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice Hook and Loop Set Parkzone: Klettband Ultras Micros - Bande Set fascette a strappo PKZ1039... - Page 18 © 2015 Horizon Hobby, LLC. E-fl ite, AS3X, UMX, DSM, DSM2, DSMX, ModelMatch, Bind-N-Fly, Celectra and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
