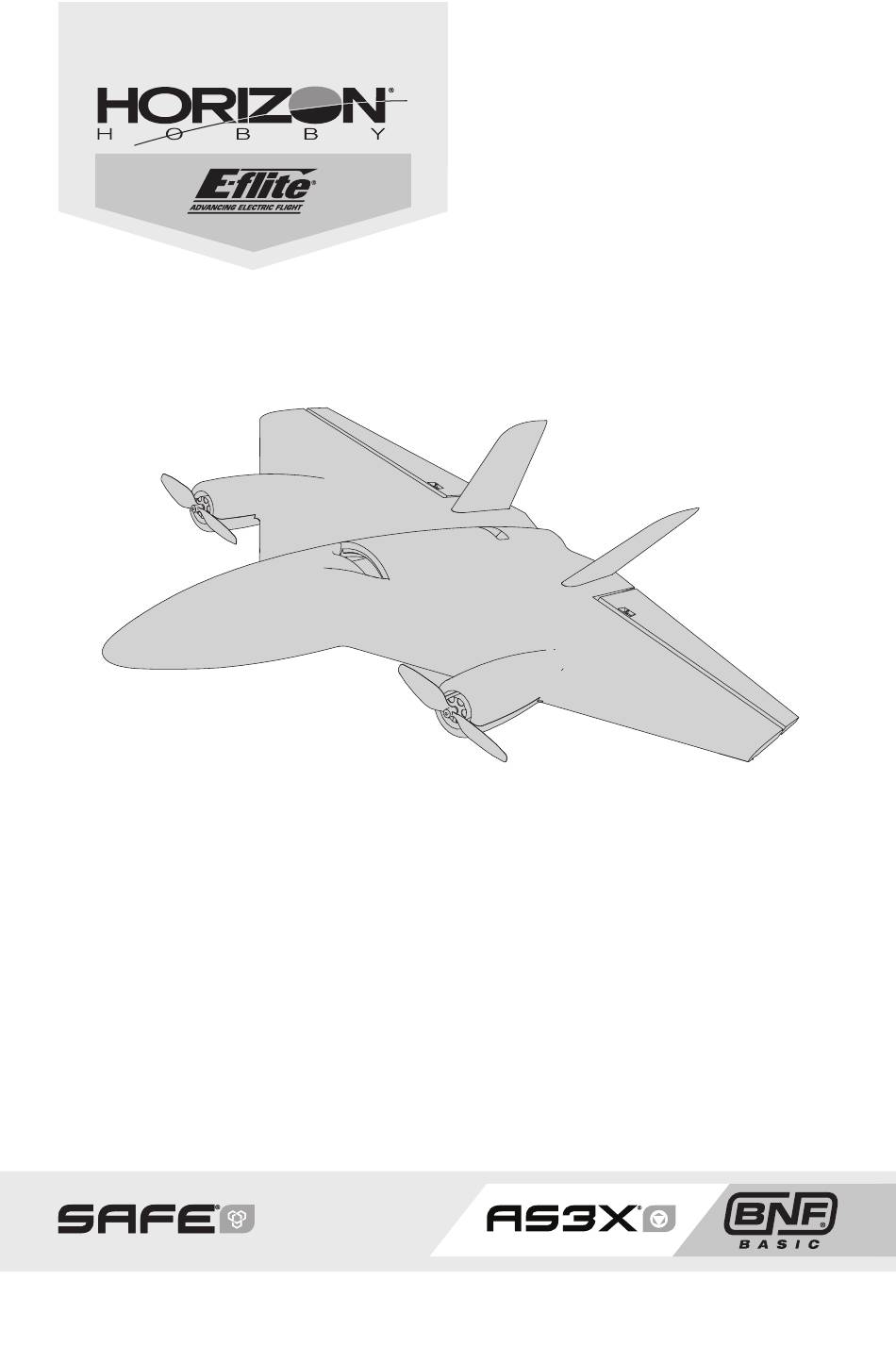

- Page 1 ™ ™ Ultrix Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni SAFE ® Select Technology, Optional Flight Envelope Protection...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product. Meaning of Special Language... -
Page 3: Table Of Contents
Box Contents Table of Contents Prefl ight Checklist ............. 4 Post Flight Checklist ............9 Transmitter Setup ............. 4 Service of Power Components .......... 9 Install the Vertical Stabilizers..........4 Replacement Parts List ............. 9 Adjusting the Center of Gravity (CG) ........5 Recommended Parts List .......... -
Page 4: Prefl Ight Checklist
Prefl ight Checklist 1 Remove and inspect contents. 8 Make sure all linkages move freely. 2 Read the instruction manual thoroughly. 9 Perform the control direction test. 3 Charge the fl ight battery. 10 Adjust the fl ight controls and transmitter as needed. 4 Program your transmitter. -
Page 5: Adjusting The Center Of Gravity (Cg)
Adjusting the Center of Gravity (CG) 175mm The CG location is back from the nose, which was determined with the recommended battery at the front of the battery tray. 175mm Transmitter and Receiver Binding DSM2 ® Binding is the process of linking your transmitter and receiver. You need to ‘bind’ your chosen Spektrum DSMX ®... -
Page 6: Arming The Esc
Arming the ESC Arming the ESC also occurs after binding as previously described, but subsequent connection of a fl ight battery requires the steps below. Lower throttle and throttle trim Install the fl ight battery and Keep plane immobile, to lowest settings. connect it to the ESC. -
Page 7: Control Direction Test
Control Direction Test Properly bind your aircraft and transmitter before doing these tests. Verify the linkages move freely. Switch ON the transmitter and connect the battery. Use the transmitter to operate the aileron and elevator controls. View the aircraft from the rear when checking the control directions. -
Page 8: Safe® Technology
® SAFE Technology The Ulrix has two fl ight modes on Channel 5, SAFE and AS3X. through a turn. To fl y smoothly with SAFE, avoid making When fl ying in SAFE mode, the aircraft will return to level frequent control changes and don’t attempt to correct for fl... -
Page 9: Post Flight Checklist
Post Flight Checklist 1 Disconnect the fl ight battery from the ESC. 5 Repair or replace all damaged parts. 2 Power OFF the transmitter. Store the fl ight battery apart from the aircraft and monitor the battery charge. 3 Remove the fl ight battery from the aircraft. Make note of the fl... -
Page 10: Recommended Parts List
Recommended Parts List Part # Description EFLB2801S25 500mAh 1S 25C Li-Po (EFLB5001S25) SPMXC1040 S44 Micro 4-port AC/DC 1S LiPo Smart Charger Optional Parts Part # Description EFLU6455 LED Set: Ultrix Receiver Wiring Diagram Reference the following diagram for all wiring connections to the receiver. -
Page 11: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Reset controls with throttle stick and throttle Throttle stick and/or throttle trim too high trim at lowest setting Aircraft will not respond to throttle but responds to other Throttle channel is reversed Reverse throttle channel on transmitter controls Open fuselage and make sure motor is Motor disconnected from receiver... -
Page 12: Limited Warranty
What this Warranty Covers please visit our website at www.horizonhobby.com, submit a Horizon Hobby, LLC, (Horizon) warrants to the original purchaser Product Support Inquiry, or call the toll free telephone number that the product purchased (the “Product”) will be free from referenced in the Warranty and Service Contact Information defects in materials and workmanship at the date of purchase. -
Page 13: Warranty And Service Contact Information
Hanskampring 9 European Union D 22885 Barsbüttel, Germany Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100 FCC Information Contains FCC ID: BRWWACO1T This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 14: Compliance Information For The European Union
EU Compliance Statement: Ultrix BNF Basic SAFE (EFLU6450) Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the RED and EMC Directive. A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance. - Page 15 E-fl ite, UMX, SAFE, the SAFE logo, AS3X, DSM, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, ModelMatch, Celectra, Delta-V, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
