Pins Introduction

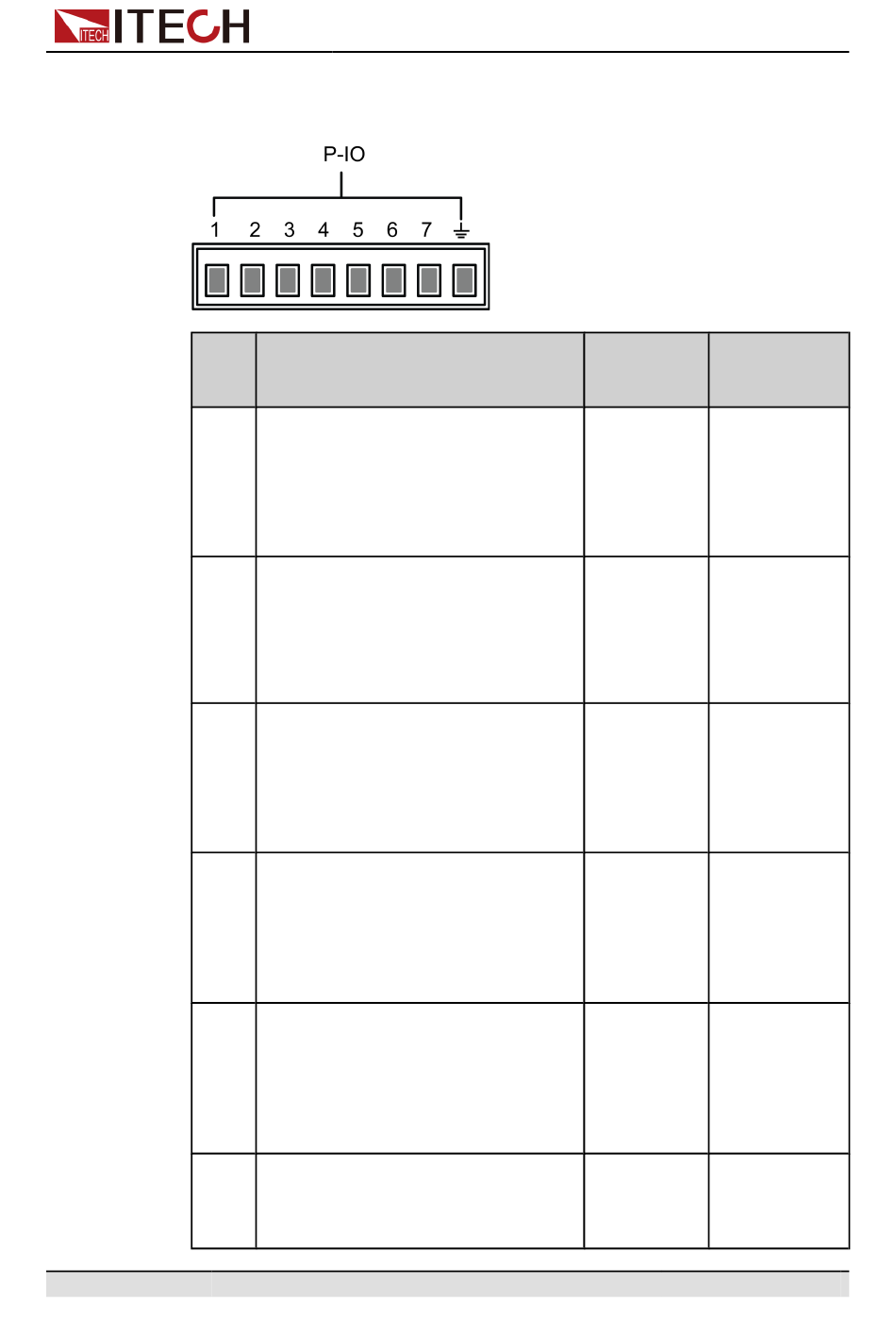

The appearance of the terminals are shown below.
Pin
1
2
3
4
5
6
Description
Corresponds to the function set in the
System→Digital Port→IO–1. Ps-
Clear, Not-Invert menu item. For pa-
rameter introduction, see
1. Ps-Clear, Not-Invert.
Corresponds to the function set in the
System→Digital Port→IO–2. Ps,
Not-Invert menu item. For parameter
introduction, see 5.11.2 IO–2. Ps,
Not-Invert.
Corresponds to the function set in the
System→Digital Port→IO–3. Off-
Status, Not-Invert menu item. For
parameter introduction, see
IO–3. Off-Status, Not-Invert.
Corresponds to the function set in the
System→Digital Port→IO–4. Ext-
Trig, Not-Invert menu item. For pa-
rameter introduction, see
4. Ext-Trig, Not-Invert.
Corresponds to the function set in the
System→Digital Port→IO–5. INH-
Living, Not-Invert menu item. For
parameter introduction, see
IO–5. INH-Living, Not-Invert.
Corresponds to the function set in the
System→Digital Port→IO–6. Sync-
On, Not-Invert menu item. For
Copyright © Itech Electronic Co., Ltd.
Properties
(Default
function)
Pulse signal
5.11.1 IO–
Level signal
Level signal
5.11.3
Pulse signal
5.11.4 IO–
Pulse signal
5.11.5
Pulse signal
Basic Operation
Properties
(General I/O
function)
Level or PWM
signal
Level or PWM
signal
Level or PWM
signal
Level or PWM
signal
Level or PWM
signal
Level or PWM
signal
